| Model Number: | HH-UFW-0 |
| MOQ: | 3 kgs |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 10 tons per 30 days |
Material: 304, 304L, 316, 316L, 310S

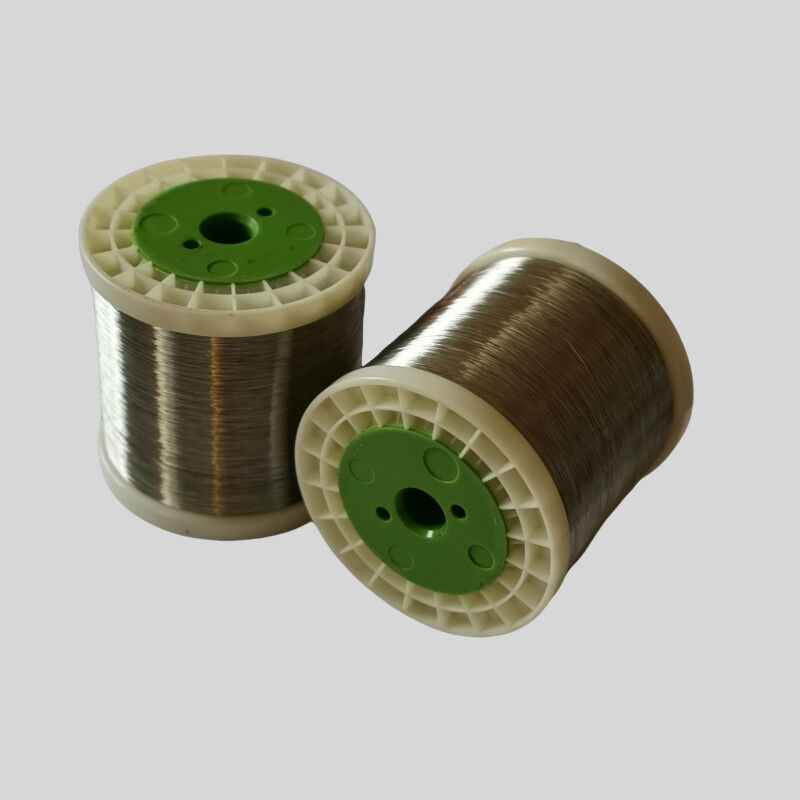

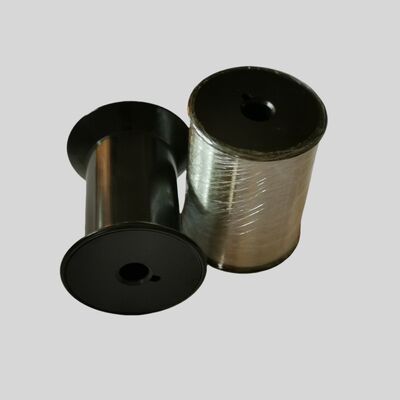

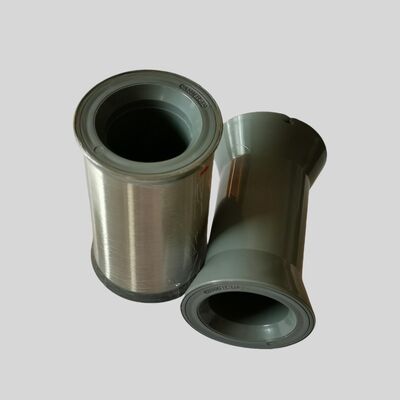

Spool size: KK80, KK125, HK115, PH-1, HK100(1), HK100(2), KK85*90
Fine wire diameter: 0.018-0.15MM
Strength: 380 -850
Surface treatment: Ba, 2b, No.1, No.4, 8K, Hl, Mirror Finish
Application: Textile products, Filters, Cleaning products, Aerospace, Chemical industry, Medical treatment, Electronic wires, etc.
Stainless steel ultra fine wire involves softening materials by subjecting them to a heat cycle. This process relieves internal stress and induces flexibility, improving cold working properties.
| Material | Wire Dia(mm) | EL(%) | Strength(map) | SWG | AWG | Inch | Allow difference(mm) |
|---|---|---|---|---|---|---|---|
| 316L | 0.035 | ≥22 | 570-800 | AWG47 | 0.00138 | +0.002 -0.001 | |
| 316L | 0.04 | ≥23 | 550-800 | SWG48 | AWG46 | 0.00158 | +0.002 -0.002 |
| 316L | 0.05 | ≥24 | 380-850 | SWG47 | AWG44 | 0.00197 | ±0.002 |
| HK100(1) | HK100(2) | HK115 | K90*100 | PL-1 | KK80 | KK125 | |
|---|---|---|---|---|---|---|---|
| D1 | 100 | 100 | 115 | 90 | 80 | 80 | 125 |
| D2 | 74 | 74 | 88 | 60 | 60 | 53 | 80 |
| D3 | 25 | 59 | 25 | 20 | 20 | 20 | 26 |
| L1 | 160 | 160 | 140 | 120 | 120 | 100 | 160 |
| L2 | 85 | 90 | 80 | 100 | 100 | 70 | 90 |
| Weight(g) | 274 | 350 | 272 | 100 | 76 | 82 | 337 |
Stainless steel fine wire is widely used in:
