| Model Number: | HH-TITA |
| MOQ: | ONE SPOOL |
| Price: | contact with us |
| Payment Terms: | L/C, T/T, Western Union, Alipay |
| Supply Ability: | 5000 spools per 30 days |

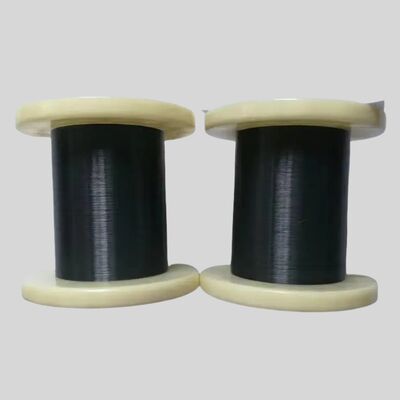

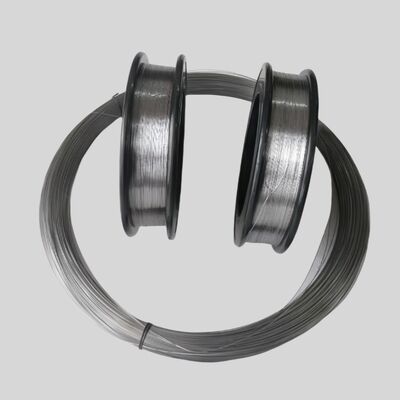

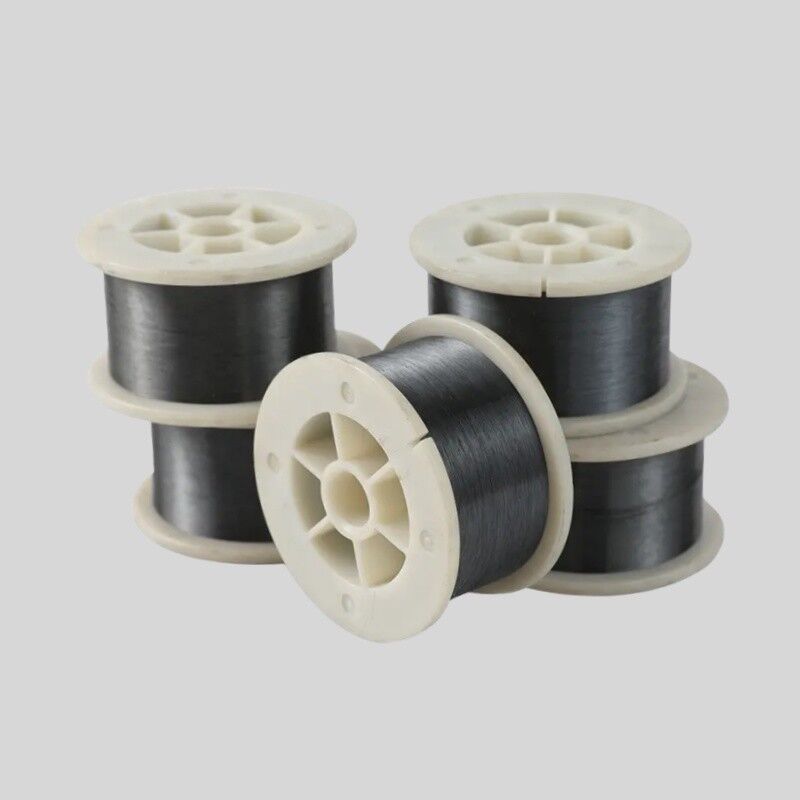

| Name | Titanium Wire |
| Grade | TA1, TA2, TA3, TA4, TA10, TA15, TA17, GR1, GR2, GR3, GR4, GR5, GR7, GR9, GR11, GR12 |
| Size | Dia.: 0.1mm-1.0mm (0.02", tolerance: +/-0.05mm, +/-0.002") Spool diameter: around 300mm (12") |
| Main Titanium Alloy Grades | Performance Parameter | Product Specifications |
|---|---|---|
| Chinese standard: TA1 American standard: GR1 Russian standards: BT1-00 |
615 241 |
Wire (φ1.2~8.0mm)×L Plate/Strip sheets: (0.6-6.0mm)×(600-1200mm)×L Plate: (6.0-200mm)×(600-2200mm)×L Bar (φ35~450mm)×L(870mm~6000mm) Pipe OD:6-2500mm, (3/8"-100") ×T:0.3-150mm,(SCH10-XXS)×L:1000mm~12000mm Forging Dises general: D≤2000mm,H≤400mm Shaft: (φ80~600mm)×L≤6000mm Other forgings: spherical head, aircraft landing gear, impeller, irregular flange, etc |
| TA7 GR6 BT5-1 |
885 830 |
|
| TA11 Ti-811 Ti-811 |
960 905 |
|
| TA15 BT2O |
1010 865 |
|
| TA18 GR9 OT4-1B |
715 565 |
|
| TB3 Ti-8823 BT32 |
1180 1000 |
|
| TB5 Ti-15333 BT35 |
1060 920 |
|
| TC4 GR5 BT6 |
1015 945 |
|
| TC4ELI GR23 BT6C |
985 890 |
|
| TC6 BT3-1 |
1000 890 |
|
| TC8 BT8 |
1150 1040 |
|
| TC11 BT9 |
1045 940 |
|
| TC18 BT22 |
1230 1010 |
The main standards: GJB2218-1994, GJB2505-1995, GJB494-1988, GJB1538-1992, ASTM B265-2005, ASTM B381-2005 |
