0.025mm-0.08mm Precision Micro Stainless Steel Wire For Electronic Appliances

Model Number:	HH-WIRE0.05
MOQ:	one spool
Price:	contact with us
Payment Terms:	L/C, T/T, Western Union, Alipay
Supply Ability:	3000 spool PER 30 DAYS

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001-2015

Name:

Precision Micro Stainless Steel Wire

Wire Diameter:

0.025mm-0.08mm

Finished:

Electrolysis Bright, Bright, Matt.

HS Code:

7223000000

Characteristic:

High Temperature Resistance And Corrosion Resista

Spool Size:

KK80, K60, PL-1, HK100(1), HK100(2), HK115

Packaging Details:

10 spool PER carton

Supply Ability:

3000 spool PER 30 DAYS

Highlight:

0.025mm Micro Stainless Steel Wire

0.08mm Micro Stainless Steel Wire

Micro Ultra Fine Wire

Product Description

0.025-0.08mm Precision Micro Stainless Steel Wire

Stainless Steel Microwire Woven Protective Clothing Anti-Static Anti-Cutting Gloves Steel Yarns Filament

Quick Details

Material grade: 304, 304L, 316, 316L, etc
Wire diameter: 0.025mm - 0.08mm
Condition: soft wire, semi-soft wire, hard wire
Surface: electrolysis bright, bright, matt
Spool type: KK80, K60, PL-1, HK100(1), HK100(2), HK115

Technical Specifications

Wire Diameter Tolerance

Wire Diameter (mm)	Allowed Difference (mm)	Max. Diameter Difference (mm)
0.020-0.049	+0.002 -0.001	0.001
0.050-0.074	±0.002	0.002
0.075-0.089	±0.002	0.002

Strength and Elongation for 316L Material

Material	Wire Dia(mm)	EL(%)	Strength(map)	SWG	AWG	Inch	Allow difference(mm)
316L	0.035	≥22	570-800		AWG47	0.00138	+0.002 -0.001
316L	0.04	≥23	550-800	SWG48	AWG46	0.00158	+0.002 -0.002
316L	0.05	≥24	380-850	SWG47	AWG44	0.00197	±0.002

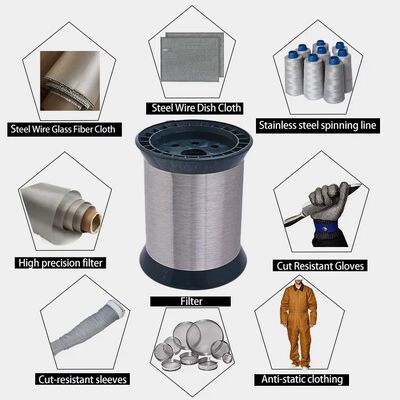

Applications

Tie wire, pins, lashing, forming wire, filters, gaskets, elevators, safety wire, shaped and flat wire
Conveyors, jewelry, springs, brush welding, electrical, wire line, craft, bicycle fittings
Kitchen and sanitation tools, goods shelf, pet cages, gill racks, decorative handles and baskets
Food and medical machinery accessories and many more applications

Advantages

Excellent thermal and electrical conductivity
High dimensional accuracy with good flexibility and tensile strength
Superior corrosion resistance with high temperature and oxidation resistance
Effective radiation protection, biocompatibility, anti-magnetic and electronic shielding performance
Wide applications in textile, medical, electronic appliances, filtration, machinery, precision instruments, chemical industry, and aerospace
