| Model Number: | HH-SSKWM |
| MOQ: | one roll |
| Price: | contact with me to get the lowest price |
| Payment Terms: | L/C,T/T,Western Union,MoneyGram |
| Supply Ability: | 10000 rolls per 30 days |

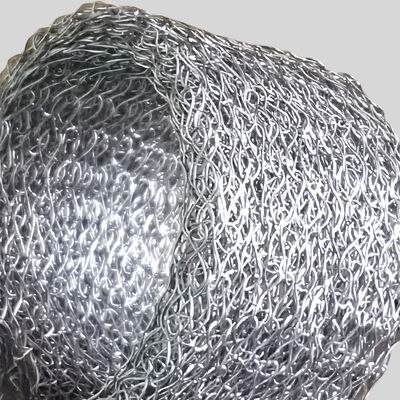

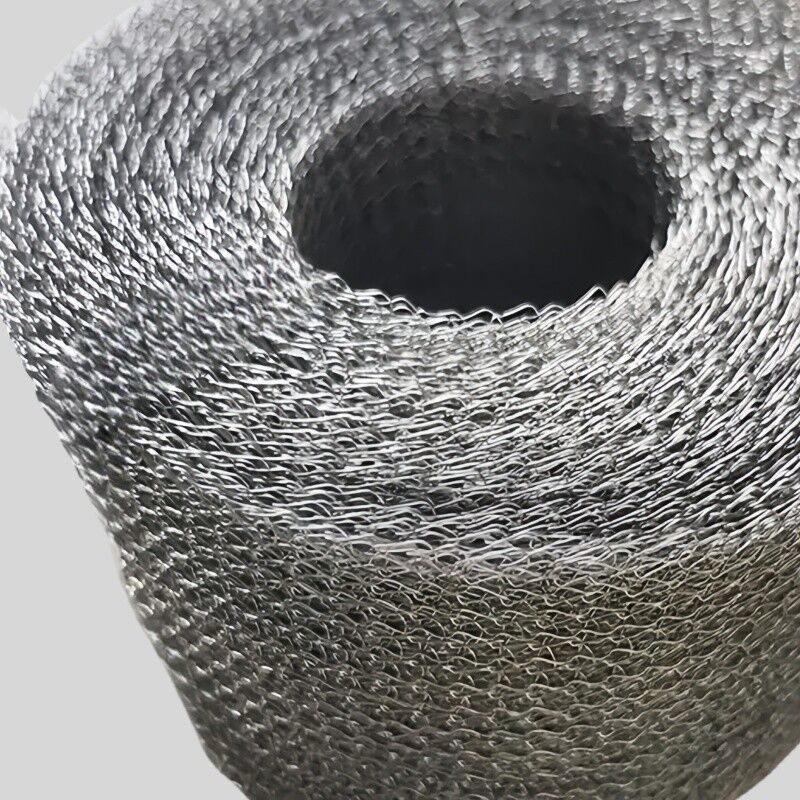

Knitted wire mesh, also known as knitted wire, knitted mesh, knotted mesh, knotted wire, knotted wire mesh, chain mesh, wire net, wire netting, silt mesh, mesh stocking, wire mesh stocking, sock mesh, stretchy mesh, holey mesh, mesh ribbon, chicken wire, metal bag, knitted copper, interwoven metal, interlocked wire, wire protector, or wine bottle mesh.
| Material | Stainless steel (AISI201, 202, 301, 302, 3041, 304L, 321/316L) |
|---|---|
| Wire Diameter | Common diameter: 0.2-0.28mm |
| Aperature | All can be customized |
| Mesh Width | 40mm, 80mm, 100mm, 150mm, 200mm, 300mm, 400mm etc. |
| Surface Condition | Flat Type mesh, Corrugated Mesh surface or twill |
| Woven Type | Single wire, double wire, multi wire, etc. |
| Wire Strand | Single Wire, double strands, multiple strands |
| Type | Holes No. & Mesh Width | Wire dia. (MM) | Material | Weight (kg/sqm) |
|---|---|---|---|---|
| Standard | 40-100 | 0.1*0.4 | 1Cr18Ni9 | 1/0.5 |
| Standard | 60-80 | 0.1*0.4 | 1Cr18Ni9 | 1/0.5 |
| Standard | 140-400 | 0.1*0.4 | 1Cr18Ni9 | 1/0.5 |
| Standard | 40-100 | 0.27 | Lead wire with Zn-coating | 1/0.7 |
| Standard | 40-100 | 0.1*0.4 | Copper wire | 1/0.7 |
| High efficiency | 90-100 | 0.1*0.3 | SS wire | 1/0.6 |
| High efficiency | 80-100 | 0.1*0.3 | SS wire | 1/0.6 |
| High efficiency | 90-150 | 0.1*0.3 | SS wire | 1/0.6 |
| High efficiency | 200-400 | 0.1*0.3 | SS wire | 1/0.6 |
| Great penetration | 20-160 | 0.1*0.4 | SS wire | 1/0.4 |
| Great penetration | 30-150 | 0.1*0.4 | SS wire | 1/0.4 |
| Great penetration | 70-400 | 0.1*0.4 | SS wire | 1/0.4 |
For example: Model 200-400 indicates 200 mesh holes in the width of 400mm
