| Model Number: | HH-KWM-0 |
| MOQ: | 10 square meters |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 6000 square meters per 20 days |
Our knitted wire meshes have diverse applications across industries including environmental and process engineering, vandalism protection in public transport systems, and automotive applications. We develop custom solutions for both individual and series production, precisely tailored to customer requirements.

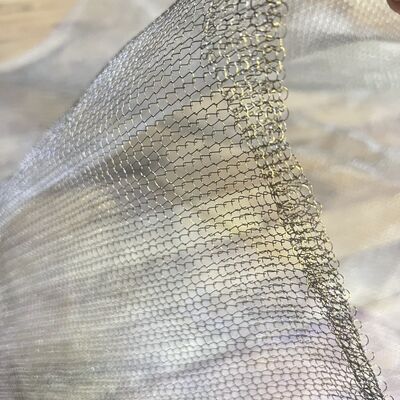

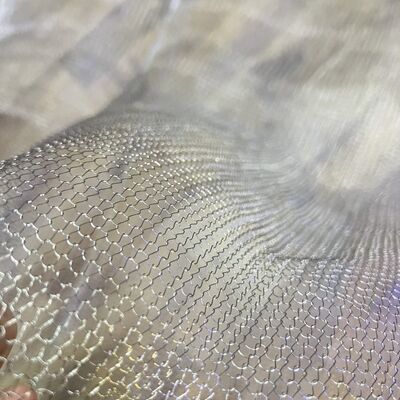

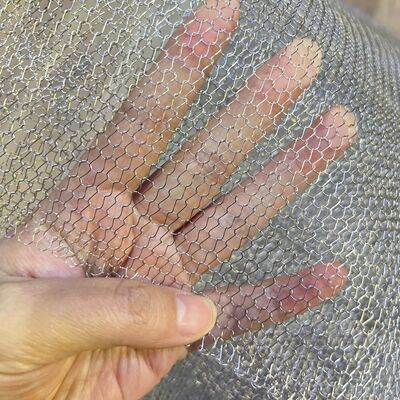

The three-dimensional knitted wire mesh offers exceptional stretchability and resilience. Its strength and flexibility allow it to conform to irregular shapes and curves. The most common specification features 60 density with 0.011" type 304 stainless steel wire, available in various roll widths from 12" to 48".
| Diameter | Density | Weight/Roll | Ft²/lb | Stocked Roll Sizes |
|---|---|---|---|---|
| .011" | 60 | ~50lbs | 13* | 12",18", 20", 24", 26", 30", 36", 38", 42", 48" |
| .0095" | 60 | ~50lbs | 18* | 24", 30", 36", 42" |
| .008" | 60 | ~50lbs | 24* | 30", 42" |
304 Stainless operating temperature range: < 1200° (900°F continuous)
| Diameter | Density | Weight/Roll | Ft²/lb | Stocked Roll Sizes |
|---|---|---|---|---|
| .011" | 60 | ~50lbs | 13* | 24", 30", 36", 42" |
321 Stainless operating temperature range: < 1500° (1200°F continuous)
| Diameter | Density | Weight/Roll | Ft²/lb | Stocked Roll Sizes |
|---|---|---|---|---|
| .011" | 60 | ~50lbs | 13* | 30", 36", 42" |
Inconel 601 operating temperature range: < 2300° (1800°F continuous)
