| Model Number: | HH-FINWIRE |
| MOQ: | ONE SPOOL |
| Price: | contact with us |
| Payment Terms: | L/C, T/T, Western Union, Alipay |
| Supply Ability: | 5000 spools per 30 days |
Stainless Steel Ultra Fine Wire are thin, strong, and resistant to corrosion. They are made from stainless steel, which is a combination of iron, chromium, nickel, and other elements. Therefore, these wires are tough and can resist rust and staining effectively.
Additionally, Stainless Steel Ultra Fine Wire are called fine wires because of their thin diameter. This unique feature makes them suitable for a variety of applications, including electronics and textile industries.

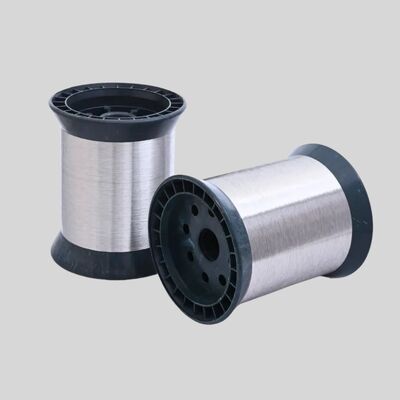

| Name: | 0.025mm Ultra fine stainless steel wire - 304L |
|---|---|
| Grade: | AISI 304L |
| Size(mm): | 0.025mm |
| Size(inch): | 0.00098" inch |
| Size(micron): | 25 microns |
| Diameter tolerance: | ±0.001mm |
| Tensile Strength(N / mm2): | 686-980 |
| Elongation(%): | 20-30% |
| Weight(g): | 250-600g or customized |
| Weight(lb): | 0.55-1.32lb |
| Temper: | Annealed and Soft |
| Spool type: | Customized |
| Application: | Spinning, weaving, knitting and braiding |
| Package: | Spool+ stretch film+carton+pallet |
| AISI Material | C | Si | Mn | P | S | Ni | Cr | Mo | Cu | Ti |
|---|---|---|---|---|---|---|---|---|---|---|
| 201 | ≤0.15 | ≤0.75 | 5.5~7.5 | ≤0.06 | ≤0.03 | 3.5~5.5 | 16~18 | - | - | - |
| 304 | <0.08 | <1.0 | <2.0 | <0.035 | <0.03 | 8~10 | 17~19 | - | - | - |
| 304L | <0.03 | <1.0 | <2.0 | <0.04 | <0.03 | 9~13 | 18~20 | - | - | - |
| 304HC | <0.06 | <1.0 | 1.2-1.8 | <0.035 | <0.03 | 8~11 | 17~19 | - | 2.0-3.0 | - |
| 316 | <0.08 | <1.0 | <2.0 | <0.04 | <0.03 | 10~14 | 16~18 | 2.0~3.0 | - | - |
| 316L | <0.03 | <1.0 | <2.0 | <0.04 | <0.03 | 12~15 | 16~18 | 2.0~3.0 | - | - |
| 310S | <0.08 | <1.5 | <2.0 | <0.04 | <0.03 | 19~22 | 24~26 | - | - | - |
| 321 | <0.08 | <1.0 | <2.0 | <0.045 | <0.03 | 9~13 | 17~19 | - | - | >0.035 |
| 301 | <0.15 | <1.0 | <2.0 | <0.04 | <0.03 | >7 | 16~18 | - | - | - |
| 302 | <0.15 | <1.0 | <2.0 | <0.04 | <0.03 | >8 | 17~19 | - | - | - |
| Wire diameter(mm) | Tolerance(mm) | Maximum diameter deviation(mm) |
|---|---|---|
| 0.020-0.049 | +0.002 -0.001 | 0.001 |
| 0.050-0.074 | ±0.002 | 0.002 |
| 0.075-0.089 | ±0.002 | 0.002 |
| 0.090-0.109 | +0.003 -0.002 | 0.002 |
| 0.110-0.169 | ±0.003 | 0.003 |
| 0.170-0.184 | ±0.004 | 0.004 |
| 0.185-0.199 | ±0.004 | 0.004 |
| 0.200-0.299 | ±0.005 | 0.005 |
| 0.300-0.310 | ±0.006 | 0.006 |
| 0.320-0.499 | ±0.006 | 0.006 |
