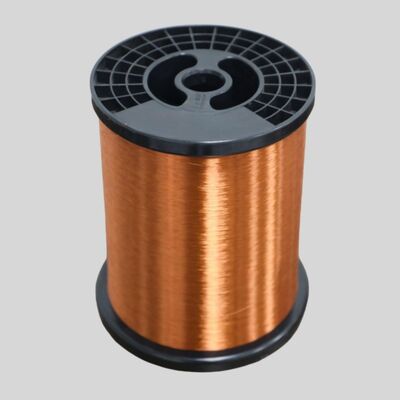

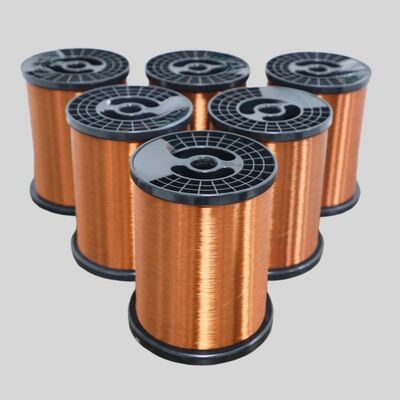

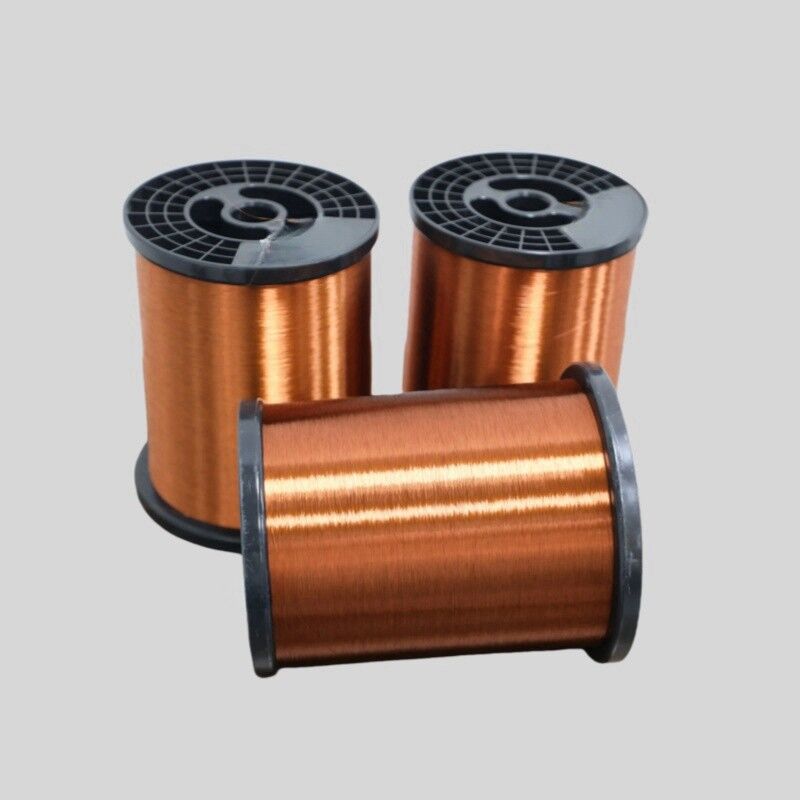

Polyester Imide Enameled Copper Wire Insulated EIW/180 Round Wire

Model Number:	HH-STRIP
MOQ:	1 spools
Price:	contact with us
Payment Terms:	L/C, T/T, Western Union, Alipay
Supply Ability:	1000 ROLLS PER 30 DAYS

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001-2015

Name:

Polyester-Imide Enameled Copper Wire

Class:

EIW/180

Size Range:

0.025-0.06mm

Cut Through Temperature:

300℃

HS Code:

854411

Shape:

Round Wire

Feature:

Easy To Be Dyed, Good Elongation And Coiling

Wire Type:

Insulated

Packaging Details:

PL4/PT10/PT15/PT25/PT60/PT200(Spool) Coil in Carton with Wooden Pallet or Wooden Cases.

Supply Ability:

1000 ROLLS PER 30 DAYS

Highlight:

Polyester Imide Enameled Copper Wire

insulated enameled copper wire

EIW/180 super enamelled copper wire

Product Description

Polyester Imide Enameled Copper Wire Insulated EIW/180

Polyester-Imide Enameled Copper Wire

Quick Details

Polyester-imide Enameled Copper Wire Class 180: EIW/180
Film Thickness: -2: Thin, -1: Thick, -0: Over Thick
Size Range: 0.025-0.06mm AWG: 21#-50#
Thermal Level Code: H
Cut Through Temperature: 300℃
Heat Shock: 200℃
Reference Standard: IEC 60317-8, NEMA MW30-C, JIS C3202

Product Main Features

Excellent resistance to heat shock
Suitable for high-speed winding
Good thermostability under 180ºC working environment
Best price-performance ratio among high temperature resistance wires
Good chemical resistance and scuff resistance

Description

Polyester-Imide Enameled Copper Wire features double-layer insulation with a Polyesterimide or Modified Polyester base layer covered by Polyamideimide. This combination enhances insulation characteristics to deliver superior physical properties, excellent insulation performance, and outstanding resistance to chemicals and refrigerants.

Specifications

Conductor [mm]	Bare wire diameter Tolerance	Minimum film [mm]	Overall diameter [mm]	Breakdown Voltage Min[V]	Conductor resistance [Ω/m,20℃]	Elongation Min[%]
0.025	±0.001	0.003	0.031	180	38.118	10
0.03	±0.001	0.004	0.038	228	26.103	12
0.035	±0.001	0.004	0.043	270	18.989	12
0.04	±0.001	0.005	0.049	300	14.433	14
0.05	±0.001	0.005	0.060	360	11.339	16
0.055	±0.001	0.006	0.066	390	9.143	16
0.060	±0.001	0.006	0.073	450	7.528	18

Applications

Winding wire of motor
Winding wire of transformer
Winding coil of household appliance
Winding wire of electric instrument
Winding wire of electric appliance
