Compressed Knitted Wire Mesh SS400 SS304 Inconel 600 Mesh For Marine Pad Construction

Compressed Knitted Wire Mesh SS400 SS304 Inconel 600 Mesh For Marine Pad Construction

Model Number: HH-PAD MESH
MOQ: ONE ROLL
Price: Contact me to get lowest price
Payment Terms: L/C,T/T,Western Union,MoneyGram
Supply Ability: 10000 rolls per 30 days
Detail Information
Place of Origin:
CHINA
Certification:
ISO9001-2015
Mesh Type:
Knitted Wire Mesh
Application:
Marine Pad Construction
Yield Ft:
12-26
Temperature Range °F:
1000-2300
Material:
SS400, SS304, Inconel
Technique:
Woven, Compressed Knitted
Single Package:
15x15x25cm
Factory:
More Than 20 Years
Packaging Details:
roll with carton, then wooden pallet
Supply Ability:
10000 rolls per 30 days
Highlight:

knitted wire mesh ss400

,

Inconel 600 Mesh

,

Knitted Wire Mesh SS304

Product Description
Knitted Wire Mesh SS400 SS304 Inconel For Marine Pad Construction
High-quality knitted wire mesh specifically designed for marine pad construction applications, offering superior durability and performance in harsh environments.
Quick Details
  • Wire sizes: 0.008" and 0.011"
  • Roll sizes of 6" to 42" wide (30" and 42" width in-stock)
  • Available in flat or crimped (corrugated) configurations
  • Common material options:
    • 304 Stainless Steel - For most applications up to 1200°F
    • 430 Stainless Steel - More economical in applications up to 1000°F
    • Inconel 600 - For high-temperature applications up to 2300°F

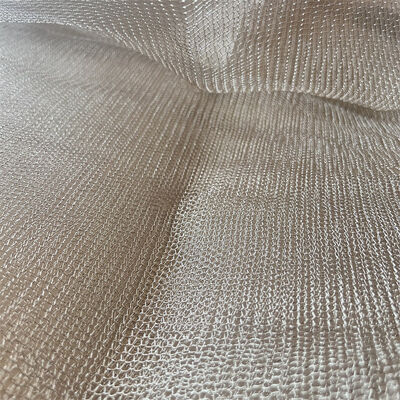

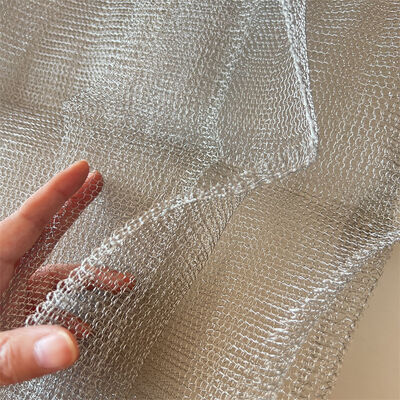

About Knitted Wire Mesh
Knitted wire mesh is manufactured using specialized knitting machines similar to those used for textiles. The resulting mesh features interconnecting loops in a structure resembling a long knit sock. We offer various configurations including multi-filament, co-knit, and multi-strand knitted wire meshes.
Technical Specifications
Alloy Temperature Range °F Wire Diameter Yield Ft Density lb/ft² Width
430 S.S. Up to 1000 .008" 60 26 1" - 43"
.011" 60 13
304 S.S. Up to 1200 .008" 60 24 1" - 43"
.0095" 60 18
.011" 60 13
Inconel Up to 2300 .008" 60 22 1" - 43"
.011" 60 12
Key Features
  • High strength construction
  • Excellent corrosion and rust resistance
  • Superior acid and alkali resistance
  • High temperature resistance
  • Soft surface that won't damage mechanical parts
  • Durable with long service life
  • Effective shielding performance
  • High filtration efficiency
  • Excellent cleaning capacity
