Stainless Steel Knitted Mesh SS309 SS304 Wire Mesh Manufacturers For Insulating Blankets

Model Number:	HH-INSULATION MESH
MOQ:	1 roll
Price:	contact with me to get lowest price
Payment Terms:	L/C,T/T,Western Union,MoneyGram
Supply Ability:	10000 rolls per 30 days

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001-2015

Name:

Stainless Steel Knitted Mesh

Material:

SS304,309

Openings/inch:

Mesh Width:

12", 18", 24", 30", Or 42"

Install Part:

Lacing Anchor, Self Locking Washer, Hooks

Factory:

HUIHAO HARDWARE MESH

Sample:

Free If It Is In Stock

Advantage:

Wildy Applications

Packaging Details:

roll + carton or customized package

Supply Ability:

10000 rolls per 30 days

Highlight:

Stainless Steel Knitted Mesh SS309

Stainless Steel Knitted Mesh Manufacturers

SS304 Wire Mesh Manufacturers

Product Description

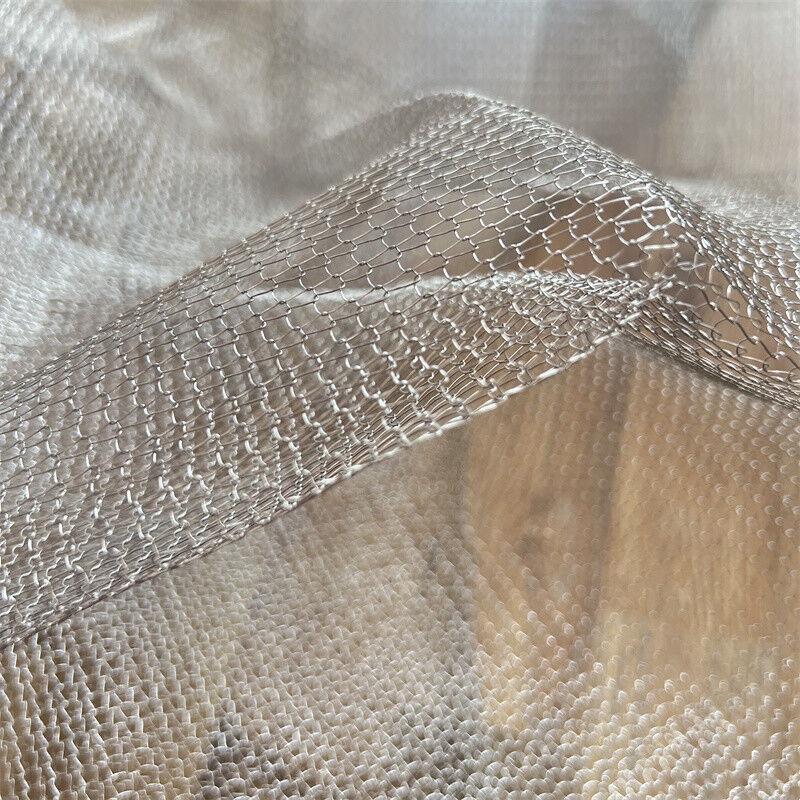

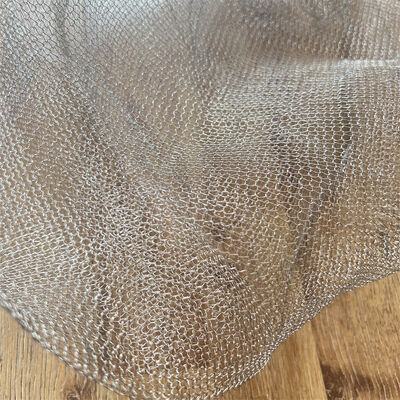

SS304 Stainless Steel Knitted Wire Mesh For Insulating Blankets

Quick Details of SS Knitted Mesh

The common wire diameters of knitted mesh used for insulating blankets are .008″, .0095″, and .011″. For applications requiring greater strength due to frequent removal (such as turbines or stress relieving blankets), .011" diameter is recommended. For less frequent removal, .008″ is sufficient. In high-temperature environments like furnaces, the .011″ diameter helps minimize weakening from oxidation or furnace atmosphere conditions.

The standard density is 60 openings per inch, providing an optimal balance between economy and performance. A 76 density option is also available. Knitted mesh is tubular (double-ply) in construction and typically cut open by the user for installation as single ply.

Available widths range from 1″ to 43″ (two-ply stocking), with 12″, 18″, 24″, 30″, and 42″ being the most commonly used sizes.

Description of SS Knitted Mesh

SS knitted mesh can be fabricated from various ductile metals, most commonly 304SS. For corrosive environments, Monel and 309SS are also available. Metal-synthetic composite versions can be produced when required.

Specification of SS Knitted Mesh

Alloy	Temperature Range	Wire Diameter	Per Sq Ft 1-Ply Flat	Per Lb 2-Ply Flat
SS304	900°F Continuous 1200°F Intermittent	0.011"	13	6.5
SS304	900°F Continuous 1200°F Intermittent		17	8.5
SS304	900°F Continuous 1200°F Intermittent		24	12
SS304	900°F Continuous 1200°F Intermittent		39	19.5
SS309	1650°F
SS310	1850°F
SS321	1200°F Continuous 1500°F Intermittent		13	6.5
SS321	1200°F Continuous 1500°F Intermittent		17	8.5
INCONEL600/601	2000°F		11.8	5.9
INCONEL600/601	2000°F		21.8	10.9
Monel 400	1000°F		11.2	5.6

Installation Parts for SS Knitted Mesh

Lacing anchor
Quilting pin
Self locking washer
Dome cap washer
Lacing hook
Lacing washers
