0.10mm-0.55mm Knitted Wire Mesh Manufacturer For Liquid Gas Filtration

Model Number:	HH-KINTTEDW
MOQ:	10 square meter knitted wire mesh
Payment Terms:	L/C,Western Union,T/T,MoneyGram
Supply Ability:	200000 m2 knitted wire mesh per 25 days

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001-2015

Name:

Knitted Wire Mesh

Application:

Liquid Gas Filtration Materials

Wire Diameter:

0.10 ~ 0.55mm Flat Wire Or Round Wire Common Diameter Is 0.20mm-0.25mm

Mesh Width:

40mm, 80mm, 100mm, 150mm, 200mm, 300mm, 400,500 Mm, 600mm, Etc.

Material:

SS 304, SS 316, 201,310S, 904L, Monel, Pure Copper, Brass

Hole Size:

From The (2 × 3 Mm) To The (4 × 5mm) Then (12 × 6mm)

Weave Type:

Flattened Type, Ginning Type.

Wire Number:

Single Wire, Double Wires, Three Wires

Packaging Details:

roll + carton+ pallet for knitted wire mesh

Supply Ability:

200000 m2 knitted wire mesh per 25 days

Highlight:

0.55mm Knitted Wire Mesh

Knitted Wire Mesh Manufacturer

0.10mm Knit Wire Mesh

Product Description

Liquid Gas Filtration Materials Knitted Wire Mesh

Quick Details

Wire diameter: 0.10 ~ 0.55mm flat wire or round wire (Common diameter: 0.20mm-0.25mm)
Mesh opening: From (2 × 3 mm) to (4 × 5mm) to (12 × 6mm)
Mesh Type: Flattened type, ginning type
Wire number: Single wire, double wires, three wires
Width: 40mm, 80mm, 100mm, 150mm, 200mm, 300mm, 400mm, 500mm, 600mm, etc.

Knitted wire mesh is available in various materials, each with distinct advantages for different applications:

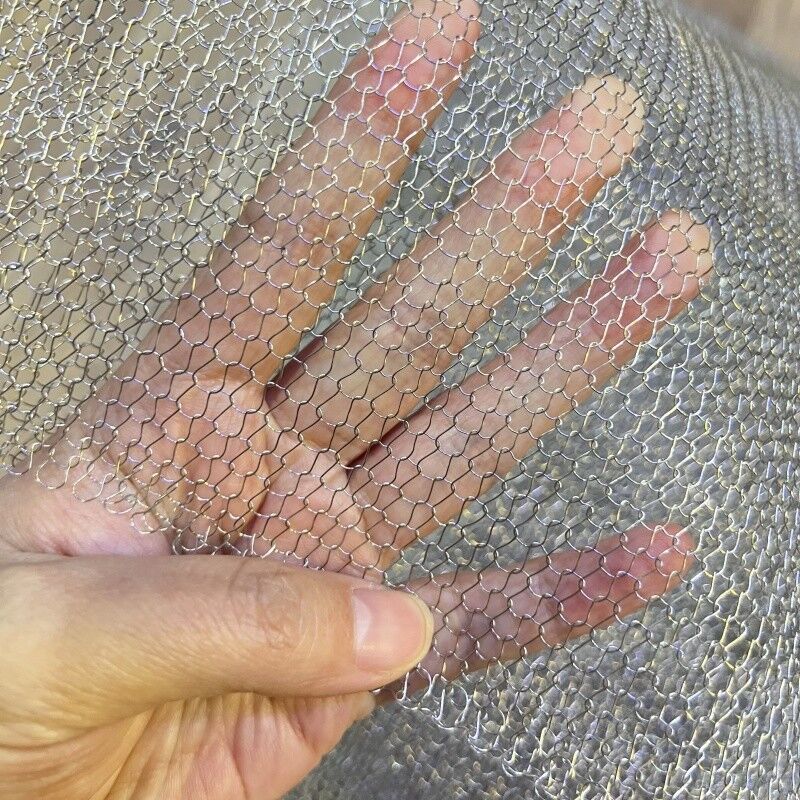

Stainless steel wires: Acid and alkali resistant, high temperature resistant for harsh environments

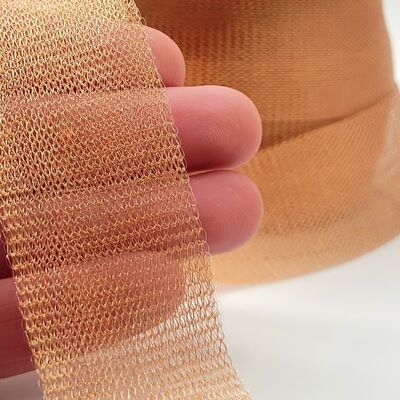

Copper wire: Excellent shielding performance with corrosion and rust resistance

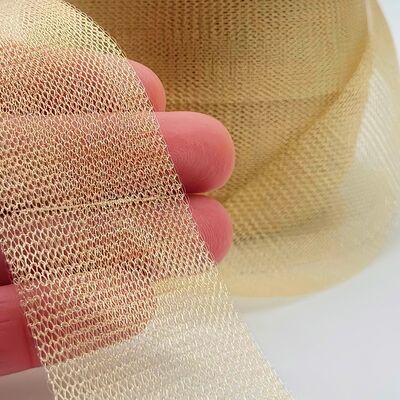

Brass wires: Bright color with good shielding performance
Galvanized wire: Economical and durable with corrosion resistance for common and heavy duty applications

What is Knitted Wire Mesh?

Knitted wire mesh is produced using machinery similar to that used for making sweaters and scarves. Various metal wires are installed on a round knitting machine to create a continuous circle of knitted wire mesh.

The mesh can be made from round or flat wires, with round wires being most common. Flat wire mesh is typically used for special applications based on customer requirements.

Both mono-filament and multi-filament wire options are available. Mono-filament mesh offers a simple structure and economical solution for common applications, while multi-filament mesh provides higher strength for heavy duty applications.

Specifications

Available Materials / Alloy	STAINLESS STEEL: 304, 304L, 316L 430, INCONEL, MONEL, COPPER, BRASS, ALUMINUM, MILD STEEL (PLAIN & GALVANIZED)
Wire Diameter	0.002″ - 0.030″ (MOST COMMON SIZE: .008″, .095″ & .011″)
Roll Widths	1″ - 43" (MOST COMMON: 4″ 6″, 12″, 18″, 24″, 30″, OR 42″)
Weight / Density	0.011", 0.095", 0.008"
Stainless Steel	13 LBS/SQFT, 18 LBS/SQFT, 24 LBS/SQFT
Hole Density	60 HOLES/INCH
Crimping / Corrugation	UP TO 30"

Key Features

High strength construction
Corrosion and rust resistance
Acid and alkali resistance
High temperature resistance
Soft material that won't damage mechanical parts
Durable with long service life
Excellent shielding performance
High filtration efficiency
Superior cleaning capacity
