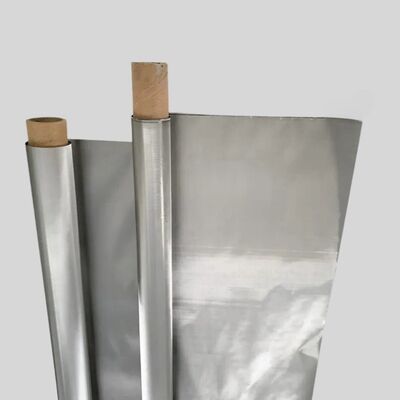

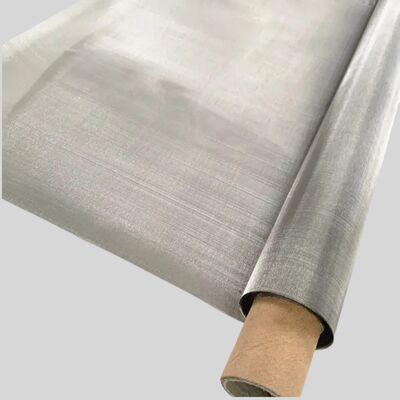

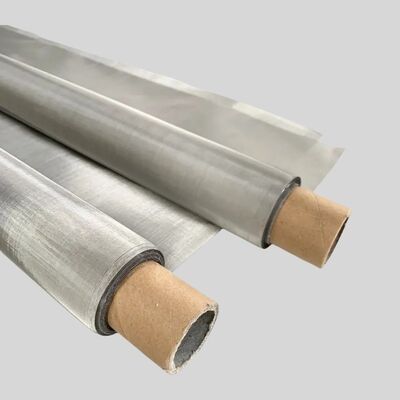

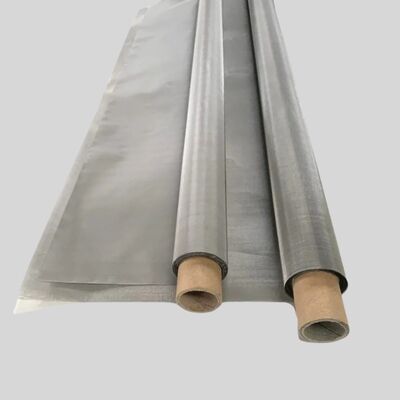

310 904L Stainless Steel Fine Mesh Screen , Woven Wire Cloth Mesh For Centrifugal Separation

Model Number:	HH-SSW
MOQ:	1 square meter
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	3000 square meters per 20 days

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO9001-2015

Name:

Stainless Steel Fine Mesh Screen

Weave Type:

Plain Weave,Twill Weave,Dutch Or 'Hollander' Weave

Standard Width:

Less Than 2000mm

Standard Length:

30 Meters

Mesh Count:

90-325

Production Standards:

ASTM E2016 - 20

Packaging Details:

outside use plastic wooden bags, +wooden case/carton pipes/wooden pallets

Supply Ability:

3000 square meters per 20 days

Highlight:

310 Stainless Steel Fine Mesh Screen

904L Stainless Steel Fine Mesh Screen

Stainless Steel Woven Wire Cloth Mesh

Product Description

Stainless Steel Fine Mesh Screen For Centrifugal Separation

Quick Details

Stainless Steel Grade: 304, 304L, 316, 316L, 310s, 904L, 430, etc
Special Material Options: Inconel, Monel, Nickel, Titanium, etc
Wire Diameter Range: 0.018 - 0.05mm
Hole Size Range: 90 - 325mesh
Weave Types: Plain Weave, Twill Weave, Dutch or 'Hollander' Weave, Plain Dutch Weave, Twill Dutch Weave, Reverse Dutch Weave, Multiplex Weave
Mesh Width: Standard less than 2000 mm
Mesh Length: 30m rolls or cut to length, minimum 2m
Mesh Type: Rolls and sheets available
Production Standards: ASTM E2016 - 20
Certification: ISO9001:2015

Product Description

Stainless steel fine mesh screen, or woven wire cloth, is machine-woven using a process similar to textile weaving but with wire. Available in various weave styles, these screens are designed for durability in complex application environments. While production costs are higher due to precision manufacturing, the product offers exceptional versatility.

Primary materials include 304, 316, 310, 904L, and 430 stainless steel grades. The most popular options are 304 and 316 stainless steel wire mesh, suitable for most applications while remaining cost-effective.

Specifications

Plain Fine Mesh Screen Sizes (Customized Sizes Available)

Mesh	Wire Diameter	Opening Size	Open Area
90	0.0040 Inch (0.102 Mm)	0.007 Inch (0.180 Mm)	41.00%
100	0.0040 Inch (0.102 Mm)	0.006 Inch (0.152 Mm)	36.00%
110	0.0040 Inch (0.102 Mm)	0.005 Inch (0.129 Mm)	31.40%
120	0.0026 Inch (0.066 Mm)	0.006 Inch (0.145 Mm)	47.30%
120	0.0037 Inch (0.094 Mm)	0.005 Inch (0.117 Mm)	30.90%
130	0.0017 Inch (0.043 Mm)	0.006 Inch (0.152 Mm)	60.70%
145	0.0022 Inch (0.056 Mm)	0.005 Inch (0.119 Mm)	46.40%
135	0.0023 Inch (0.058 Mm)	0.005 Inch (0.129 Mm)	47.40%
150	0.0026 Inch (0.066 Mm)	0.004 Inch (0.104 Mm)	37.20%
150	0.0030 Inch (0.076 Mm)	0.004 Inch (0.094 Mm)	30.40%
160	0.0025 Inch (0.063 Mm)	0.004 Inch (0.095 Mm)	36.40%
165	0.0019 Inch (0.048 Mm)	0.004 Inch (0.107 Mm)	47.10%
180	0.0012 Inch (0.030 Mm)	0.004 Inch (0.112 Mm)	61.50%
170	0.0026 Inch (0.066 Mm)	0.003 Inch (0.084 Mm)	31.20%
200	0.0016 Inch (0.041 Mm)	0.003 Inch (0.086 Mm)	46.20%
230	0.0014 Inch (0.036 Mm)	0.003 Inch (0.074 Mm)	46.00%
220	0.0017 Inch (0.043 Mm)	0.003 Inch (0.071 Mm)	38.70%
240	0.0016 Inch (0.040 Mm)	0.003 Inch (0.066 Mm)	38.30%
250	0.0016 Inch (0.040 Mm)	0.002 Inch (0.061 Mm)	36.00%
270	0.0014 Inch (0.036 Mm)	0.002 Inch (0.058 Mm)	38.70%
300	0.0015 Inch (0.038 Mm)	0.002 Inch (0.046 Mm)	30.30%

Twill Fine Mesh Chart

Screen Opening	Mesh	Wire Diameter	Open Area
0.006 inch (0.155 mm)	90	0.0050 inch (0.127 mm)	30.3%
0.006 inch (0.140 mm)	100	0.0045 inch (0.114 mm)	30.3%
0.005 inch (0.127 mm)	100	0.0050 inch (0.127 mm)	25.0%
0.005 inch (0.117 mm)	110	0.0045 inch (0.114 mm)	25.5%
0.004 inch (0.109 mm)	120	0.0040 inch (0.102 mm)	26.8%
0.004 inch (0.109 mm)	130	0.0034 inch (0.086 mm)	31.1%
0.004 inch (0.099 mm)	130	0.0038 inch (0.097 mm)	25.6%
0.004 inch (0.097 mm)	140	0.0033 inch (0.084 mm)	28.6%
0.004 inch (0.097 mm)	160	0.0024 inch (0.061 mm)	37.9%
0.004 inch (0.095 mm)	180	0.0018 inch (0.045 mm)	45.7%
0.004 inch (0.089 mm)	170	0.0024 inch (0.061 mm)	35.1%
0.003 inch (0.086 mm)	180	0.0023 inch (0.058 mm)	34.7%
0.003 inch (0.079 mm)	180	0.0025 inch (0.063 mm)	30.6%
0.003 inch (0.074 mm)	200	0.0021 inch (0.053 mm)	33.6%
0.003 inch (0.069 mm)	200	0.0023 inch (0.058 mm)	29.2%
0.002 inch (0.053 mm)	270	0.0016 inch (0.040 mm)	32.2%
0.002 inch (0.043 mm)	325	0.0014 inch (0.036 mm)	29.7%

Frequently Asked Questions

1. Are you factory/manufacturer or trader?

We are a direct factory with production lines and workers. Everything is flexible with no extra charges from middlemen or traders.

2. Which countries do you export to?

Our goods are mainly exported to Australia, Canada, UK, USA, Germany, Thailand, South Korea and other markets.

3. Can I get free samples?

Available samples can be provided free of charge. Custom samples may require production.

4. What is your minimum order quantity?

While there is no strict MOQ, we typically recommend quantities that offer the most favorable pricing.
