| Model Number: | HH-SS321W |
| MOQ: | 1 square meters |
| Payment Terms: | L/C,T/T,Western Union |
| Supply Ability: | 2000 rolls per 30 days |

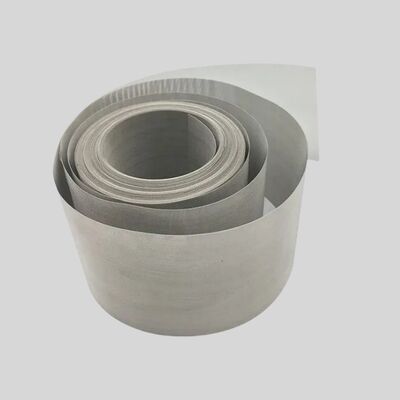

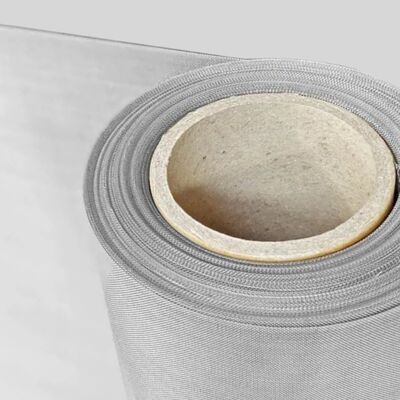

Type 321 stainless steel wire mesh is similar to the basic T-304 stainless steel alloy, but includes the addition of titanium for improved oxidation and general corrosion resistance. Compared to T-304L, T-321 stainless steel has both higher creep strength and stress rupture capabilities, and similarly possesses good low-temperature toughness.
T-304L wire mesh is usually more readily available than T-321, and is often used in most situations unless the wire mesh is to be used in an operating environment with temperatures above 925°F (as T-321 has better hot strength properties). If the requirement is only for resistance to intergranular corrosion after welding, then T-304L is the preferred alloy given its wider stock availability.
| Mesh | Wire Diameter | Opening Size | Open Area |
|---|---|---|---|
| 88 | 0.0035 Inch (0.089 Mm) | 0.008 Inch (0.201 Mm) | 47.90% |
| 90 | 0.0040 Inch (0.102 Mm) | 0.007 Inch (0.180 Mm) | 41.00% |
| 100 | 0.0040 Inch (0.102 Mm) | 0.006 Inch (0.152 Mm) | 36.00% |
| 110 | 0.0040 Inch (0.102 Mm) | 0.005 Inch (0.129 Mm) | 31.40% |
| 120 | 0.0026 Inch (0.066 Mm) | 0.006 Inch (0.145 Mm) | 47.30% |
| 120 | 0.0037 Inch (0.094 Mm) | 0.005 Inch (0.117 Mm) | 30.90% |
| 130 | 0.0017 Inch (0.043 Mm) | 0.006 Inch (0.152 Mm) | 60.70% |
| 145 | 0.0022 Inch (0.056 Mm) | 0.005 Inch (0.119 Mm) | 46.40% |
| 135 | 0.0023 Inch (0.058 Mm) | 0.005 Inch (0.129 Mm) | 47.40% |
| 150 | 0.0026 Inch (0.066 Mm) | 0.004 Inch (0.104 Mm) | 37.20% |
| Alloy | Standard(s) | Limits | Carbon (C) | Manganese (Mn) | Phosphorus (P) | Sulfur (S) | Silicon (Si) | Chromium (Cr) | Nickel (Ni) | Molybdenum (Mo) | Nitrogen (N) | Titanium (Ti) | Copper (Cu) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S32100 321 Stainless Steel |
ASTM A580 ASTM A313 |
Min | 0 | 0 | 0 | 0 | 0 | 17 | 9 | 5xC | |||
| Max | 0.08 | 2 | 0.045 | 0.03 | 1 | 19 | 12 | ||||||
| AMS 5689 | Min | 0 | 0 | 0 | 0 | 0.4 | 17 | 9 | 0 | 0 | 5xC+N | 0 | |
| Max | 0.08 | 2 | 0.04 | 0.03 | 1 | 19 | 12 | 0.75 | 0.1 | 0.7 | 0.75 |
T-321 stainless steel wire cloth is principally used in oil field & refinery, mining & quarrying, and aerospace industries. T-321 wire cloth is also commonly used in the chemical processing industry.
