| Model Number: | HH-SSBS |
| MOQ: | 1 ROLLS |
| Payment Terms: | L/C,T/T,Western Union |
| Supply Ability: | 2000 ROLLS PER 30 DAYS |

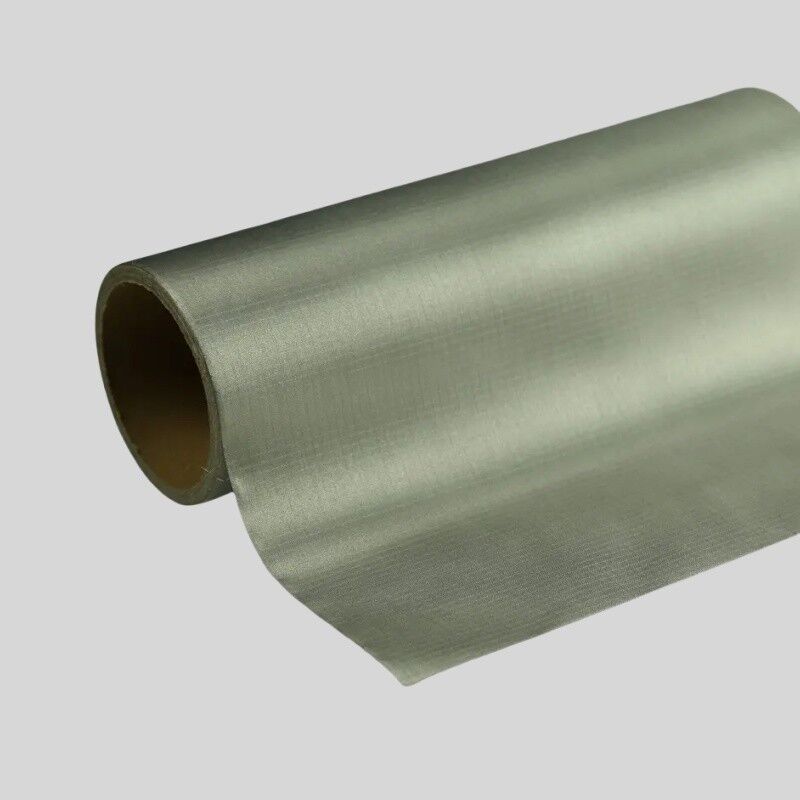

Stainless steel blackened shielding mesh (also called Blackened SS shielding Mesh or Blackened Stainless Steel Mesh) is a specialized mesh material that undergoes blackening treatment on stainless steel substrate. Designed for electromagnetic shielding applications, it combines stainless steel's excellent conductivity and corrosion resistance with enhanced shielding performance through the blackening process.
The blackened shielding mesh features a uniform black appearance, offering distinct optical and electromagnetic characteristics compared to standard stainless steel mesh.
Material: Stainless steel mesh, alloy mesh
Surface treatment: Black electrostatic spraying surface treatment
| Item | Mesh Count | Wire Diameter (mm) | Opening (μm) | Width Available (m) | Length Available (m) |
|---|---|---|---|---|---|
| HHSSBS-01 | 50 × 50 * | 0.03 | 478 | 1/1.22/1.5 | 30/60/100 |
| HHSSBS-02 | 80 × 80 | 0.025 | 290 | 1/1.22/1.5 | 30/60/100 |
| HHSSBS-03 | 100 × 100 | 0.025 | 230 | 1/1.22/1.5 | 30/60/100 |
| HHSSBS-04 | 100 × 100 * | 0.03 | 220 | 1/1.22/1.5 | 30/60/100 |
| HHSSBS-05 | 120 × 120 | 0.02 | 190 | 1/1.22/1.5 | 30/60/100 |
| HHSSBS-06 | 120 × 120 | 0.03 | 180 | 1/1.22/1.5 | 30/60/100 |
| HHSSBS-07 | 160 × 160 | 0.03 | 130 | 1/1.22/1.5 | 30/60/100 |
| HHSSBS-08 | 160 × 160 | 0.05 | 110 | 1/1.22/1.5 | 30/60/100 |
| HHSSBS-09 | 165 × 165 * | 0.03 | 120 | 1/1.22/1.5 | 30/60/100 |
| HHSSBS-10 | 200 × 200 | 0.05 | 77 | 1/1.22/1.5 | 30/60/100 |
| HHSSBS-11 | 250 × 250 * | 0.03 | 72 | 1/1.22/1.5 | 30/60/100 |
