| Model Number: | HH-SSRDW |
| MOQ: | 1 SQUARE METERS |
| Payment Terms: | L/C,T/T,Western Union |
| Supply Ability: | 3000 ROLLS PER MONTH |

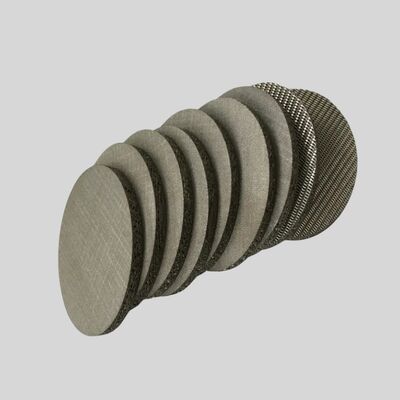

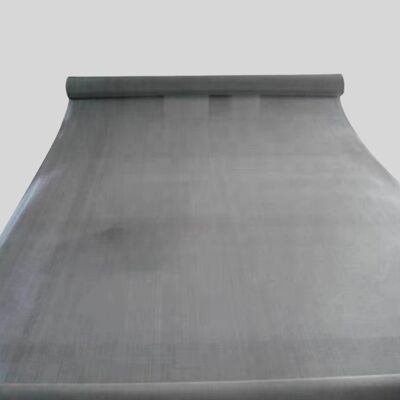

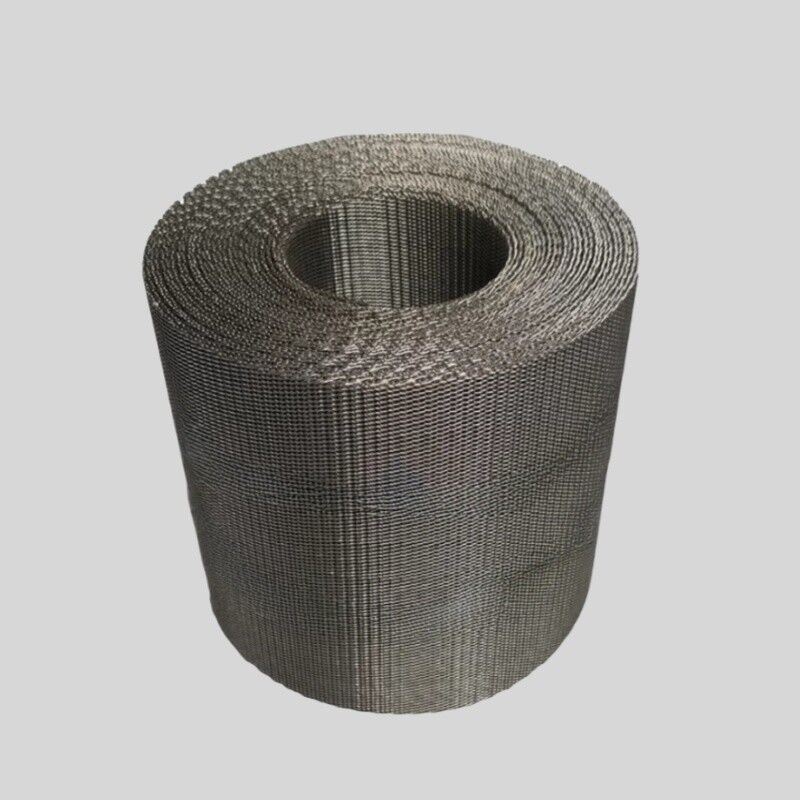

Reverse Dutch SS wire mesh is specially designed for filtering applications. Made primarily of stainless steel wire, it offers excellent chemical resistance, alkali and acid resistance, as well as rust and corrosion resistance, ensuring durable filtering performance.
The reverse Dutch weave can also be produced in brass wire, which maintains chemical stability for filtering applications. This mesh features coarser wire in the weft direction and finer wire in the warp direction, creating an optimal filtration structure.
| Serial Number | Mesh Count | Wire Diameter | Absolute Filtration Value | Nominal Filtration Value | Max Width |
|---|---|---|---|---|---|
| RPW-1 | 130 × 30 | 0.0079 × 0.0177 | 100-110 | 100 | 1800 |
| RPW-2 | 128 × 36 | 0.0079 × 0.0157 | 80-90 | 80 | 1800 |
| RPW-3 | 175 × 50 | 0.0059 × 0.0118 | 60-70 | 60 | 1300 |
| RPW-4 | 290 × 60 | 0.0035 × 0.0090 | 43-51 | 51 | 1300 |
| RPW-5 | 290 × 74 | 0.0035 × 0.0079 | 38-45 | 40 | 1300 |
| RPW-6 | 625 × 105 | 0.0016 × 0.0055 | 23-28 | 25 | 1300 |
| RPW-7 | 630 × 134 | 0.0015 × 0.0051 | 18-23 | 17 | 1300 |
| RPW-8 | 720 × 150 | 0.0013 × 0.0043 | 16-20 | 14 | 1300 |
| Serial Number | Mesh Count | Wire Diameter | Absolute Filtration Value | Nominal Filtration Value | Max Width |
|---|---|---|---|---|---|
| RTW-1 | 48 × 10 | 0.0200 × 0.0200 | 350-450 | 400 | 1300 |
| RTW-2 | 72 × 15 | 0.0200 × 0.0200 | 250-350 | 300 | 1300 |
| RTW-3 | 132 × 16 | 0.0140 × 0.0180 | 210-260 | 250 | 1300 |
| RTW-4 | 132 × 18 | 0.0140 × 0.0179 | 180-220 | 200 | 1300 |
| RTW-5 | 152 × 24 | 0.0120 × 0.0140 | 115-130 | 165 | 1300 |
| RTW-6 | 260 × 40 | 0.0059 × 0.0086 | 80-95 | 125 | 1300 |
| RTW-7 | 325 × 39 | 0.0059 × 0.0120 | 45-75 | 55 | 1300 |
| RTW-8 | 345 × 45 | 0.0055 × 0.0090 | 40-65 | 50 | 1300 |
| RTW-9 | 400 × 120 | 0.0026 × 0.0040 | 60-70 | 60 | 1300 |
Features smooth surface, high hardness, continuous net structure, no deformation, high temperature resistance, corrosion resistance and outstanding filtering performance.
