| Model Number: | HH-RCSWM |
| MOQ: | 1 rolls |
| Payment Terms: | L/C,T/T,Western Union |
| Supply Ability: | 3000 rolls wire mesh within 30 days |

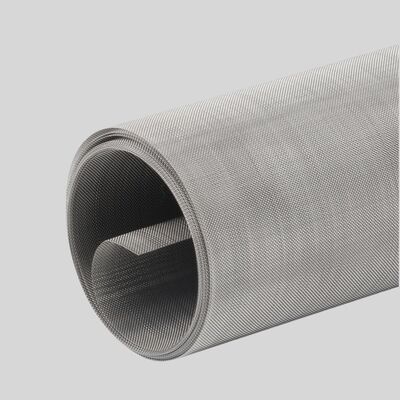

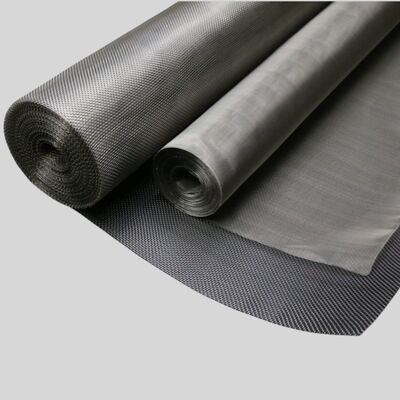

SS woven wire mesh used in refrigeration compressor mainly includes the following types:
These SS Woven wire mesh can meet the filtering and supporting requirements of refrigeration compressors in different application scenarios according to their different materials and weaving methods. It is suggested to select the appropriate type of stainless steel mesh according to the specific application to ensure the normal operation of the compressor and prolong its service life.
| Screen Opening | Mesh | Wire Diameter | Open Area |
|---|---|---|---|
| 0.017 inch | 0.422 mm | 35 | 0.0120 inch | 0.305 mm | 33.6% |
| 0.017 inch | 0.419 mm | 40 | 0.0085 inch | 0.216 mm | 43.6% |
| 0.013 inch | 0.324 mm | 45 | 0.0095 inch | 0.241 mm | 32.8% |
| 0.013 inch | 0.324 mm | 58 | 0.0045 inch | 0.114 mm | 54.6% |
| 0.011 inch | 0.269 mm | 66 | 0.0045 inch | 0.114 mm | 49.4% |
| 0.008 inch | 0.198 mm | 70 | 0.0065 inch | 0.165 mm | 29.7% |
| 0.006 inch | 0.155 mm | 90 | 0.0050 inch | 0.127 mm | 30.3% |
| 0.006 inch | 0.140 mm | 100 | 0.0045 inch | 0.114 mm | 30.3% |
| 0.005 inch | 0.127 mm | 100 | 0.0050 inch | 0.127 mm | 25.0% |
| 0.005 inch | 0.117 mm | 110 | 0.0045 inch | 0.114 mm | 25.5% |
| 0.004 inch | 0.109 mm | 120 | 0.0040 inch | 0.102 mm | 26.8% |
| 0.004 inch | 0.109 mm | 130 | 0.0034 inch | 0.086 mm | 31.1% |
| 0.004 inch | 0.099 mm | 130 | 0.0038 inch | 0.097 mm | 25.6% |
| 0.004 inch | 0.097 mm | 140 | 0.0033 inch | 0.084 mm | 28.6% |
| 0.004 inch | 0.097 mm | 160 | 0.0024 inch | 0.061 mm | 37.9% |
| 0.004 inch | 0.095 mm | 180 | 0.0018 inch | 0.045 mm | 45.7% |
| 0.004 inch | 0.089 mm | 170 | 0.0024 inch | 0.061 mm | 35.1% |
| 0.003 inch | 0.086 mm | 180 | 0.0023 inch | 0.058 mm | 34.7% |
| 0.003 inch | 0.079 mm | 180 | 0.0025 inch | 0.063 mm | 30.6% |
| 0.003 inch | 0.074 mm | 200 | 0.0021 inch | 0.053 mm | 33.6% |
| 0.003 inch | 0.069 mm | 200 | 0.0023 inch | 0.058 mm | 29.2% |
| 0.002 inch | 0.053 mm | 270 | 0.0016 inch | 0.040 mm | 32.2% |
| 0.002 inch | 0.043 mm | 325 | 0.0014 inch | 0.036 mm | 29.7% |
Refrigerant Compressors filters are generally installed at the ports of pressure reducing valves, constant water level valves and other equipment to filter impurities in the medium entering the pipeline to ensure the normal operation of the equipment. They feature compact structure, small running resistance and convenient cleaning.

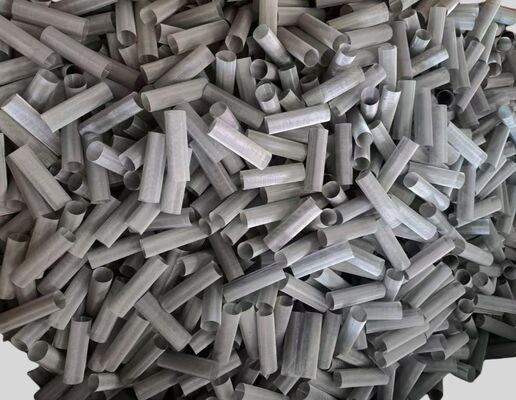

When liquid passes through the SS woven wire mesh, impurities are intercepted by the screen, protecting pumps, compressors, meters and other equipment. For maintenance, simply remove the filter cartridge, clean it, and reload it.
Modern water filtration systems using stainless steel mesh employ ultraviolet physical disinfection for sewage, effectively ensuring hygiene and safety without secondary pollution. This powerful function meets modern society's needs for water safety and drinking water security.
