| Model Number: | HH-SSPW |
| MOQ: | 1 square meter |
| Payment Terms: | L/C,Western Union,T/T |
| Supply Ability: | 3000 rolls per month |
Our woven wire mesh is available in various stainless steel grades including 304, 304L, 316, 316L, 310s, 904L, and 430. We offer custom manufacturing with factory-direct pricing.

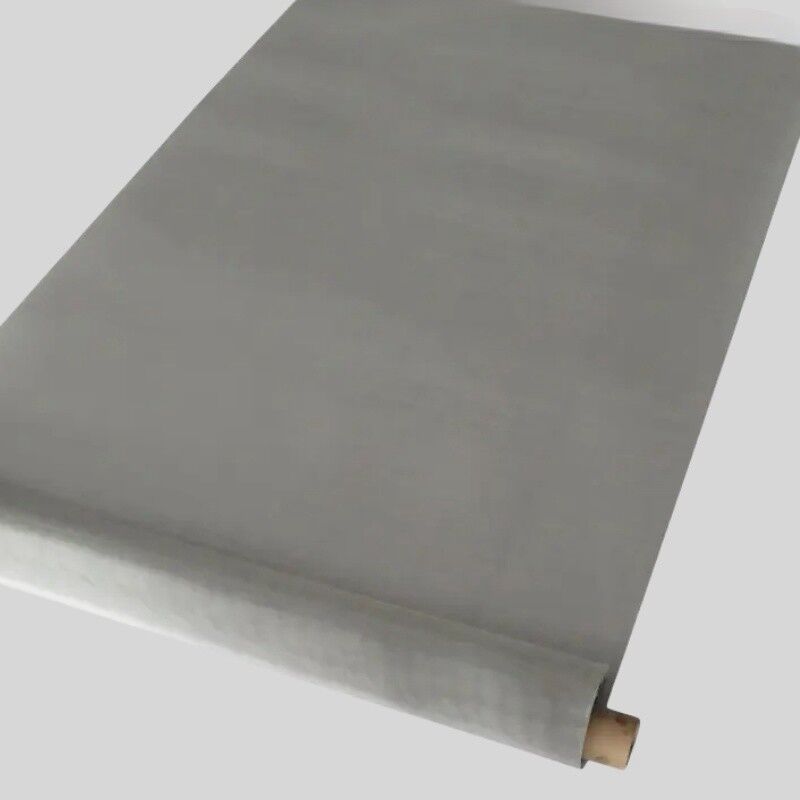

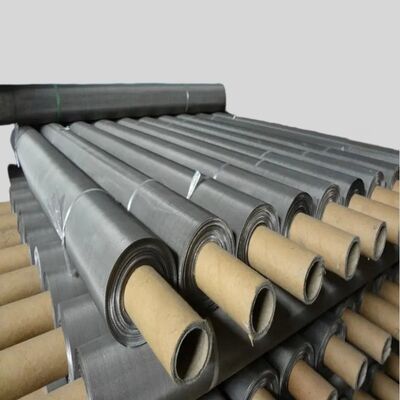

Stainless steel woven wire mesh rolls are machine-woven using a process similar to textile weaving, but with metal wire. Available in various weave styles, these durable products are designed for demanding industrial applications. While production costs are higher due to precision manufacturing, the result is a versatile product with wide-ranging uses.
| Mesh | Wire Diameter | Opening Size | Open Area |
|---|---|---|---|
| 50 | 0.0040 Inch (0.102 Mm) | 0.016 Inch (0.406 Mm) | 64.00% |
| 52 | 0.0055 Inch (0.140 Mm) | 0.014 Inch (0.348 Mm) | 51.00% |
| 64 | 0.0045 Inch (0.114 Mm) | 0.011 Inch (0.281 Mm) | 50.70% |
| 66 | 0.0040 Inch (0.102 Mm) | 0.011 Inch (0.284 Mm) | 54.20% |
| 72 | 0.0040 Inch (0.102 Mm) | 0.010 Inch (0.251 Mm) | 50.70% |
| 70 | 0.0040 Inch (0.102 Mm) | 0.010 Inch (0.262 Mm) | 51.80% |
| 88 | 0.0035 Inch (0.089 Mm) | 0.008 Inch (0.201 Mm) | 47.90% |
| 90 | 0.0040 Inch (0.102 Mm) | 0.007 Inch (0.180 Mm) | 41.00% |
| 100 | 0.0040 Inch (0.102 Mm) | 0.006 Inch (0.152 Mm) | 36.00% |
| 110 | 0.0040 Inch (0.102 Mm) | 0.005 Inch (0.129 Mm) | 31.40% |
| 120 | 0.0026 Inch (0.066 Mm) | 0.006 Inch (0.145 Mm) | 47.30% |
| 120 | 0.0037 Inch (0.094 Mm) | 0.005 Inch (0.117 Mm) | 30.90% |
| 130 | 0.0017 Inch (0.043 Mm) | 0.006 Inch (0.152 Mm) | 60.70% |
| 145 | 0.0022 Inch (0.056 Mm) | 0.005 Inch (0.119 Mm) | 46.40% |
| 135 | 0.0023 Inch (0.058 Mm) | 0.005 Inch (0.129 Mm) | 47.40% |
| 150 | 0.0026 Inch (0.066 Mm) | 0.004 Inch (0.104 Mm) | 37.20% |
| 150 | 0.0030 Inch (0.076 Mm) | 0.004 Inch (0.094 Mm) | 30.40% |
| 160 | 0.0025 Inch (0.063 Mm) | 0.004 Inch (0.095 Mm) | 36.40% |
| 165 | 0.0019 Inch (0.048 Mm) | 0.004 Inch (0.107 Mm) | 47.10% |
| 180 | 0.0012 Inch (0.030 Mm) | 0.004 Inch (0.112 Mm) | 61.50% |
| 170 | 0.0026 Inch (0.066 Mm) | 0.003 Inch (0.084 Mm) | 31.20% |
| 200 | 0.0016 Inch (0.041 Mm) | 0.003 Inch (0.086 Mm) | 46.20% |
| 230 | 0.0014 Inch (0.036 Mm) | 0.003 Inch (0.074 Mm) | 46.00% |
| 220 | 0.0017 Inch (0.043 Mm) | 0.003 Inch (0.071 Mm) | 38.70% |
| 240 | 0.0016 Inch (0.040 Mm) | 0.003 Inch (0.066 Mm) | 38.30% |
| 250 | 0.0016 Inch (0.040 Mm) | 0.002 Inch (0.061 Mm) | 36.00% |
| 270 | 0.0014 Inch (0.036 Mm) | 0.002 Inch (0.058 Mm) | 38.70% |
| 300 | 0.0015 Inch (0.038 Mm) | 0.002 Inch (0.046 Mm) | 30.30% |
