Dutch Stainless Woven Wire Mesh 14 X 88 Plain Dutch Weave Wire Mesh

Model Number:	HH-SSDW
MOQ:	1 square meters
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	5000 square meters per 15 days

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO9001-2015

Name:

Stainless Woven Wire Mesh

Stainless Steel Available:

04, 304L, 316, 316L, 310s, 904L, 430, Etc

Weave Type:

Plain Dutch Weave

Wire Diameter:

0.51×0.33

Absolute Filtration Value:

255 X275 μm

Mesh:

14 X 88

Nominal Filtration Value:

Nominal Filtration Value

Max Width:

2000mm

Packaging Details:

rolls, wooden or pallet or carton for different shape stainless woven wire mesh

Supply Ability:

5000 square meters per 15 days

Highlight:

Dutch Stainless Woven Wire Mesh

Stainless Woven Wire Mesh 14 X 88

Plain Dutch Weave Wire Mesh

Product Description

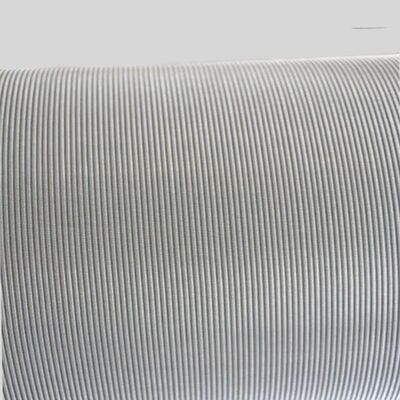

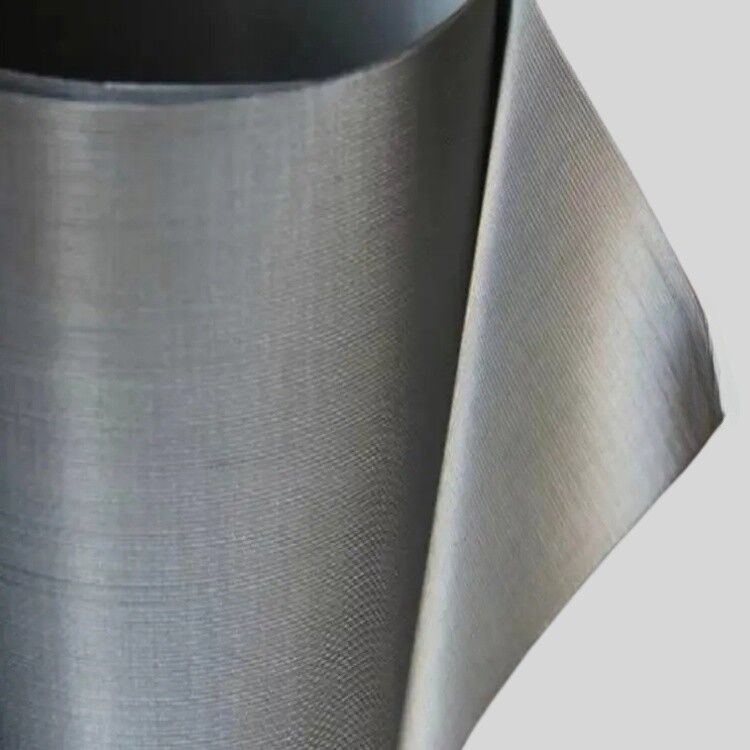

14 X 88 Mesh Dutch Stainless Woven Wire Mesh Plain Dutch Weave

Stainless steel dutch weave wire mesh

Quick details of 14 X 88 DUTCH Stainless woven wire mesh

Material: 304, 304L, 316, 316L, 310s, 904L, 430, etc
Wire diameter: 0.51×0.33 mm
Mesh count: 14 x 88
Absolute Filtration Value: 255 x275 μm
Nominal Filtration Value: 250 μm
Max width: 2000mm

Description of dutch stainless woven wire mesh

Dutch stainless woven wire mesh is manufactured from stainless steel wire. Different from plain weave woven wire mesh and twill woven wire mesh, the dutch weave woven wire mesh has different diameter in the weft and warp directions. Commonly the warp wire is coarser wire, which can supply the high tensile strength for the wire mesh. The weft wire is finer wire, which can ensure the excellent filtering performance. This unique structure with greater strength and finer openings is primarily used as a filter cloth.

Greater mechanical stability
Finer opening for better filtration efficiency and quality
Coarser wire for higher tensile strength

Standard specification of dutch stainless woven wire mesh

Plain Dutch Weave Woven Wire Cloth

Serial Number	Mesh Count	Wire Diameter	Absolute Filtration Value	Nominal Filtration Value	Max Width
SPDW-1	8 × 85	0.0140 × 0.0126	300-320	310	2000
SPDW-2	12 × 64	0.0240 × 0.0165	260-280	250	2000
SPDW-3	12 × 90	0.0178 × 0.0120	270-300	211	2000
SPDW-4	14 × 88	0.0200 × 0.0130	255-275	250	2000
SPDW-5	14 × 100	0.0160 × 0.0110	235-260	182	2000
SPDW-6	16 × 80	0.0170 × 0.0135	210-230	260	2000
SPDW-7	16 × 100	0.0157 × 0.0110	200-220	160	2000
SPDW-8	16 × 120	0.0140 × 0.0094	180-198	150	2000
SPDW-9	20 × 150	0.0098 × 0.0070	155-185	120	2000
SPDW-10	24 × 110	0.0150 × 0.0100	115-128	110	2000
SPDW-11	30 × 150	0.0090 × 0.0070	90-105	90	2000
SPDW-12	30 × 280	0.0110 × 0.0037	100-110	100	2000
SPDW-13	40 × 200	0.0070 × 0.0055	70-80	70	2000
SPDW-14	40 × 340	0.0098 × 0.0030	78-84	75	2000
SPDW-15	50 × 250	0.0055 × 0.0045	52-57	55	2000
SPDW-16	50 × 280	0.0055 × 0.0040	50-55	50	2000
SPDW-17	50 × 460	0.0078 × 0.0023	60-65	60	1300
SPDW-18	60 × 500	0.0065 × 0.0020	48-54	50	1300
SPDW-19	70 × 350	0.0050 × 0.0030	41-47	35	1300
SPDW-20	70 × 620	0.0060 × 0.0018	45-48	45	1300
SPDW-21	80 × 300	0.0050 × 0.0035	45-50	45	1300
SPDW-22	80 × 400	0.0050 × 0.0028	40-45	40	1300
SPDW-23	80 × 700	0.0040 × 0.0013	35-44	35	1300

Twill Dutch Weave Woven Wire Cloth

Item	Mesh/Inch	Absolute micron retention (μm)	Weight (kg/m2)	Cloth Thickness (mm)
STDW-01	510 × 3600	4 - 5	0.3	0.06
STDW-02	400 × 2800	5 - 6	0.36	0.06
STDW-03	375 × 2300	6 - 7	0.39	0.08
STDW-04	325 × 2300	7 - 8	0.47	0.09
STDW-05	260 × 1550	8 - 10	0.68	0.12
STDW-06	250 × 1400	11 - 12	0.68	0.12
STDW-07	200 × 1400	11- 13	0.75	0.14
STDW-08	130 × 700	13 - 15	1.6	0.28
STDW-09	200 × 1120	15 - 17	0.95	0.16
STDW-10	165 × 1400	15 - 18	0.7	0.15
STDW-11	165 × 1100	20 - 21	0.9	0.16
STDW-12	80 × 700	34 - 36	1.2	0.26
STDW-13	40 × 560	71 - 80	1.7	0.39
STDW-14	30 × 360	95 - 106	2.6	0.54
STDW-15	30 × 250	100 - 112	3.2	0.65
STDW-16	20 × 260	110 - 120	3.1	0.67
STDW-17	28 × 560	106 - 112	1.95	0.46
STDW-18	24 × 300	112 - 118	2.85	0.63

Specification customization: Wire Diameter, Mesh Count, Weave type Woven wire mesh is available on the roll or cut to size, Provide fine and strict packaging to ensure that the goods will not be damaged.

Dutch Stainless woven wire mesh is mainly used for filtering. It provides superior filtration capabilities for a wide range of areas applications:

Aerospace
Petrochemical
Pharmaceutical
Mining
Waste water
