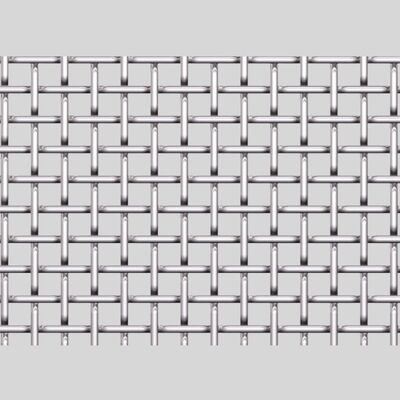

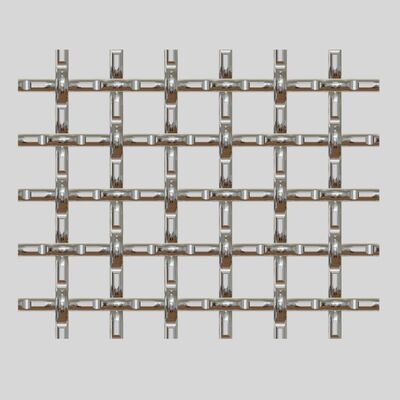

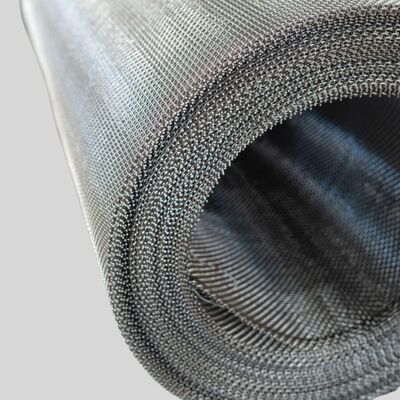

SS304 SS316 SS316L Stainless Steel Crimped Wire Mesh Square Hole Type

Model Number:	HH-SSC
MOQ:	1 square meter
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	3000 square meters per 30 days

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO9001-2015

Name:

Crimped Wire Mesh

Material:

Ss 304, Ss316, Ss316l

Type:

Small Hole Type Crimped Wire Mesh

Wire Dia:

0.23mm - 1.1mm

Apeature:

1.3mm - 11.5mm

Mesh Size:

To Be Your Request

Packaging Details:

wooden case or to be your request

Supply Ability:

3000 square meters per 30 days

Highlight:

SS316 Stainless Steel Crimped Wire Mesh

SS316L Stainless Steel Crimped Wire Mesh

SS304 Crimped Stainless Steel Mesh

Product Description

Square Hole Type Stainless Steel Crimped Wire Mesh SS 304 SS316 SS316L

Quick Details

Material: Stainless steel 304, 316, 316L, 904, 321

Wire Diameter: 0.23mm - 1.1mm

Aperture: 1.3 mm - 11.5mm

Mesh size: Up to 100m x 5m (l x b)

Feature services: Cleaning, slitting, shearing, calendaring, stretching & annealing

Product Description

Pre-crimping wire enables the mesh to lock together, creating a tight weave with good rigidity and pleasing aesthetics. This mesh is used extensively in architectural applications as infill panels, cages, and decoration. It also serves purposes in acoustics, filtration, bridge guards, aerospace parts, rodent control, and truck grills.

Weave Types

Lock Crimp: Made to hold accurate openings with straight sections of fill wires woven within straight sections of warp wires in an alternating pattern.
Double Crimp: Square pattern wire cloth using equal-sized warp and fill wires woven in an alternating pattern at adjacent intersections.
Intercrimp: Crimped warp wires filled at every other crimp for superior rigidity and stability, popular for screens and architectural uses.
Flat Top: All crimping offset to one side producing a single plane on top for smooth material flow across the surface.

Technical Specifications

Mesh	Wire Diameter	Opening Size	Open Area
2	0.0470 Inch (1.194 mm)	0.453 Inch (11.506 mm)	82.10%
3	0.0800 Inch (2.032 mm)	0.253 Inch (6.435 mm)	57.80%
4	0.0630 Inch (1.600 mm)	0.187 Inch (4.749 mm)	56.00%
10	0.0200 Inch (0.508 mm)	0.080 Inch (2.032 mm)	64.00%
12	0.0280 Inch (0.711 mm)	0.055 Inch (1.397 mm)	44.00%
16	0.0090 Inch (0.228 mm)	0.054 Inch (1.359 mm)	73.30%

Locked crimped wire meshes are made by weaving pre-locked wires. Single locked crimped mesh features wires crossing over alternately at intersection points with non-crimped wire sections, while double locked crimped mesh has wires crossing at each crimping. This construction provides particular stiffness, enabling greater precision even with wide mesh openings, and allows production of panels with exceptionally smooth surfaces.
