| Model Number: | HH-SSMF |
| MOQ: | 1 sqaure meters |
| Payment Terms: | L/C,T/T,Western Union |
| Supply Ability: | 2500 rolls with in 30 days |

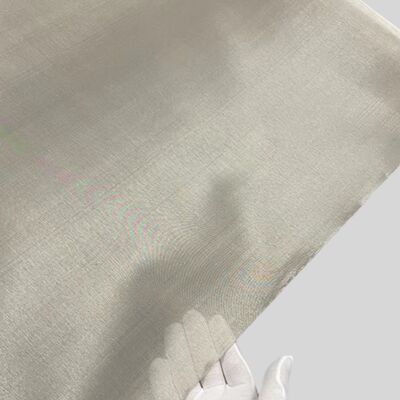

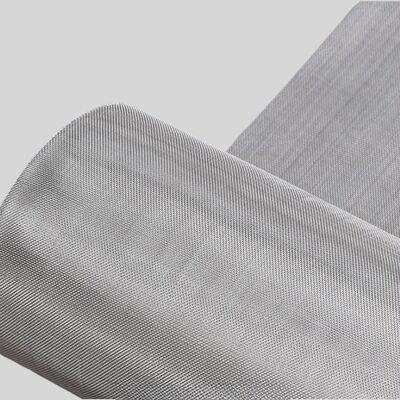

Woven micronic filter cloth is machine-woven using wire in various weave styles. This high-precision technology produces durable products suitable for complex application environments.
The square weave creates a thin, flexible mesh with visible square holes that allow light passage. These characteristics provide high flow rates, making it ideal for particle separation, classification, sifting, and fuel filtration applications.
| Mesh Count | Wire Diameter (inches/mm) | Mesh Hole Size (inches/mm) | Thickness (mm) | Maximum Width (mm) | Opening Rate (%) |
|---|---|---|---|---|---|
| 100 × 100 | 0.0045 / 0.1140 | 0.0055 / 0.1400 | 0.23 | 2000 | 30.4 |
| 100 × 100 | 0.0040 / 0.1020 | 0.0060 / 0.1500 | 0.20 | 2000 | 35.4 |
| 100 × 100 | 0.0035 / 0.0890 | 0.0065 / 0.1700 | 0.18 | 2000 | 43.1 |
| 110 × 110 | 0.0040 / 0.1016 | 0.0051 / 0.1295 | 0.20 | 2000 | 31.4 |
| 120 × 120 | 0.0037 / 0.0940 | 0.0046 / 0.1168 | 0.19 | 2000 | 30.7 |
| 150 × 150 | 0.0026 / 0.0600 | 0.0041 / 0.1041 | 0.12 | 2000 | 40.2 |
| 160 × 160 | 0.0025 / 0.0635 | 0.0038 / 0.0965 | 0.13 | 2000 | 36.4 |
| 180 × 180 | 0.0023 / 0.0584 | 0.0033 / 0.0838 | 0.12 | 2000 | 34.7 |
| 200 × 200 | 0.0021 / 0.0533 | 0.0029 / 0.0737 | 0.11 | 2000 | 33.7 |
| 250 × 250 | 0.0016 / 0.0400 | 0.0024 / 0.0610 | 0.08 | 2000 | 36.5 |
| 270 × 270 | 0.0016 / 0.0400 | 0.0021 / 0.0540 | 0.08 | 2000 | 33.0 |
| 300 × 300 | 0.0016 / 0.0400 | 0.0018 / 0.0446 | 0.08 | 2000 | 27.8 |
| 325 × 325 | 0.0014 / 0.0356 | 0.0017 / 0.0432 | 0.07 | 2000 | 30.1 |
| 400 × 400 | 0.0011 / 0.0300 | 0.0015 / 0.0330 | 0.06 | 1600 | 27.4 |
| 500 × 500 | 0.0010 / 0.0254 | 0.0010 / 0.0254 | 0.05 | 1500 | 25.0 |
| 635 × 635 | 0.0008 / 0.0203 | 0.0008 / 0.0203 | 0.04 | 1300 | 25.0 |
Micronic wire cloth provides superior filtration with nominal or absolute filter ratings, preventing solid particle passage. Its superfine, strong properties make it suitable for diverse industries:
