| Model Number: | HH-SSMW |
| MOQ: | 1 SQUARE METER |
| Payment Terms: | L/C,T/T,Western Union |
| Supply Ability: | 3000 ROLLS PER 30 DAYS |

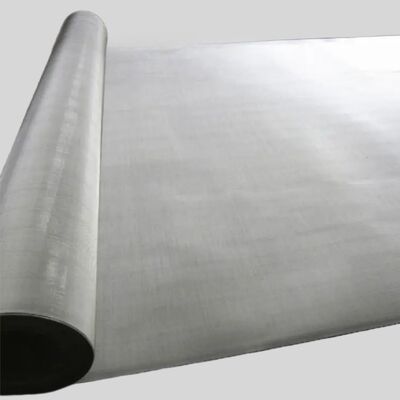

Micronic wire mesh products come in nominal or absolute filter ratings (opening sizes). The material is available in several sizes, shapes (including micronic mesh discs), and weaves. It is easily cut with sharp hand tools. The micronic filter cloth from HUIHAO comes in PW (plain) square weaves or Dutch weaves.
With a square weave, you'll get a thin mesh material with visible tiny square holes in which light can pass through. Square weaves are thin and flexible with a high flow rate and are often used for:

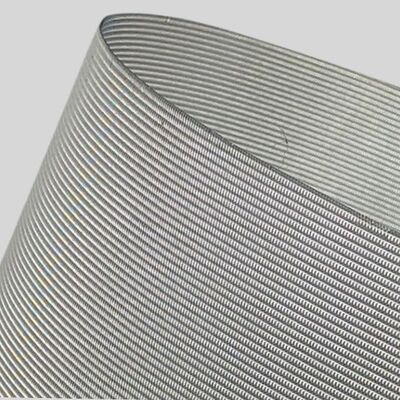

Mesh with a Dutch weave is woven to a precise tolerance for a much denser finished material with small, curved tunnel-shaped openings. Light does not pass through Dutch-woven micronic filter mesh. Thick and sturdy Dutch weaves are typically used for:
| Serial Number | Mesh Count | Wire Diameter | Mesh Hole Size | Thickness | Maximum Width | Opening Rate |
|---|---|---|---|---|---|---|
| SSp-30 | 80 × 80 | 0.0055" (0.1400mm) | 0.0070" (0.1800mm) | 0.28mm | 2000mm | 31.6% |
| Serial Number | Mesh Count | Wire Diameter | Absolute Filtration Value | Nominal Filtration Value | Maximum Width |
|---|---|---|---|---|---|
| PDW-1 | 8 × 85 | 0.0140" × 0.0126" (0.36 × 0.32mm) | 300-320μm | 310μm | 2000mm |
With a nominal (filter retention between 60 and 90 percent) or absolute (filter retention between 98 and 100 percent) filter rating, micronic wire cloth prevents the passage of most solid particles. The superfine and strong filtration properties make it suitable for use in:
The material is also used in various industrial applications including hydraulics, manufacturing, cleaning, classification, purification, sieving, and several types of filtration. Micronic filter cloth is resistant to:
The level of resistance depends on the type of weave and alloy.
