Multi Layer Stainless Steel Sintered Wire Mesh Pore Size 0.5um-100um

Model Number:	HH-MSSSM
MOQ:	100 PCS
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	10000 PCS PER 20 DAYS

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO9001-2015

Name:

Sintered Mesh

Pore Size:

0.5um, 2um, 5um, 10um, 15um, 20um, 40um, 60um, 90um, 100um

Technical:

Powder Sintering/wire Mesh

Application:

Petroleum,foodstuff And Water Treatment.

Working Temperature:

-200°C - 1000°C.

Material:

Stainless Steel Wire. 304, 304L, 316, 316L

Packaging Details:

Plastic film or bag. Cartons. Wooden box or pallet

Supply Ability:

10000 PCS PER 20 DAYS

Highlight:

Multi Layer sintered wire mesh

Stainless Steel sintered wire mesh 0.5um

sintered metal mesh 100um

Product Description

Multi Layer Stainless Steel Sintered Wire Mesh

Pore Size: 0.5μm - 100μm

Quick Details of Sintered Mesh

Material: Stainless steel wire (304, 304L, 316, 316L)
Production: Woven/perforated, vacuum sintering
Woven weaving types: Plain weave, twill weave, Dutch weave
Layers: 3-8 layers (standard is 5 layers)
Thickness: 0.08mm - 8mm (standard is 1.7mm)

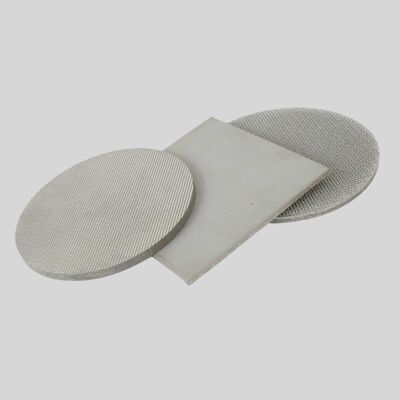

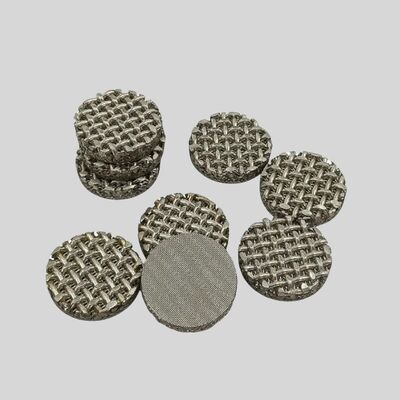

Types: Filter disc, filter tube, filter element, filter plate
Working temperature: -200°C to 1000°C

Description of Sintered Mesh

Sintered filter mesh is one of the most widely used filtration materials, consisting of 3 to 8 layers (typically 5 layers). Made from stainless steel wire, monel wire, inconel or other materials, the mesh is woven or perforated before undergoing vacuum sintering to create the final product.

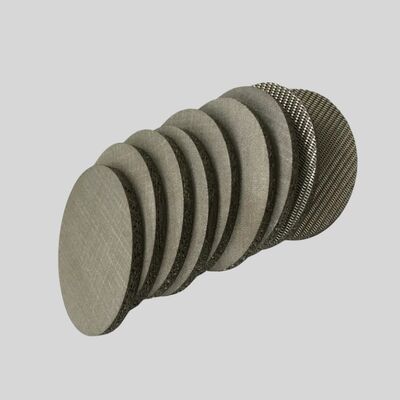

The multi-layer structure includes cover layer, filtration control layer, dispersion layer, support skeleton layer and skeleton layer. Available in various forms including filter discs and filter tubes.

Specification of Sintered Mesh

Micron Rating	Layers	Net Thickness	Weight per sq ft
1	5	0.0669 in (1.69926 mm)	2.6000 lb (1.1804 kg)
2	3	0.0223 in (0.56642 mm)	0.5800 lb (0.2633 kg)
2	5	0.0669 in (1.69926 mm)	2.6000 lb (1.1804 kg)
5	1	0.0058 in (0.14732 mm)	0.2500 lb (0.1135 kg)
5	2	0.009 in (0.2286 mm)	0.2500 lb (0.1135 kg)
5	3	0.0247 in (0.62738 mm)	0.6400 lb (0.2906 kg)
5	5	0.0669 in (1.69926 mm)	0.6250 lb (0.2838 kg)
10	2	0.0669 in (1.69926 mm)	0.6250 lb (0.2838 kg)
10	3	0.0284 in (0.72136 mm)	0.6400 lb (0.2906 kg)
10	5	0.0669 in (1.69926 mm)	0.6250 lb (0.2838 kg)

Features of Sintered Wire Mesh

High filtration efficiency
High mechanical strength
High permeability and porosity
Anti-corrosion and anti-pressure
Even distribution of pores
Catalysis recycling accurate filtering
Can be used at high and low temperatures
Easy to clean and reusable

Applications of Sintered Mesh

Widely used in precision pressure filters, fuel filtration, vacuum filters, air filters and heat dissipation treatment. Also serves as filter element raw material for construction, textile, medicine, aerospace, metallurgy, coal carbon, minerals, light industry, machinery and other technological fields.
