Fabric Precision Stainless Steel Reverse Dutch Weave Mesh 0.6mm-1.75mm Thickness

Model Number:	HH-SSRDW
MOQ:	1 square meters
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	1000 rolls within 30 days

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO9001-2015

Name:

Reverse Dutch Weave Mesh

Material:

SUS/AISI 201 202 302, 304,304L,316,316L Stainless Steel Reverse Dutch Wire Mesh

Mesh Size:

Can Be Woven Up To 350*50 Mesh

Roll Length:

1*30mroll Usual,the Width And Length All Can Be Customized

Customized:

All Sizes Can Be Customized As Per Your Demand

Wire Diameter:

0.13mm*0.27mm-0.45mm*0.6mm

Mesh Thickness:

0.6mm-1.75mm

Weave Type:

REVERSE Dutch Weave

Supply Ability:

1000 rolls within 30 days

Highlight:

Stainless Steel Reverse Dutch Weave Mesh

Precision Stainless Steel dutch wire mesh

Reverse Dutch Weave Wire Mesh 0.6mm

Product Description

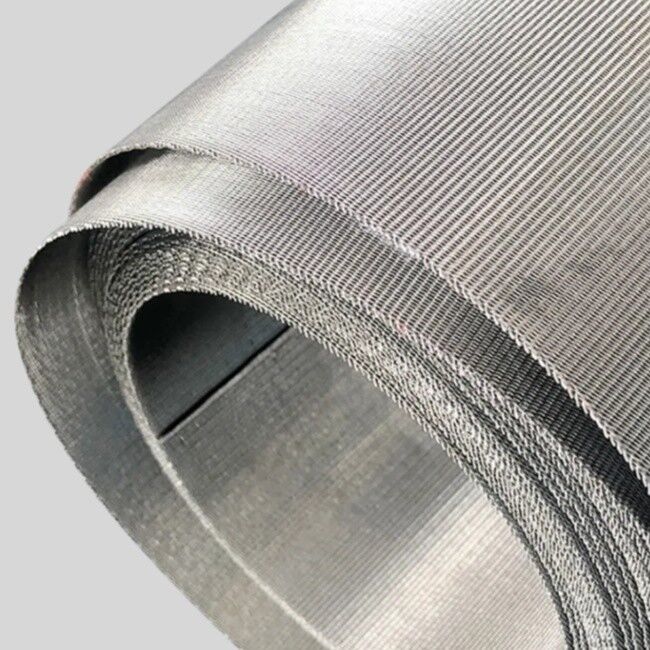

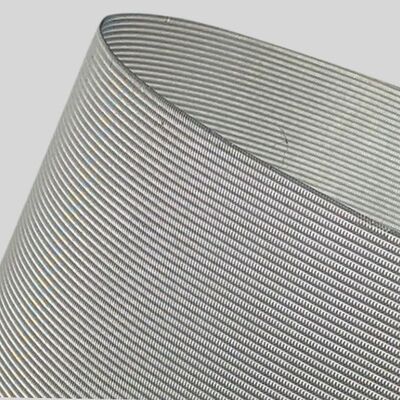

Fabric Precision Stainless Steel Reverse Dutch Weave Mesh

Quick Details

Material: SUS302, 304, 316, 316L
Mesh count: 54mesh×15mesh - 350mesh×40mesh
Wire diameter: 0.13mm×0.27mm - 0.45mm×0.6mm
Thickness: 0.6mm - 1.75mm

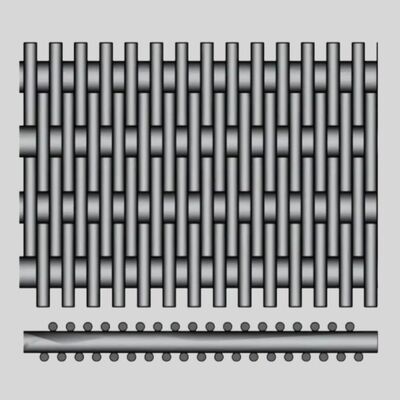

Weave Pattern: Plain reverse dutch weave woven wire mesh and Twill reverse dutch weave woven wire mesh

Product Description

Reverse dutch weave stainless steel wire mesh is designed for high-performance filtration applications. Manufactured from premium stainless steel wire, it offers exceptional chemical resistance against acids, alkalis, rust, and corrosion while maintaining long-lasting filtration performance. A brass wire variant is also available for applications requiring different chemical properties. The mesh is woven using two distinct wire diameters in a reverse dense weave pattern, making it ideal for demanding filtration applications in petrochemical, aerospace, and other industrial sectors.

Technical Specifications

Aperture width (mm)	Wire dia (inch)	Wire dia (mm)	Mesh	Open area %	Weight (kg/m²)
0.053	0.0015	0.036	280	35	0.18
0.075	0.0014	0.036	230	46	0.15
0.075	0.0023	0.056	195	33	0.30
0.090	0.0018	0.045	190	44	0.19
0.090	0.0020	0.050	180	41	0.23
0.100	0.0026	0.067	150	36	0.34
0.112	0.0032	0.080	130	34	0.42
0.118	0.0037	0.095	120	31	0.54
0.125	0.0032	0.080	124	37	0.40
0.132	0.0035	0.090	115	35	0.46
0.140	0.0045	0.112	100	31	0.63
0.180	0.0035	0.090	94	44	0.38
0.190	0.0035	0.100	88	48	0.35
0.230	0.0037	0.095	78	50	0.35
0.260	0.0037	0.095	72	54	0.32
0.250	0.0050	0.125	70	44	0.53
0.250	0.0063	0.160	62	37	0.79
0.300	0.0085	0.215	40	34	1.14
0.250	0.0080	0.200	56	31	1.13
0.375	0.010	0.250	40	36	1.27
0.560	0.014	0.355	28	37	1.75
0.85	0.025	0.630	18	33	3.41
0.85	0.032	0.800	15	27	4.93
0.90	0.008	0.200	23	67	0.46

Key Features

Manufactured from high-quality, high-strength stainless steel wire
Produced with advanced equipment and precision techniques
Smooth surface finish with high hardness and structural integrity
Maintains continuous net structure without deformation
Excellent high temperature resistance and corrosion resistance
Superior filtration performance for demanding applications

Applications

This stainless steel wire mesh is widely used across multiple industries including:

Industrial filtration of grains, powders, liquids, and gases
Mining, oil, and chemical processing operations
Food and pharmaceutical manufacturing
Machinery production and scientific research
Aviation and aerospace applications
Various construction and industrial screening purposes
