products details

Home Products

20 Micron 635 Mesh Stainless Steel Twill Weave Wire Mesh Alkali Resistant

Model Number:	HH-SSTW
MOQ:	1 square meter
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	2000 ROLLS PER 30 DAYS

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO9001-2015

Name:

Stainless Steel Twill Weave Wire Mesh

Material:

Stainless Steel

Weave Type:

Twill Weave

Advantage:

More Than 20 Years Experience

Wire Diameter:

From 0.018mm

Mesh Size:

0.0021"-0.215"

Standard:

ASTM E2016 - 20

Open AREA:

25%-74%

Packaging Details:

1.waterproof paper inside,plastic film outside,then in wooden box ; 2.waterproof paper inside,plastic film outside,then in wooden pallet ; 3.Also we can as per your requirements

Supply Ability:

2000 ROLLS PER 30 DAYS

Highlight:

Twill Weave Wire Mesh Alkali Resistant

20 Micron twill weave wire mesh

635 Mesh twill weave wire mesh

Product Description

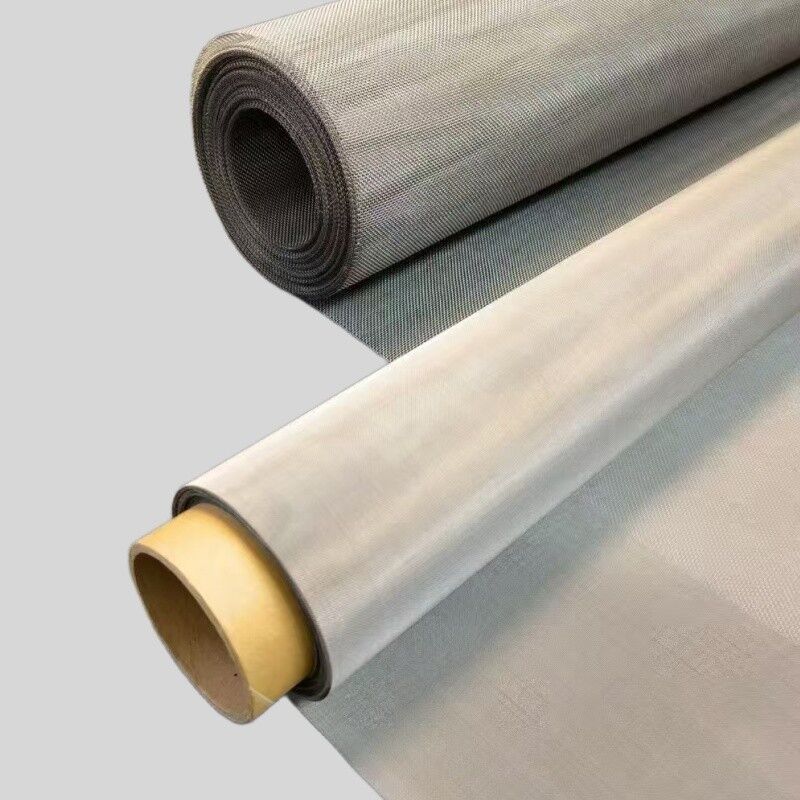

20 Micron 635 Mesh Stainless Steel Twill Weave Wire Mesh Alkali Resistance

Quick Details of Stainless Steel Twill Weave Wire Mesh

Material: SU302, 304, 316, 304L, 316L, 310S, 321 etc
Wire diameter: From 0.018mm
Opening size: 0.0021"-0.215"
Standard: ASTM E2016 - 20
Performance: Acid resistance, alkali resistance, temperature resistance, wear resistance
Width: 2000mm (common)

Description of Stainless Steel Twill Weave Wire Mesh

Twill weave mesh is a high-quality metal woven mesh produced using advanced weaving machines. It enables the use of heavier wires compared to plain weave mesh, resulting in superior load-bearing capacity and higher filtration ratings. In twill weave construction, each warp wire alternately passes over and under two weft wires, with identical wire diameters creating a parallel diagonal pattern. This weaving method enhances rigidity and durability, making it ideal for demanding filtration applications of gases, liquids, and solids.

Specification of Stainless Steel Twill Weave Wire Mesh

Screen Opening	Mesh	Wire Diameter	Open Area
0.215 inch	5.460 mm	4	0.0350 inch \| 0.890 mm \| 74.0%
0.105 inch	2.667 mm	8	0.0200 inch \| 0.508 mm \| 70.6%
0.065 inch	1.651 mm	12	0.0180 inch \| 0.457 mm \| 60.8%
0.062 inch	1.585 mm	14	0.0090 inch \| 0.228 mm \| 76.4%
0.017 inch	0.422 mm	35	0.0120 inch \| 0.305 mm \| 33.6%
0.017 inch	0.419 mm	40	0.0085 inch \| 0.216 mm \| 43.6%
0.013 inch	0.324 mm	45	0.0095 inch \| 0.241 mm \| 32.8%
0.013 inch	0.324 mm	58	0.0045 inch \| 0.114 mm \| 54.6%
0.011 inch	0.269 mm	66	0.0045 inch \| 0.114 mm \| 49.4%
0.008 inch	0.198 mm	70	0.0065 inch \| 0.165 mm \| 29.7%
0.006 inch	0.155 mm	90	0.0050 inch \| 0.127 mm \| 30.3%
0.006 inch	0.140 mm	100	0.0045 inch \| 0.114 mm \| 30.3%
0.005 inch	0.127 mm	100	0.0050 inch \| 0.127 mm \| 25.0%
0.005 inch	0.117 mm	110	0.0045 inch \| 0.114 mm \| 25.5%
0.004 inch	0.109 mm	120	0.0040 inch \| 0.102 mm \| 26.8%
0.004 inch	0.109 mm	130	0.0034 inch \| 0.086 mm \| 31.1%
0.004 inch	0.099 mm	130	0.0038 inch \| 0.097 mm \| 25.6%
0.004 inch	0.097 mm	140	0.0033 inch \| 0.084 mm \| 28.6%
0.004 inch	0.097 mm	160	0.0024 inch \| 0.061 mm \| 37.9%
0.004 inch	0.095 mm	180	0.0018 inch \| 0.045 mm \| 45.7%
0.004 inch	0.089 mm	170	0.0024 inch \| 0.061 mm \| 35.1%
0.003 inch	0.086 mm	180	0.0023 inch \| 0.058 mm \| 34.7%
0.003 inch	0.079 mm	180	0.0025 inch \| 0.063 mm \| 30.6%
0.003 inch	0.074 mm	200	0.0021 inch \| 0.053 mm \| 33.6%
0.003 inch	0.069 mm	200	0.0023 inch \| 0.058 mm \| 29.2%
0.002 inch	0.053 mm	270	0.0016 inch \| 0.040 mm \| 32.2%
0.002 inch	0.043 mm	325	0.0014 inch \| 0.036 mm \| 29.7%

Applications of Stainless Steel Twill Weave Wire Mesh

Twill weave mesh serves multiple industrial purposes, most notably as the filtration mesh in cafetieres. Our expertise includes supplying mesh for pioneering models in this application. The construction industry utilizes this durable mesh for reinforcement, window screens, railings, and fencing panels. In manufacturing, it forms the basis of filtration systems for liquids and air, as well as sieves for particle separation - representing our most frequent supply projects beyond cafetiere applications.

Packaging & Delivery

Packaging: White box or customized color box. Strong master carton or wooden case.

Delivery Options:

DAP: DHL, Fedex, TNT, UPS (7-10 working days)
DDP-sea/train: 35-60 days
DDP-air: 10-15 working days

Frequently Asked Questions

Q1: Can I get a sample? Is it free?

Yes, samples are available with payment required for the sample and freight. Free samples may be offered for select products.

Q2: Do you offer customized packaging box?

Yes, we provide customized packaging with die line templates for artwork customization.

Q3: Do you have the experience supply?

Yes, we possess extensive supply chain experience.

Q4: Which payment methods do you accept?

We accept T/T, credit card, PayPal, and Visa payments.

Q5: What is the MOQ of an order?

For in-stock products, the minimum order quantity is 1 piece.
