| Model Number: | HH-SS |
| MOQ: | 1 square meter |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 2000 ROLLS PER 30 DAYS |
Woven Wire Mesh, Wire Cloth Supply | Custom Manufacturing | Factory Price

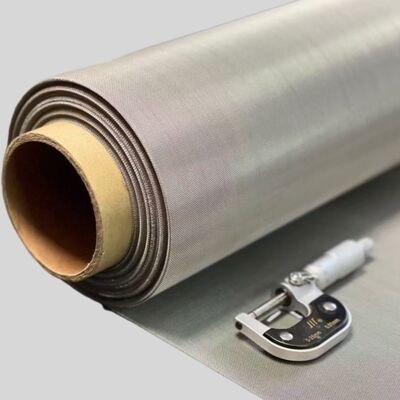

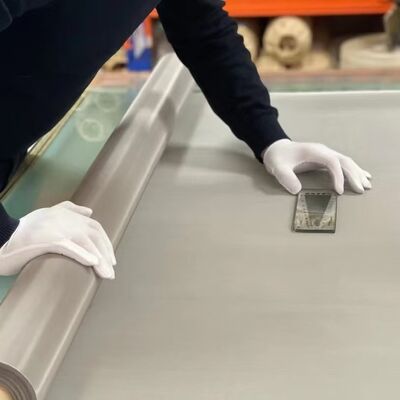

Woven wire mesh or woven wire cloth is machine-woven using a process similar to textile weaving but with metal wires. Available in various weave styles, this durable product is designed to withstand complex application environments.
Common materials include 304, 316, 310, 904L, and 430 stainless steel grades, with 304 and 316 being the most popular for general applications. Specialized materials like Inconel, Monel, Titanium, Pure Nickel, and Pure Silver are available for demanding environments.
| Mesh (inch) | Wire diameter (inch) | Aperture (inch) | Mesh (inch) | Wire diameter (inch) | Aperture (inch) |
|---|---|---|---|---|---|
| 2 | 0.063 | 0.437 | 80 | 0.006 | 0.007 |
| 5 | 0.041 | 0.159 | 100 | 0.004 | 0.007 |
| 10 | 0.025 | 0.075 | 120 | 0.037 | 0.006 |
| 14 | 0.020 | 0.051 | 150 | 0.003 | 0.004 |
| 18 | 0.017 | 0.039 | 180 | 0.002 | 0.003 |
| 20 | 0.016 | 0.034 | 200 | 0.002 | 0.003 |
| 24 | 0.014 | 0.028 | 300 | 0.005 | 0.002 |
| 30 | 0.009 | 0.024 | 500 | 0.001 | 0.001 |
| 40 | 0.010 | 0.015 | 635 | 0.001 | 0.001 |
| 60 | 0.007 | 0.010 | Accept Custom Specifications | ||
Stainless steel wire mesh serves diverse architectural and functional purposes across multiple industries including petroleum, chemical, environmental protection, mining, aerospace, paper, electronics, metallurgy, food, and pharmaceuticals.
