| Model Number: | HH-SSF0 |
| MOQ: | 1 square meter |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000 rolls per month |

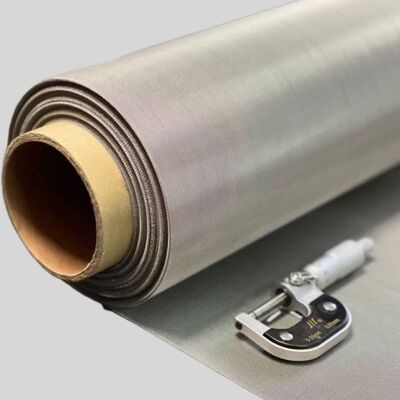

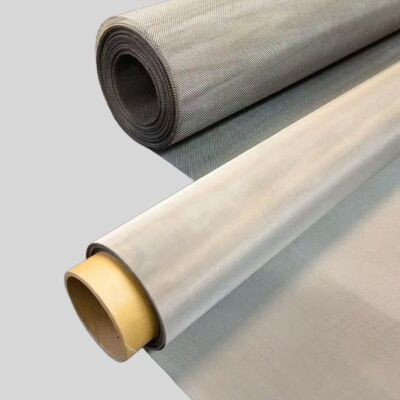

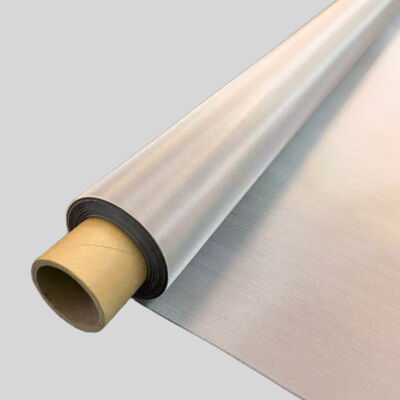

Stainless steel wire mesh or woven wire cloth is woven by machine. It is similar to the process of weaving clothing, but it is made of stainless steel fine wire. The stainless steel wire mesh can be woven in different weave styles. Its purpose is to produce solid and reliable products to adapt to various complex application environments. High precision technology makes the production cost of woven wire mesh higher, but it also has a very wide range of usages.
| Mesh/inch | Wire Diameter (mm) | Aperture (mm) | Mesh/inch | Wire Diameter (mm) | Aperture (mm) | |
|---|---|---|---|---|---|---|
| 2mesh | 1.80 | 10.90 | 60mesh | 0.15 | 0.273 | |
| 3mesh | 1.60 | 6.866 | 70mesh | 0.14 | 0.223 | |
| 4mesh | 1.20 | 5.15 | 80mesh | 0.12 | 0.198 | |
| 5mesh | 0.91 | 4.17 | 90mesh | 0.11 | 0.172 | |
| 6mesh | 0.80 | 3.433 | 100mesh | 0.10 | 0.154 | |
| 8mesh | 0.60 | 2.575 | 120mesh | 0.08 | 0.132 | |
| 10mesh | 0.55 | 1.990 | 140mesh | 0.07 | 0.111 | |
| 12mesh | 0.50 | 1.616 | 150mesh | 0.065 | 0.104 | |
| 14mesh | 0.45 | 1.362 | 160mesh | 0.065 | 0.094 | |
| 16mesh | 0.40 | 1.188 | 180mesh | 0.053 | 0.088 | |
| 18mesh | 0.35 | 1.060 | 200mesh | 0.053 | 0.074 | |
| 20mesh | 0.30 | 0.970 | 250mesh | 0.04 | 0.061 | |
| 26mesh | 0.28 | 0.696 | 300mesh | 0.035 | 0.049 | |
| 30mesh | 0.25 | 0.596 | 325mesh | 0.03 | 0.048 | |
| 40mesh | 0.21 | 0.425 | 350mesh | 0.03 | 0.042 | |
| 50mesh | 0.19 | 0.318 | 400mesh | 0.025 | 0.0385 |
| Weave | Mesh | Warp Wire (in) | Shute Wire (in) | abs μm Rating | Nom μm Rating | Wt per 100 sq/ft |
|---|---|---|---|---|---|---|
| PDW | 8X20 | 0.0140 | 0.0126 | 330-350 | 280 | 49 |
| PDW | 12X64 | 0.0240 | 0.0165 | 270-290 | 200 | 84 |
| PDW | 14X88 | 0.0200 | 0.0130 | 220-240 | 150 | 75 |
| PDW | 16X80 | 0.0169 | 0.0134 | 225-235 | 140 | 79 |
| PDW | 24X110 | 0.0150 | 0.0100 | 115-125 | 80 | 55 |
| PDW - TWIN WARP | 24X128 | 0.0100 | 0.0040 | 110-120 | 75 | 34 |
| PDW | 30X150 | 0.0090 | 0.0070 | 110-112 | 63 | 33 |
| PDW - TWIN WARP | 30X150 | 0.0090 | 0.0070 | 95-113 | 60 | 33 |
| PDW | 40X200 | 0.0070 | 0.0055 | 70-75 | 55 | 27 |
| PDW | 50X250 | 0.0055 | 0.0045 | 58-63 | 40 | 22 |
| PDW | 80X400 | 0.0050 | 0.0030 | 40-45 | 35 | 17 |
| TDW | 30X250 | 0.0100 | 0.0080 | 110-120 | 53 | 66 |
| TDW | 80X700 | 0.0040 | 0.0030 | 35-40 | 25 | 25 |
| TDW | 120X400 | 0.0040 | 0.0025 | 50-55 | 40 | 15 |
| TDW | 165X800 | 0.0028 | 0.0020 | 25-28 | 15 | 14 |
| TDW | 200X600 | 0.0024 | 0.0018 | 30 | 20 | 10 |
| TDW | 165X1400 | 0.0028 | 0.0016 | 16-20 | 10 | 14 |
| TDW | 200X1400 | 0.0028 | 0.0016 | 12-14 | 5 | 15 |
| TDW | 325X2300 | 0.0014 | 0.0010 | 8-9 | 2 | 10 |
| TDW | 400X2800 | 0.0010 | 0.0008 | 6-7 | 1 | 8 |
Perfectly suited for a wide array of architectural and functional purposes, stainless steel wire mesh is used in various industries. The petroleum, chemical environmental protection, mining, aerospace, paper making, electronic, metallurgical, food and pharmaceutical industries all utilize woven wire mesh.
