Laminated Glass Metal Mesh
Created with Pixso.

0.18mm Laminated Glass Metal Mesh Silver Plated For Elevator Cab

0.18mm Laminated Glass Metal Mesh Silver Plated For Elevator Cab

Model Number: HH-GLMI-14
MOQ: 3 square meters
Price: contact with me
Payment Terms: L/C,T/T,Western Union,MoneyGram
Supply Ability: 3000 square meters per 30 days
Detail Information
Place of Origin:
China
Certification:
ISO9001-2015
Name:
Laminated Glass Metal Mesh
Usage:
For Elevator Cab
Wire DIA:
0.18mm
Mesh TH:
0.35MM
Mesh Weight:
1.2kgs Per Square Meters
Max Width:
4000mm
Packaging Details:
roll+plastic bag+wooden case
Supply Ability:
3000 square meters per 30 days
Highlight:

0.18mm Laminated Glass Metal Mesh

,

Laminated Glass Metal Mesh Silver Plated

,

Elevator Cab Metal Mesh Laminated Glass

Product Description

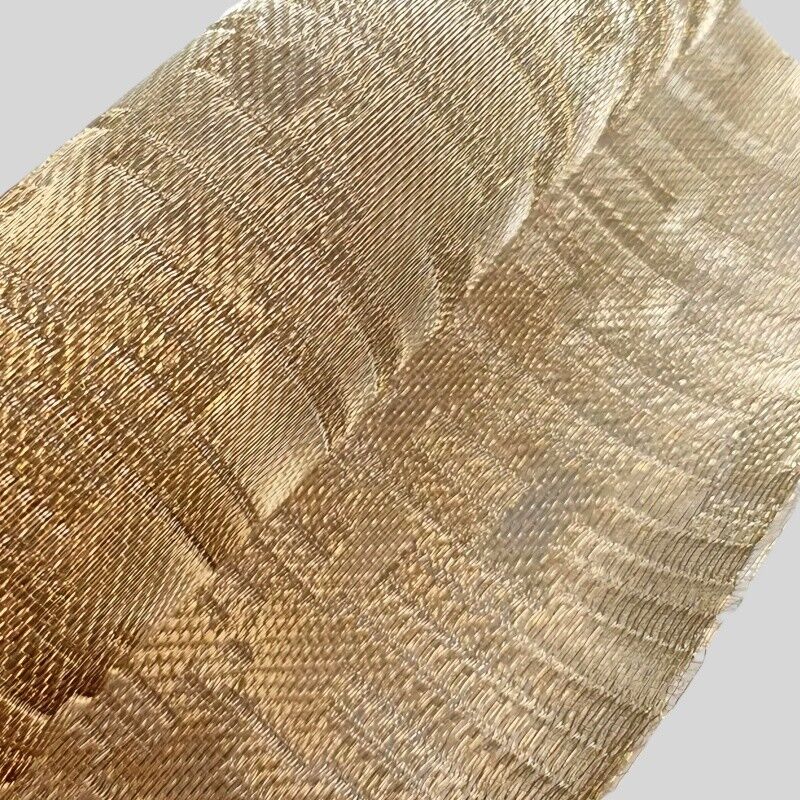

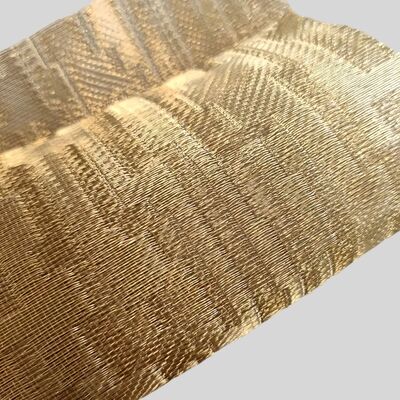

Glass Laminated Wire Mesh For Elevator Cab
Quick Details

Term: HH-GLMI-14

Material: brass wires

Finished: silver plated

Wire diameter: 0.18mm

Mesh Thickness: 0.35mm

Mesh Weight: 1.2kgs per square meter

Usage: elevator cab

Product Description

Glass laminated wire mesh features unique colors, textures and patterns that create visual effects unachievable with standard glass panels. This high-strength composite material combines glass with wire cloth for exceptional impact resistance and safety.

Available in various metallic fibers including stainless steel, copper, brass, and bronze. The metal wire maintains its natural metallic finish or can be custom colored through baked painting after silver plating.

Technical Specifications
ITEMS HH-GLMI-14
Material brass wire
Opening Area 0%
Warp Diameter 0.18mm
Mesh Thickness 0.35mm
Warp Pitch 0mm
Surface SILVER PLATED
Weft Diameter 0.18mm
Max Length 30M
Weft Pitch 0mm
Max Wide 4000mm
Weight 1.2 kgs/m2
Application wallpaper, wall covering
Key Features
  • Fireproof: The wire mesh supports broken glass pieces, preventing them from falling. Effectively blocks flame and powder intrusion, meeting fireproof door requirements when combined with appropriate framing.
  • Safety: Prevents glass fragments from scattering during breakage caused by earthquakes, storms, or impacts, significantly reducing injury risks compared to standard glass.
  • Security: The embedded wire mesh maintains structural integrity even when broken, deterring unauthorized entry and providing enhanced protection against break-ins.
