Customized Metal Fabric Laminated Glass 6mm- 20mm Glass Thickness

Model Number:	HH-GLMI-26
MOQ:	10 PIECES
Price:	CONTACT WITH US
Payment Terms:	L/C,T/T,Western Union,MoneyGram
Supply Ability:	5000 SQUARE METERS PER 28 DAYS

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO9001-2015

Name:

Metal Fabric Laminated Glass

Inter Layer:

Woven Wire Mesh

Mesh Material:

Stainless Steel, Copper, Brass, Phosphor Bronze

Color:

Natural Metal Color, Or Various Colors Customized, Such As Blue, Gold

Glass Thickness:

6mm- 20mm

Glass Size:

1830*2440mm, 3300*2140mm, 3300*2250mm, 3660*2140mm, 1200*4700mm

Packaging Details:

WOODEN CASE

Supply Ability:

5000 SQUARE METERS PER 28 DAYS

Highlight:

Customized Metal Fabric Laminated Glass

Metal Fabric Laminated Glass 6mm

Metal Fabric Laminated Glass 10mm

Product Description

Metal Fabric Laminated Glass 6mm-20mm Thickness

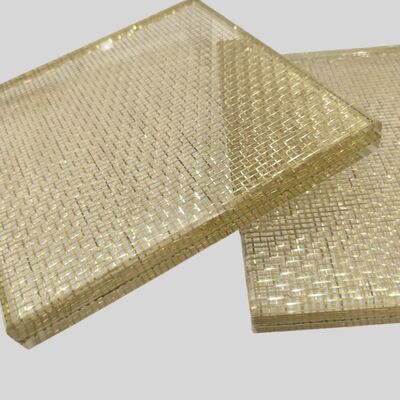

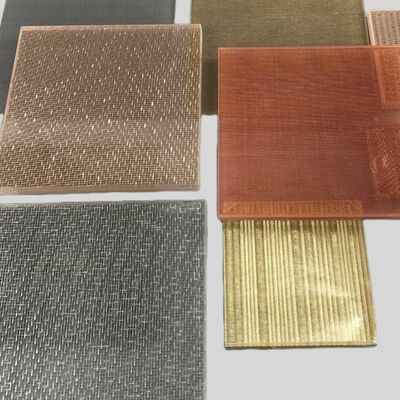

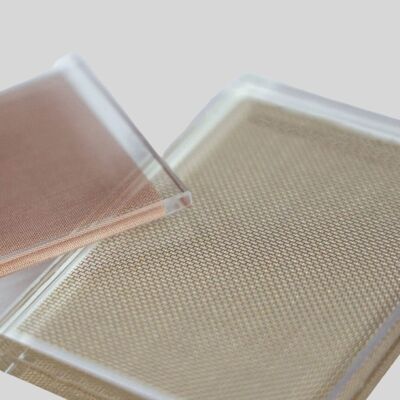

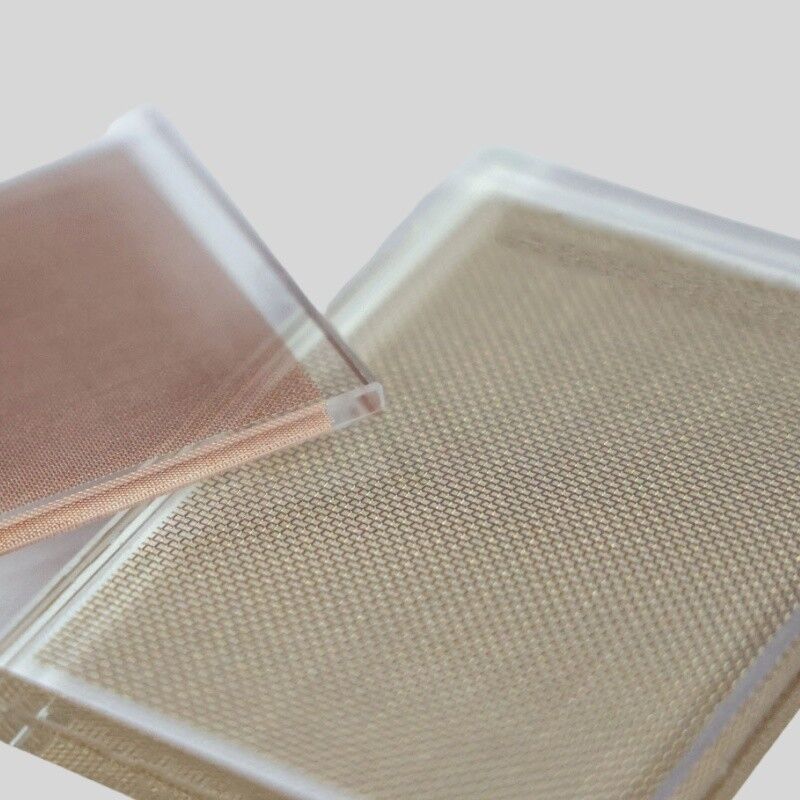

Description of Metal Fabric Laminated Glass

Metal fabric laminated glass is created by laminating metal mesh fabric between two glass panels bonded with adhesive. The metal fabric interlayer provides unique colors, textures, and patterns that create visual effects unachievable with single glass panels. Combining high-strength glass with wire cloth results in laminated glass with exceptional impact resistance and safety.

Our metal fabric interlayers can be woven from various metallic fibers including stainless steel, copper, brass, and bronze. The metal wires maintain their natural metallic colors or can be customized through baked painting after silver plating. We can weave metallic fibers into diverse patterns including landscapes, figures, and other designs.

With vibrant colors and vivid patterns, metal mesh fabric laminated glass is ideal for interior and exterior decorations including partitions, cabinet decorations, and building facades.

Specification of Metal Fabric Laminated Glass

Mesh Types: Woven wire mesh
Material: Stainless steel, copper, brass, phosphor bronze, polyethylene
Color: Natural metal color or custom colors (blue, gold, etc.)
Pattern: Customizable to customer requirements (plants, landscapes, figures, etc.)

Standard Specifications

Common Thickness	Glass Type	Common Size	Standard
7+7mm	Low Iron (crystal clear) Float Glass (slight green tint) Mirror Backed	18302440mm 33002140mm 33002250mm 36602140mm 1200*4700mm	AN/NZS 2008:1996 safety glazing standards ANSI Z971-2009, CPSC 16CFR 1201 Standards BS6206: 1981 standards
5+5mm
6+6mm

Our Advantages

Pattern design support according to application requirements
Frame design support for installation
Surface treatment options including PVDF, PVD, and Spraying
Supply of installation accessories (screws, wall anchors, tracks, bolts, etc.)
Material options: stainless steel, copper, bronze, brass, aluminum, aluminum alloy
Weave types: plain weave, twill weave, dutch weave, plain dutch weave, twill dutch weave, unique woven methods
ISO9001-2015 Quality certification management system
