1.3mm 10inch Solar Panel Bird Mesh Kit Fast / Easy Install

Model Number:	HH-SPKIT
MOQ:	ONE CARTON
Price:	Contact with us
Payment Terms:	L/C,T/T,alipay
Supply Ability:	6000 cartons per 30 days

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO9001-2015

Name:

Solar Panel Bird Mesh Control Kit

Fasteners:

Nylon Clips Are UV Stable

Noly Clip Size:

100mm Length With 30mm Fixing Washer

Weld Mesh Size:

10inch Width X100ft Length

Wire Diameter:

1.3mm

Aperture:

25.4mm X25.4mm

Factory:

Huihao Hardware

Designer:

ZHIJING.GAO

Packaging Details:

roll+carton+ pallet

Supply Ability:

6000 cartons per 30 days

Highlight:

Solar Panel Bird Mesh Kit

1.3mm solar panels bird mesh

10inch solar panels bird mesh

Product Description

Solar Panel Bird Mesh Control Kit

Solar Panel Bird Control Kit Includes:

Noly clips are UV stable and won't scratch panels
Clips recommended every 18 inches
Clips bind the mesh to the panels without drilling holes or damaging the system
Nearly invisible from the ground
Tin snips and other basic tools required for installation

Description of Solar Panel Bird Mesh Control Kit

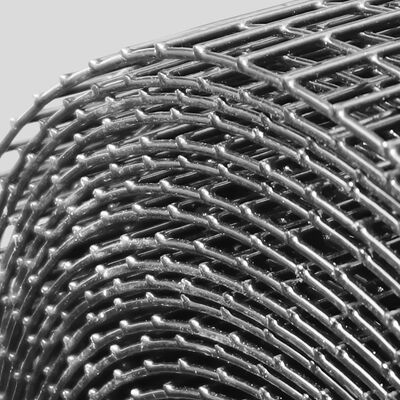

PVC coated mesh is 1.3mm wire mesh that offers an effective long lasting exclusion, designed specifically to keep birds and other wildlife from gaining access to the underside of Solar Panels. This non-penetrating system is fast and easy to install. The black mesh is locked in place by our Solar Panel Clips.

Where to Use: Rooftop solar panel arrays
Target Bird: All species
Material: U.V.-stabilized finished treatment

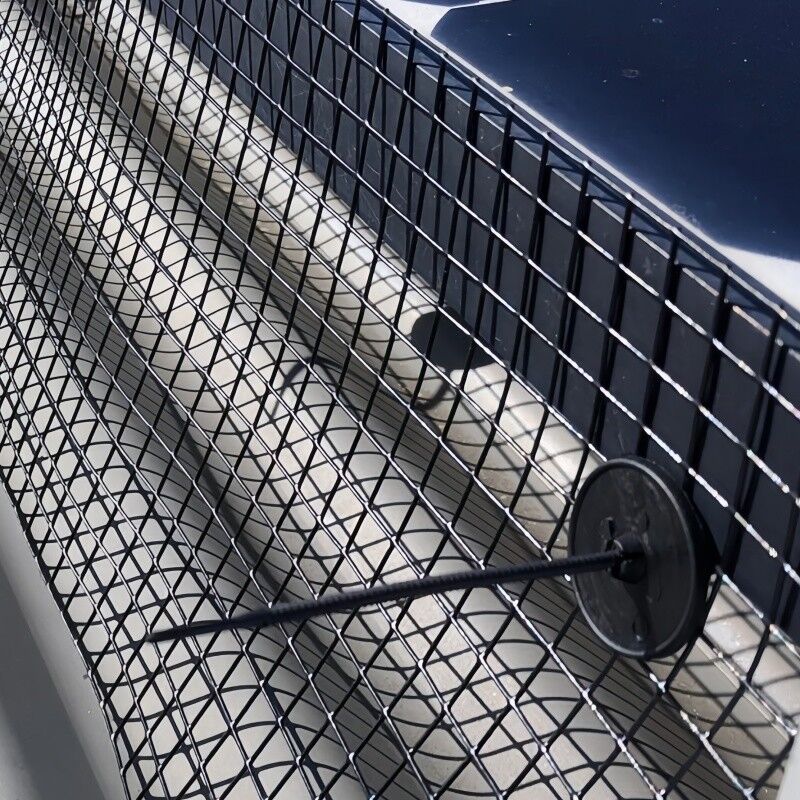

Installation: Wire mesh is bound to solar panels using Speed clips

Common weld wire mesh size for Solar Panel Bird Mesh Control Kit

In Metric	In Imperial
Wire Diameter: 0.7/0.8/0.9/1.0/1.1/1.2 mm	16Ga., 19Ga.
Mesh Opening: 12.7 × 12.7 mm, 25.4 × 25.4 mm, 12.7 × 25.4 mm	1/2" × 1/2", 1" × 1", 1/2" × 1"
Width: 0.1/0.15/0.2/0.23/0.25/0.3 m	4", 6", 8", 9", 10", 12"
Length: 15/20/25/30 m	50', 66', 82', 100'

Common Speed clips size for Solar Panel Bird Mesh Control Kit

Material	Aluminum and aluminum alloy	Stainless steel
J hook size in common:	2.4mmx100mm	2.0mmx120mm
Surface treatment	phosphating	Polish

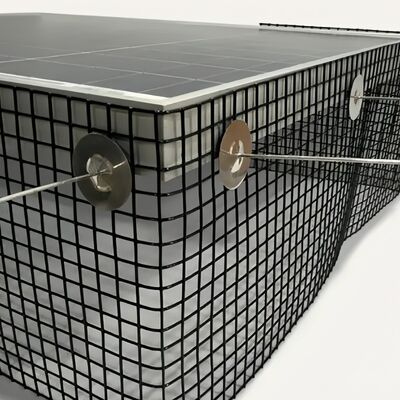

Solar panel clips including: J hook nails and self locking washers
Self locking washer size: 29mmx31mm, 30mmx30mm, 30mmx60mm
Calculating the necessary number of clips: Use 2 clips for the short side of every exposed edge of a panel and 3 clips for the long side of every exposed edge of a panel.
