8 Inch 100ft Solar Panel Bird Mesh Roll Galvanized Steel Wire Material

Model Number:	HH-8INCH
MOQ:	one roll mesh roll
Price:	contact with us
Supply Ability:	6000 rolls per 30 days

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001-2015

Name:

Solar Panel Bird Mesh Roll

Mesh Width:

8 Inch

Roll Length:

100 Ft

Wire Diameter:

1.3mm

Mesh Open:

12.7mm X12.7mm

Net Weight:

6.5kgs

Surface Treatment:

Black Pvc Coated

Fasteners:

70*Fastener Clips Per Roll

Packaging Details:

carton size 31x31x22cm

Supply Ability:

6000 rolls per 30 days

Highlight:

Solar Panel Bird Mesh Roll

100ft Solar Panel Bird Mesh

8 Inch Solar Panel Bird Mesh

Product Description

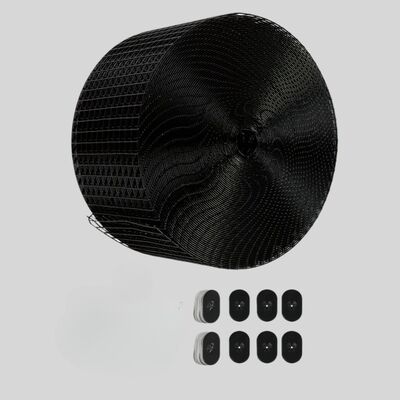

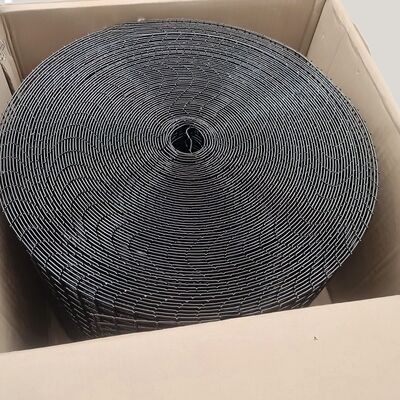

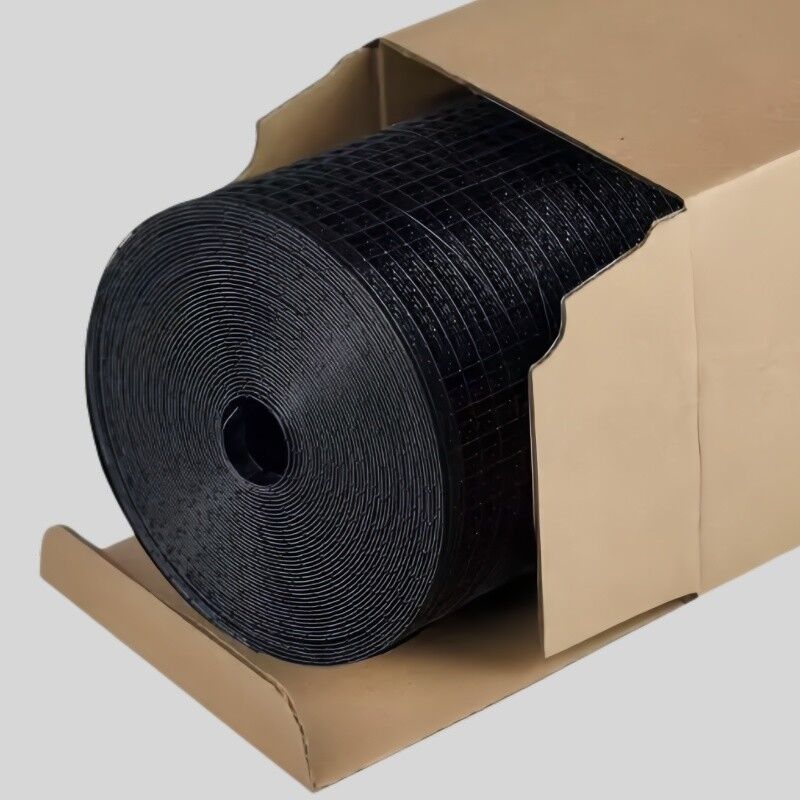

8 Inch 100ft Solar Panel Bird Mesh Roll

Quick Details

Material: Galvanized steel wire
Color: Black
Process: Spray Coating
Gross Weight: 7kg / 15.43lbs
Net Weight: 6.5kg / 14.33lbs
Package Size: 31x31x22cm / 12.2x12.2x8.66in
Product Length: 100ft / 30.5 m
Product Wideness: 20.3cm / 8in
Mesh Size: 1.27 x 1.27cm / 0.5 x 0.5in
Wire Diameter: 1.3mm / 0.05in

Description

Protect your solar panels from animal damage with this durable solar panel bird mesh. Made of iron with PVC coating, the mesh is wear-resistant, weather-resistant, and sturdy for long-lasting protection.

Smooth Edges: Prevents scratches during installation
Fasteners Clips: Corrosion-resistant aluminum fasteners for easy attachment and durability

Common Mesh Size Options

Specification	In Metric	In Imperial
Wire Diameter	0.7/0.8/0.9/1.0/1.1/1.2 mm	16Ga., 19Ga.
Mesh Opening	12.7 × 12.7 mm, 25.4 × 25.4 mm, 12.7 × 25.4 mm	1/2" × 1/2", 1" × 1", 1/2" × 1"
Width	0.1/0.15/0.2/0.23/0.25/0.3 m	4", 6", 8", 9", 10", 12"
Length	15/20/25/30 m	50', 66', 82', 100'

Common Clips Specifications

Feature	Aluminum/Alloy	Stainless Steel
J Hook Size	2.4mm x 100mm	2.0mm x 120mm
Surface Treatment	Phosphating	Polish

Solar panel clips include: J hook nails and self locking washers
Self locking washer sizes: 29mmx31mm, 30mmx30mm, 30mmx60mm
Clip calculation: Use 2 clips for the short side and 3 clips for the long side of every exposed panel edge.

Installation Process

Cut the mesh to an appropriate size for your solar panel
Use plywood to bend the mesh at a 45-degree angle for roof placement
Attach a hook to the solar panel
Place clips every 18 inches
Thread the hooks through the mesh
Add a washer to the hook
Slide washers down the hook
Secure by sliding washers up against the mesh
Cut excess hook portion past the washers to complete
