EnviroGuard Galvanized Steel Solar Bird Mesh PVC Coated Easy Cut And Installtion

Model Number:	HH-SPWM
MOQ:	one rolls
Price:	contact with us
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	6000 rolls per 30 days

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001-2015

Features:

Easy Cut And Installtion

Name:

EnviroGuard Galvanized Steel Solar Bird Mesh

Mesh Material:

Galvanized Steel

Mesh Finished:

Pvc Coated

Mesh Dimensions:

25mm X 12.5mm Mesh Open, Width And Length Size 300mm X 30m Roll

Install Parts:

2.4MMX100MM, 2MMX120MM J HOOK, 30MM Self Loking Washer

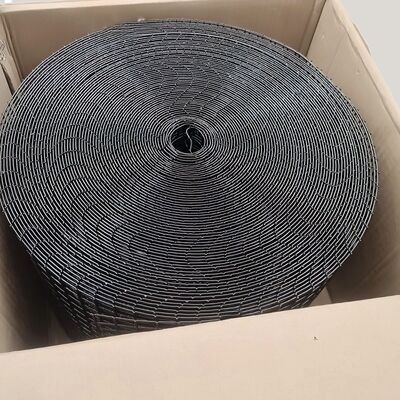

Packaging Details:

Pallets for only mesh ,Carton for Kit

Supply Ability:

6000 rolls per 30 days

Highlight:

Solar Bird Mesh Easy Cut

Galvanized Steel Solar Bird Mesh

Solar Bird Mesh PVC Coated

Product Description

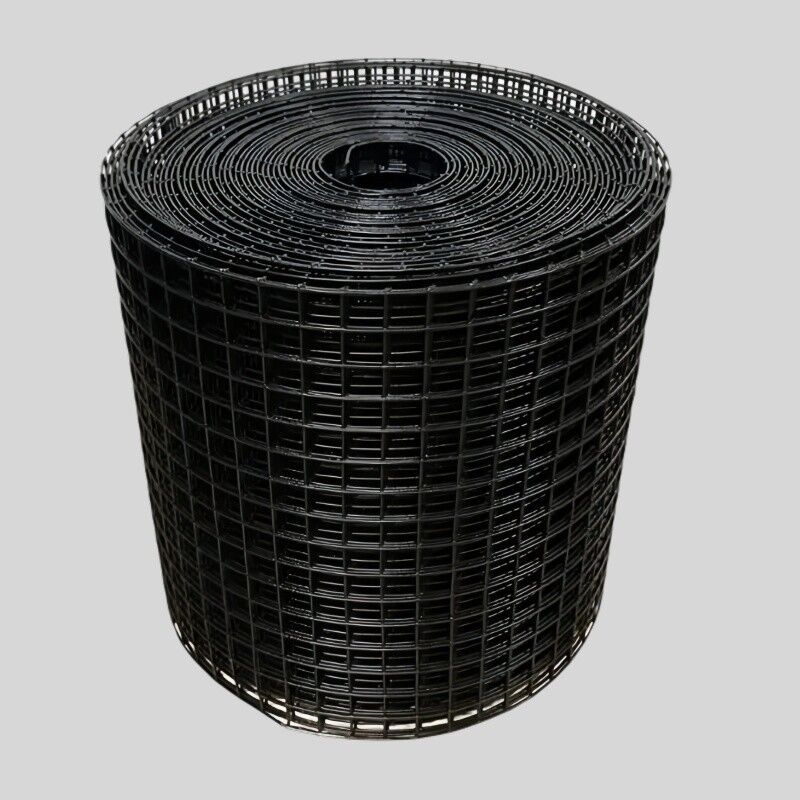

EnviroGuard Galvanized Steel Solar Bird Mesh

Ideal for use in screening solar panels to prevent birds of all species from accessing the underside of the panel. Pest bird infestations can cause significant damage to solar panels, roof coverings, and rainwater drainage systems, while also drastically reducing solar panel output due to pigeon faecal matter accumulation. The system is fast and easy to install with no gluing or drilling required.

Cutting Technique

Use heavy gauge side cutters to cut the mesh to required size. Cut into six-foot lengths and straighten before installation. Using a length of 2X4 timber, bend up the bottom inch of mesh to about 30 degrees to help lock the mesh firmly into place against the solar panel.

Key Features

Galvanized Steel Welded Mesh construction
Dimensions: 25mm × 12.5mm mesh opening, 300mm × 30m roll size
Saves time and cost by eliminating need to cut down wider rolls
No roof or solar panel piercing required
Special solar panel mesh clip securely holds weldmesh in place

Solar Panel Bird Exclusion Kit Contents

Component	Specifications
PVC coated Galvanized steel wire mesh	Wire diameter: 0.9mm, 1.2mm \| Mesh: 1/2", 1", 1/2"x1"
PVC coated stainless steel wire mesh	Wire diameter: 0.9mm, 1.2mm \| Mesh: 1/2", 1", 1/2"x1"
Stainless steel J hook pin	2mm × 120mm
Stainless steel self locking washer	Round type 30mm diameter
Aluminum J hook	2.4mm × 100mm
Aluminum self locking washer	Square type 28mm × 31mm diameter
