10x10 Count Stainless Steel Security Wire Mesh 316 316L

Model Number:	HH-SSM-3
MOQ:	10 pieces mesh
Price:	contact with us
Payment Terms:	L/C,Western Union,T/T,MoneyGram
Supply Ability:	8000 pieces per 30 days

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001-2015

Packaging Details:

mesh piece per plastic paper+ wooden case

Supply Ability:

8000 pieces per 30 days

Highlight:

security wire mesh 316

stainless steel security wire mesh

10x10 steel security mesh

Product Description

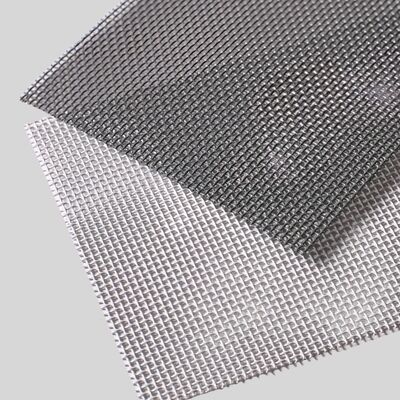

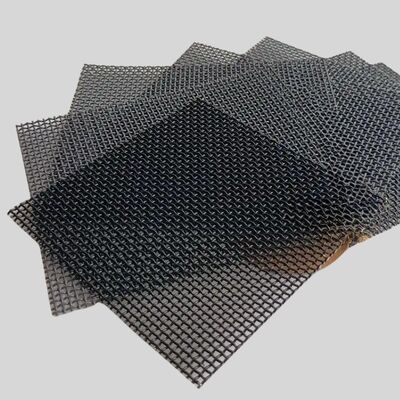

10×10 Count Stainless Steel Security Wire Mesh 316 316L

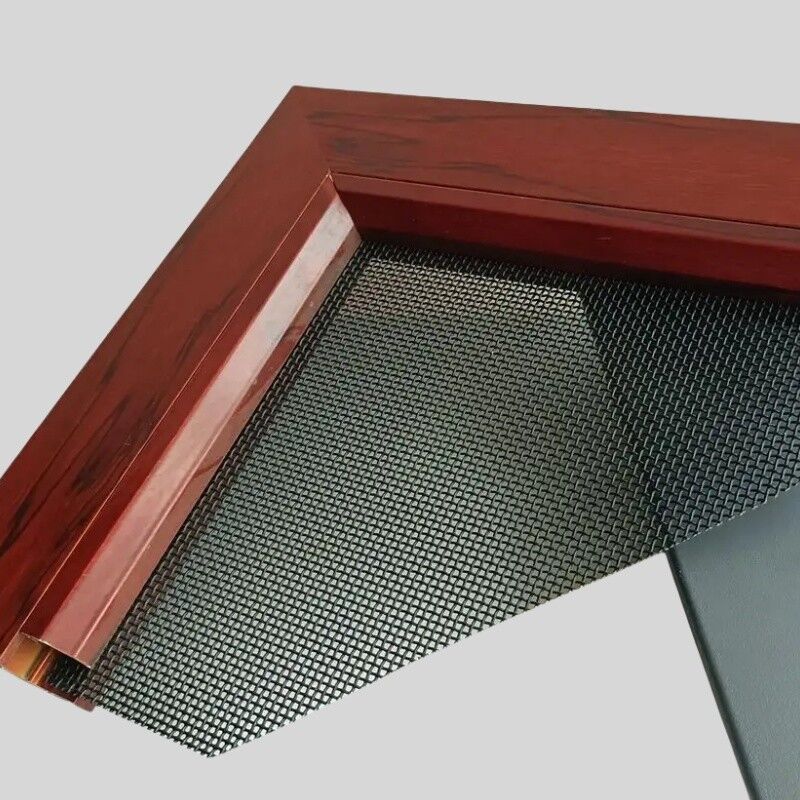

Painted Security Wire Mesh Window Door Guard

316 316L Brine Proof Stainless Steel Security Mesh Screen

Quick Details

Material: Stainless steel 316, 316L

Wire diameter: 0.9mm

Mesh count: 10×10 (1.6mm hole diameter)

Surface finished: High Quality Powder Coated (BEST AKZO)

Mesh colors: Black, Gray, White, Silver

Features

Excellent anti-corrosion: 316 stainless steel with powder coated layer offers superior corrosion resistance
High tensile strength: 316 stainless steel wire has more than 900 MPa tensile strength
Good moisture resistance: Meets Australian marine grade standards
Safety protection: Superior strength prevents damage from knives, scissors, hammers and saws
Protection against insects and rodents
Privacy guarantee with beautiful appearance
Invisible ventilation
Energy saving properties
Ultraviolet light prevention
Easy to clean
Bulletproof function
Fire prevention

Specifications

Term	Mesh	Hole	Wire Mesh Sheet Size
316 Marine grade stainless steel wire Akzo Nobel powder coating (Black only)	8mesh×1.2mm	2.0mm	Width × Length 750mm×2000mm/2400mm/3000mm/3500mm 900mm×2000mm/2400mm/3000mm/3500mm 1000mm×2000mm/2400mm/3000mm/3500mm 1200mm×2000mm/2400mm/3000mm/3500mm 1500mm×2000mm/2400mm/3000mm/3500mm
	8mesh×1.3mm	1.9mm
	9mesh×0.9mm	1.9mm
	9mesh×1.0mm	1.8mm
	10mesh×0.9mm	1.6mm
	10mesh×1.0mm	1.5mm
	11mesh×0.8mm	1.5mm
	11mesh×0.9mm	1.4mm

Additional Specifications:

1. Sheet Size: Can be customized

2. Coating Color: Black/Gray/White

3. Packing: 50 pcs per polywood box

Key Points: General Security Window Mesh quality can be judged by weight. For the same material, mesh and wire diameter, the heavier the mesh weight, the better the quality and the higher the price (compare weights before spraying).
