Marine Grade Stainless Steel Security Mesh security window screens

Model Number:	HH-SSM-7
MOQ:	10 sheet mesh
Price:	contact with us
Payment Terms:	L/C,T/T,Western Union,MoneyGram
Supply Ability:	8000 pieces mesh sheet per 30 days

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO9001-2015

Name:

Marine Grade Security Mesh

Material:

Marine Grade Stainless Steel 316

Wire Diameter:

0.8mm-1.2mm

Mesh Count:

8- 11 Mesh

Color:

Black , Grey , White Or As Your Demands

Application:

Security Window Screens

Packaging Details:

wooden case package or to be your requirements

Supply Ability:

8000 pieces mesh sheet per 30 days

Highlight:

Powder Coated SS Security Mesh

316 Stainless Steel Security Mesh

316 security window screens

Product Description

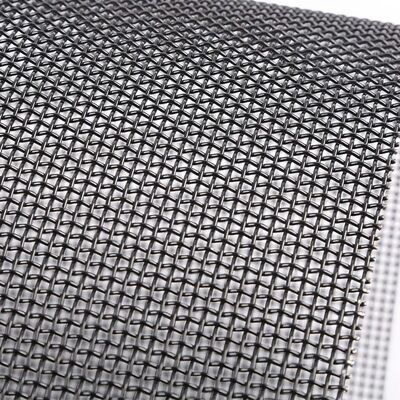

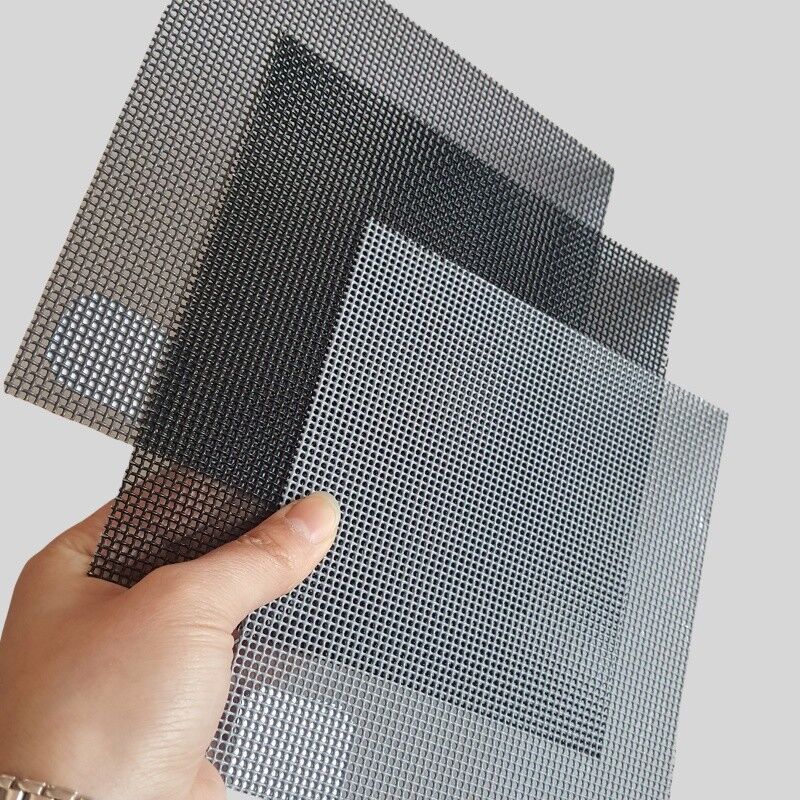

Marine Grade Stainless Steel Security Mesh

Quick Details

Material: 316 grade stainless steel
Surface Finish: Powder Coated
Color: Black, grey, white or as your demands
Wire Diameter: 0.80mm, 0.90mm, 1mm, 1.2mm
Usual Size: 750mmx2000mm; 750mm*2400mm; 900mm*2000mm; 900mm*2400mm; 1200mm*2000mm; 1200mm*2400mm

Product Description

Our marine grade security mesh is made from high tensile AISI316 stainless steel wire with a tolerance of ±0.01mm and tensile strength exceeding 900Mpa (900N). The precisely woven square holes create a strong, non-sliding surface that's flattened after weaving for optimal performance.

Designed for coastal environments with salty air, this 316 stainless steel mesh resists tea staining while providing excellent protection. It serves multiple functions including bush fire protection, anti-mosquito barrier, debris protection, and crime prevention.

Quality Specifications

Flat sheets with no surface waves
Square, clean holes without burrs
Precise hole size and wire thickness
No visible tiger lines on surface
Uniform color across entire surface
Free of surface contaminants
No folded wires on edges
Diagonal length tolerance within ±5mm
Edges precisely cut along one wire

Technical Specifications

Material	Mesh Size	Hole Size	Sheet Size
High tensile 316 Marine grade stainless steel with Akzo Nobel powder coating (Black only)	8mesh x 1.2mm	2.0mm	750mm x 2000mm/2400mm/3000mm/3500mm 900mm x 2000mm/2400mm/3000mm/3500mm 1000mm x 2000mm/2400mm/3000mm/3500mm 1200mm x 2000mm/2400mm/3000mm/3500mm 1500mm x 2000mm/2400mm/3000mm/3500mm
	9mesh x 1.0mm	1.8mm
	10mesh x 0.8mm	1.8mm
	10mesh x 0.9mm	1.6mm
	10mesh x 1.0mm	1.5mm
	11mesh x 0.8mm	1.5mm

Additional Options

Custom Sheet Sizes: Available upon request
Coating Colors: Black, Gray, White
Packing: 50 pieces per polywood box
