Pressure Wire Mesh Filter Leaf 5 Layers 98% Filter Rating

Model Number:	HH-filter leaf
MOQ:	10 pcs filter leaf
Price:	contact with us
Payment Terms:	L/C, T/T, Western Union, Alipay
Supply Ability:	1000 pcs per 30 days

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO9001-2015

Name:

Pressure Wire Mesh Filter Leaf

Material:

Stainless Steel Woven Wire Mesh

Shape:

Round Or Rectangular Filter Leaf Element

Leaf Consists:

5 Layers

Filter Rating:

98%

Height:

600-2000mm

Width:

540-2000mm

Application:

Inorganic Chemicals, Edible Oil Processing And So On

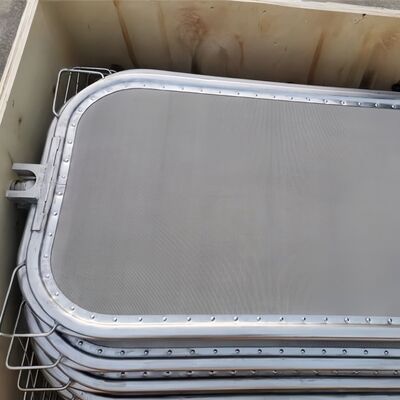

Packaging Details:

wooden case, could be customized

Supply Ability:

1000 pcs per 30 days

Highlight:

Pressure Wire Mesh Filter Leaf

woven Pressure Wire Mesh Filter

5Layers Wire Mesh Filter Leaf

Product Description

Pressure Wire Mesh Filter Leaf 5 Layers

Filter Leaves with A Longer Replacement Cycle

Quick details of Pressure wire mesh filter leaf

Material: AISI304, 316L Stainless steel woven mesh for filter leaves generally adopts plain weave, plain dutch weave, reverse plain dutch weave and reverse dutch twill weave
Pressure Filter rating: 98%
Shape: rectangle, square, round
Applicable filter type: vertical & horizontal pressure leaf filters

Description of pressure wire mesh filter leaf

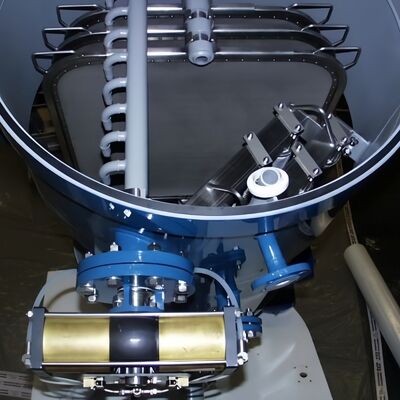

Pressure Filter leaves are filter elements installed in pressure leaf filters. Generally, 10 to 60 filter leaves are stacked inside a vertical or horizontal pressure leaf filter and filter leaves are the heart and the most critical part of pressure leaf filters.

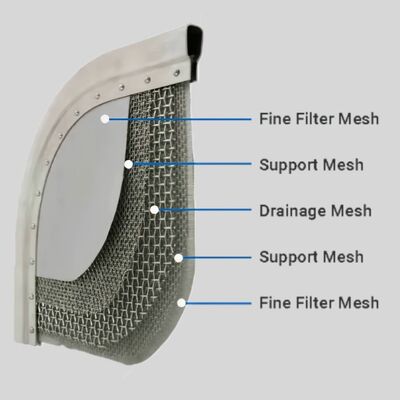

Every filter leaf consists of 5 layers of stainless steel woven mesh (2 layers of fine wire mesh, 2 layers of supporting mesh and 1 layer of drain mesh). All layers of wire mesh are bound together by a tubular frame and are made leak proof by machine riveting or bolting to offer a long service life. Longer replacement period means every filter leaf enjoys a longer service life and requires a lower maintenance cost.

Mesh Specification of filter leaf

Construction	Mesh	Wire Thickness (mm)	Aperture (μm)
1 layer of drainage mesh	Plain weave, 4 × 4	1.6	4750
2 layer of support mesh	Plain weave, 8 × 8	0.7	2470
2 layer of fine filter mesh	Plain weave, 60 × 60	0.18	240
	Plain dutch weave, 24 × 110	0.54	152
	Plain dutch weave, 24 × 128	0.58	75
	Plain dutch weave, 30 × 150	0.53	85
	Reverse plain dutch weave, 132 × 32	0.77	91
	Reverse dutch twill weave, 325 × 40	0.73	100

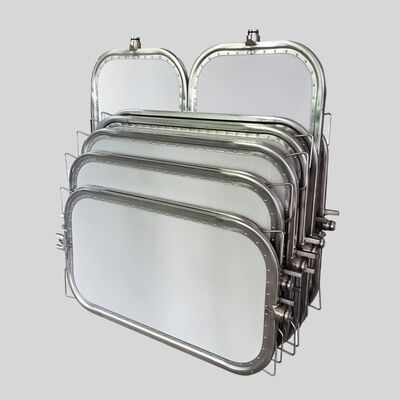

SAIFILTER Specification of Rectangular Filter Leaf Element

Model	Height (mm)	Width (mm)	Filter Area (m2)
FS-FL-92-54	920	540	1.00
FS-FL-92-60	920	600	1.10
FS-FL-92-61	920	610	1.12
FS-FL-92-62	920	620	1.14
FS-FL-125-45	1250	450	1.13
FS-FL-125-66	1250	660	1.65
FS-FL-125-72	1250	720	1.80
FS-FL-125-77	1250	770	1.93
FS-FL-135-90	1350	900	2.43
FS-FL-135-100	1350	1000	2.70

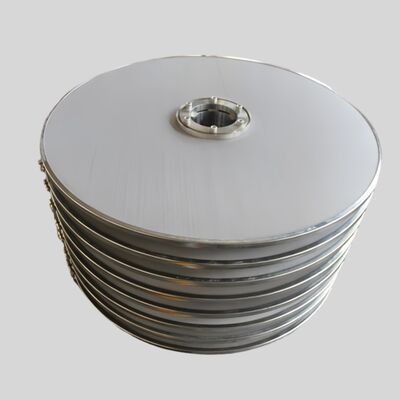

Specification of round shape wire mesh filter leaf

Model	OD (mm)	Filter area (m2)
LDF-600-R	600	0.28
LDF-800-R	800	0.50
LDF-1000-R	1000	0.79
LDF-1200-R	1200	1.13
LDF-1600-R	1600	2.01
LDF-1800-R	1800	2.54
LDF-2000-R	2000	3.14

Application of Pressure wire mesh filter leaf

Pressure leaf filters are a closed type automatic solid-liquid separation device and can work with variety of filtering aids. They apply to decolorization and filtration, pharmaceutical oil filtration, crystallization separation process, etc. in the production of oil and grease and chemicals and are mainly used in the following industries.

Edible oil processing (crude oil, bleached oil, winterized oil)
Gelatin processing
Pectin processing
Glucose, sweetener, sugar, juice production
Biodiesel production (pretreatment and polishing)
Liquid sulfur filtration
Chemicals and Oleochemicals
Organic and inorganic salts, amines, resins and APIs
