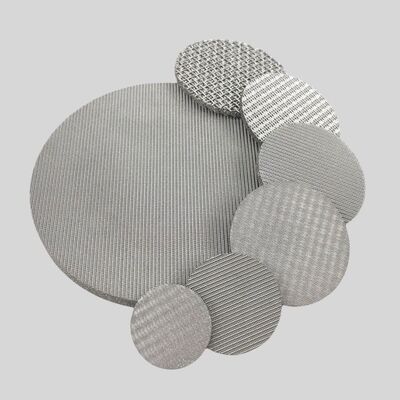

Sintered Wire Mesh Discs Filter 1-5mm 1-300 Micron

Model Number:	HH-Sintered Disc Filter
MOQ:	100 pcs Sintered Disc Filter
Price:	contact with us
Payment Terms:	L/C, T/T, Western Union, Alipay
Supply Ability:	1000 pcs per 30 days

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO9001-2015

Name:

Sintered Disc Filter

Material:

Stainelss Steel 304, 316, 316L, 2205, 2507, 904L; Hastelloy C-276, Monel 400, Titanium, Etc

Layers:

3 -7 Layers

Thickness:

1-5mm

Filter Shape:

Round, Rectangular, Special Shape, Etc

Micron Size:

1-300 Micron

Operating Temperature Range:

-200℃~600℃

Diameter:

More Than 25mm

Packaging Details:

wooden case, could be customized

Supply Ability:

1000 pcs per 30 days

Highlight:

Sintered Wire Mesh Discs Filter

stainless steel mesh discs 300 micron

5mm stainless steel mesh filter discs

Product Description

Sintered Wire Mesh Discs Filter 1-5mm 1-300 Micron

2 4 5 10 20 50 80 Micron Stainless Steel Fiber Sintered 316 316L 904L Sintered Wire Mesh Sintered Filter Mesh Sheet

Quick Details of Sintered Wire Mesh Disc

O.E.M Diameter of Disc: 5.0 - 1000mm
Micron Rating: 1μm - 300μm
Customize different Thickness: 0.4 - 15mm
Porosity: 30 - 50%
Particle removal efficiency: 99.95%
Material Option: Mono-layer, Multi-layer, Mixed Materials, 316L, 316 stainless steel
Heat resistance: -270 - 450℃ (-454 - 842ºF) continuous filtration
Differential pressures: 55 bar (798psi)

Description of Sintered Wire Mesh Disc

The Sintered wire mesh disc filter is made by pressing multi-layer stainless steel woven wire cloth then sintered together in vacuum furnace and can be processed into different shapes and sizes. Its filtration mechanism is surface filtration, and the mesh holes are smooth. The main technology of sintered mesh filter is that a large number of high-precision welding processes are adopted.

Popular Specification of Sintered Wire Mesh Disc

Filter Rating (u)	Protection layer	Protection layer	Filter layer	Reinforcement Mesh	Reinforcement Mesh	Thickness (mm)	Permeability (L/min/cm2)
1	200	400x3000	200	12x64	64x12	1.7	1.81
2	100	325x2300	100	12x64	64x12	1.7	2.35
5	100	200x1400	100	12x64	64x12	1.7	2.42
10	100	165x1400	100	12x64	64x12	1.7	3.00
15	100	165x1200	100	12x64	64x12	1.7	3.41
20	100	165x800	100	12x64	64x12	1.7	4.50
25	100	165x600	100	12x64	64x12	1.7	6.12
30	100	400	100	12x64	64x12	1.7	6.86
40	100	325	100	12x64	64x12	1.7	7.10
50	100	250	100	12x64	64x12	1.7	8.41
75	100	200	100	12x64	64x12	1.7	8.70
100	100	150	100	12x64	64x12	1.7	9.10
150	50+100+50+30+30+100+50					2.0	25.00
200	40+80+40+20+40+80+40					2.0	26.00

Application of Sintered Wire Mesh Disc

Sintered Wire Mesh Discs Filter can be used for both new systems and system retrofit upgrades. There are multiple installation designs available to suit your specific installation requirements. Depending on the operational conditions of different customers' applications, manufacturers can provide four types of Filter elements. These elements use porous metal membranes, metal fibers, and metal powders as filtering materials to tailor the most cost-effective filtration solution.

Benefits of Sintered Wire Mesh Discs Filter

High Resistance to Corrosion: One of the most important benefits of sintered metal filter discs is the high resistance to water and chemical corrosion.
Better Filtration: You are sure of getting rid of all the contaminants from the fluid you are filtering using the sintered metal filter discs.
High Thermal Shock: You can use the sintered metal filer discs in applications that have high thermal shock without worry of destruction.
Reasonable Pressure Drop: Sintered metal filter discs have numerous pores that will allow increased flow of fluids, thus resulting in reasonable pressure drops.
Great Pressure and Temperature Resistance: The metal used in the sintered metal filter disc manufacturing has very high mechanical strength. You can use it in high-temperature and high-pressure applications as it can withstand the force and heat from the fluids.
