Metal Perforation Plate Structured Packings Stainless Steel Brass 2304 2205

Model Number:	HH-Perforation plate Structured Packing
MOQ:	10 pcs Metal Perforation Structured Packing
Price:	contact with us
Payment Terms:	L/C, T/T, Western Union, Alipay
Supply Ability:	100000 pcs per 30 days

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO9001-2015

Name:

Metal Perforation Structured Packing

Appearance:

Corrugated Packing

Mould:

125Y -500Y

Diameter Range:

0.1m - 12m

Material:

Stainless Steel, Brass, 2304, 2205

Liquid Load:

0.2 To More Than 300 M3 / M2.h

Angle Of Inclination:

30 And 45

Crest Height:

6.3mm -24mm

Packaging Details:

wooden case, could be customized

Supply Ability:

100000 pcs per 30 days

Highlight:

Perforation metal structured packing

2304 structured packings

2205 structured packing

Product Description

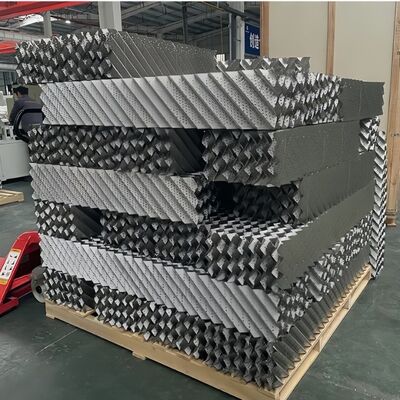

Metal Perforation Plate Structured Packings Stainless Steel Brass 2304 2205

Metallic Perforation Corrugated Structured Packing as Tower Packing

Quick Details of Metal Perforation Structured Packing

Metal Perforated corrugated packing with wide range of applications
Diameter range: 0.1-12m
Pressure range: Vacuum to high pressure
Liquid load: 0.2 to more than 300 m³/m².h
Compatible systems: Ethyl benzene/styrene, Fatty acid, cyclohexanone/cyclohexanol, caprolactam, Absorption desorption
Material options: Stainless steel, brass, 2304, 2205

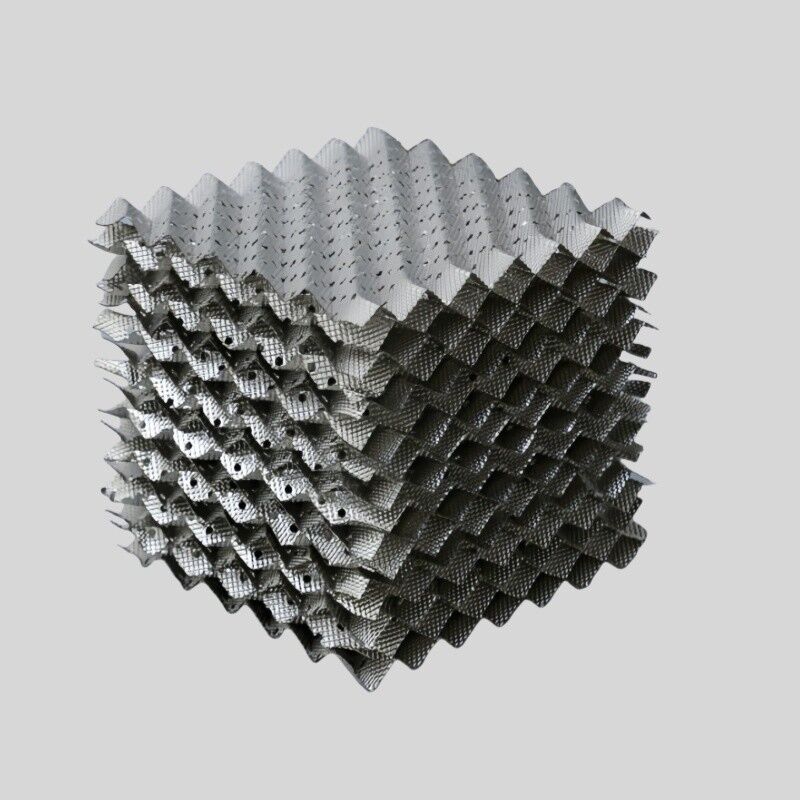

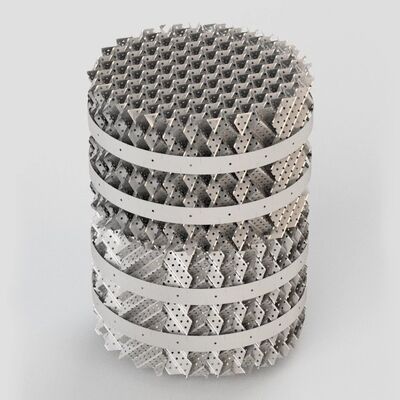

Description of Metal Perforation Plate Structured Packing

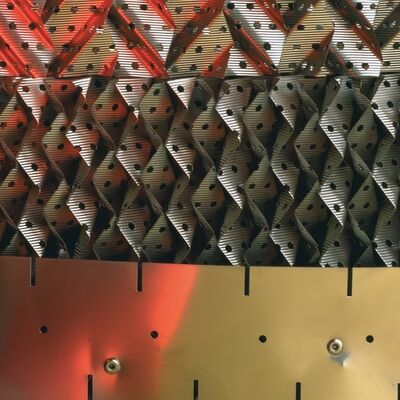

Metal Perforated plate structured packing is manufactured from various metal plate materials. The plates are perforated to create a series of 3-6 mm holes and then corrugated. Metal Protruded Structured Packing is a specialized variant of Perforated Plate Structured Packing, featuring protrusions on the plate surface to enhance filtering efficiency.

Available in two corrugation angle configurations: X Type (30° angle) offers lower pressure drop, while Y Type (45° angle) provides superior mass transfer properties.

Material options include Stainless Steel 304, 316L, as well as Brass, 2304, and 2205 perforated metal structured packings.

Popular Specifications of Metal Perforated Plate Structured Packing

Model	Mould	Surface Area (m²/m³)	Bulk Density (kg/m³)	Voidage (%)	Pressure Drop (Pa/m³)	Theoretical Plate Number (m⁻¹)
HH-M-PSP-125Y	125Y	125	100	98	200	1-1.2
HH-M-PSP-250Y	250Y	250	200	97	300	2-2.5
HH-M-PSP-350Y	350Y	350	280	94	350	3.5-4
HH-M-PSP-500Y	500Y	500	360	92	400	4-4.5
HH-M-PSP-125X	125X	125	100	98	140	0.8-0.9
HH-M-PSP-250X	250X	250	200	97	180	1.6-2
HH-M-PSP-350X	350X	350	280	94	230	2.3-2.8
HH-M-PSP-500X	500X	500	360	92	280	2.8-3.2

Applications of Metal Perforation Plate Structured Packing

Metal perforated plate corrugated packing is extensively used in unit operations including rectification, absorption and extraction. Suitable for tower diameters ranging from 80-200 mm up to 13 m, with liquid spray density from 0.2 to 200 m³/(m²•h) and operating pressures from vacuum to high pressure.

This versatile structured packing is ideal for chemical industry, fertilizer production, oil refining, petrochemical processing, and natural gas applications.
