| Model Number: | HH-SPECIAL |
| MOQ: | 1 square meters |
| Price: | CONTACT US |
| Payment Terms: | L/C, T/T, Western Union, ALIPAY |
| Supply Ability: | 1000 ROLLS PER 20 DAYS |
Titanium Grade 1 (TA1, UNS R50250): The most ductile and softest titanium with good corrosion resistance.
Titanium Grade 2 (TA2, UNS R50400): Moderate strength with excellent corrosion resistance.
Black Titanium Mesh: Pure titanium wire with graphite coating on the surface.
Bright/Clean Titanium Mesh: Pure titanium wire without graphite coating.
We can customize titanium wire cloth to your requirements including cutting and forming. For example, we can produce titanium pipe screens by cutting titanium woven wire mesh into filter discs.

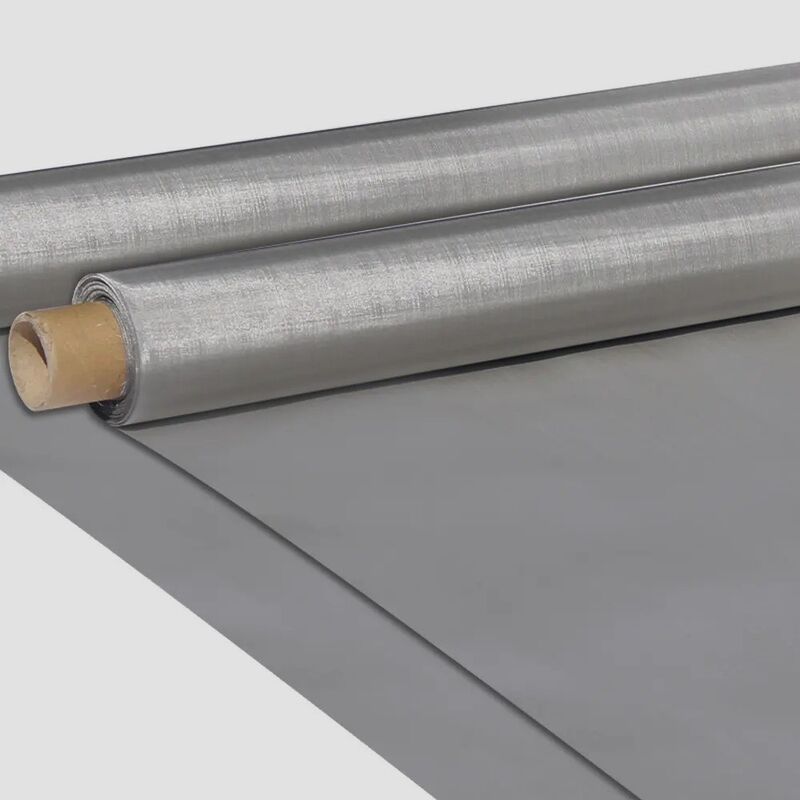

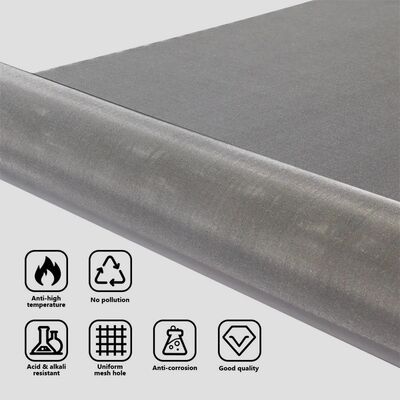

Also known as titanium wire mesh, titanium wire cloth, or titanium wire mesh screen, our woven titanium mesh is crafted from high-grade titanium strands, offering exceptional performance characteristics.
| Mesh (Wires/in.) | Wire Diameter (in.) | Width of Opening (in.) | Open Area (%) |
|---|---|---|---|
| 9 x 9 | 0.0320 | 0.0790 | 50.60 |
| 10 x 10 | 0.0350 | 0.0650 | 42.30 |
| 10 x 10 | 0.0300 | 0.0700 | 49.00 |
| 10 x 10 | 0.0250 | 0.0750 | 56.30 |
| 12 x 12 | 0.0110 | 0.0723 | 75.30 |
| 14 x 14 | 0.0160 | 0.0550 | 60.20 |
| 16 x 16 | 0.0060 | 0.0565 | 81.70 |
| 18 x 18 | 0.0100 | 0.0460 | 67.40 |
| 18 x 18 | 0.0110 | 0.0445 | 64.40 |
| 18 x 18 | 0.0160 | 0.0400 | 50.8 |
| 20 x 20 | 0.0030 | 0.0470 | 88.40 |
| 20 x 20 | 0.0200 | 0.0300 | 36.00 |
| 20 x 20 TW | 0.0160 | 0.0340 | 46.20 |
| 24 X 24 | 0.0100 | 0.0320 | 57.90 |
| 24 X 24 | 0.0118 | 0.0290 | 51.40 |
| 26 X 26 | 0.0100 | 0.0233 | 54.90 |
| 30 X 30 | 0.0100 | 0.0210 | 49.00 |
| 32 X 32 | 0.0100 | 0.0206 | 46.50 |
| 35 X 35 | 0.0080 | 0.0200 | 51.80 |
| 40 X 40 | 0.0050 | 0.0150 | 64.00 |
| 40 X 40 | 0.0100 | 0.0110 | 36.00 |
| 50 X 50 | 0.0090 | 0.0110 | 30.30 |
| 50 X 50 TW | 0.0040 | 0.0160 | 64.00 |
| 60 X 60 TW | 0.0090 | 0.0077 | 21.30 |
| 90 X 90 | 0.0040 | 0.0071 | 41.00 |
| 100 X 100 | 0.0020 | 0.0080 | 64.00 |
| 120 X 120TW | 0.0040 | 0.0043 | 27.00 |
| 150 X 150TW | 0.0027 | 0.0040 | 35.50 |
