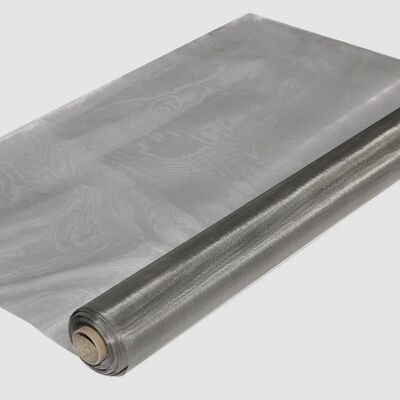

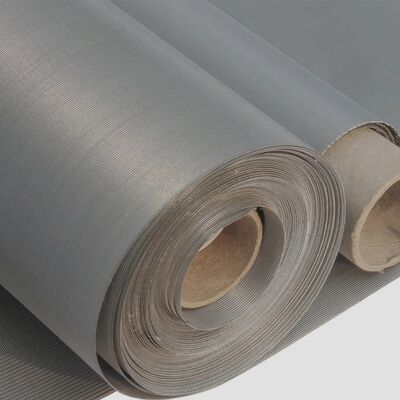

Corrosion Resistant Special Filter Mesh Roll 0.914m 1m 1.22m 1.5m

Model Number:	HH-SPECIAL
MOQ:	1 square meters
Price:	CONTACT US
Payment Terms:	L/C, T/T, Western Union, ALIPAY
Supply Ability:	1000 ROLLS PER 20 DAYS

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO9001-2015

Name:

Corrosion-resistant Special Filter Mesh

Material:

Titanium Wire,Nickel Wire,Inconel Wire,Monel Wire,FeCrAl Wire Etc

Mesh Roll:

0.914m,1m,1.22m 1.5m Or Others

Reversed Dutch Weave:

48x10mesh To 720x150mesh

Twill Weave:

20x20mesh To 635x635mesh

Plan Weave:

20x20mesh To 250x250mesh

Packaging Details:

Waterproof bag covers the wire mesh roll . box or wooden case.

Supply Ability:

1000 ROLLS PER 20 DAYS

Highlight:

Corrosion Resistant Special Filter Mesh

Special Filter Mesh Roll

Special Filter Mesh 1m

Product Description

Corrosion-resistant Special Filter Mesh

Quick Details

Material: 304 316 310 410 430 stainless steel wire, copper wire, Titanium wire, Nickel wire, Inconel wire, Monel wire, FeCrAl wire etc.

Plain weave mesh: 20X20mesh to 250X250 mesh

Twill weave mesh: 20x20mesh to 635x635mesh

Plain dutch weave: 10X64mesh to 80X700mesh

Reversed dutch weave: 48x10mesh to 720x150mesh

Mesh roll width: 0.914m, 1m, 1.22m, 1.5m or others

Special size and specification are available according to customer requirements.

Description

Special wire filter mesh has several weaving types determined by customer requirements, including material, wire diameter, mesh size, width and length. Available in four weaving types: plain weave, twill weave, Dutch plain weave or Dutch twill weave.

Weave Types

Plain weave: The most common preparation method, widely used in industrial production and civil life (1x1mesh to 635x635mesh).
Twill weave: Primarily used for 150 mesh to 600 mesh stainless steel wire mesh.
Dutch weave: Provides good tensile strength, mainly used for liquid and slurry filtration.

Applications

Sieving and filtering in acid/alkali environments
Petroleum industry as mud mesh
Chemical fiber industry as screen mesh
Plating industry as acid cleaning mesh

Specifications

Mesh/inch	Wire Diameter (mm)	Aperture (mm)	Mesh/inch	Wire Diameter (mm)	Aperture (mm)
2mesh	1.80	10.90	60mesh	0.15	0.273
3mesh	1.60	6.866	70mesh	0.14	0.223
4mesh	1.20	5.15	80mesh	0.12	0.198
5mesh	0.91	4.17	90mesh	0.11	0.172
6mesh	0.80	3.433	100mesh	0.10	0.154
8mesh	0.60	2.575	120mesh	0.08	0.132
10mesh	0.55	1.990	140mesh	0.07	0.111
12mesh	0.50	1.616	150mesh	0.065	0.104
14mesh	0.45	1.362	160mesh	0.065	0.094
16mesh	0.40	1.188	180mesh	0.053	0.088
18mesh	0.35	1.060	200mesh	0.053	0.074
20mesh	0.30	0.970	250mesh	0.04	0.061
26mesh	0.28	0.696	300mesh	0.035	0.049
30mesh	0.25	0.596	325mesh	0.03	0.048
40mesh	0.21	0.425	350mesh	0.03	0.042
50mesh	0.19	0.318	400mesh	0.025	0.0385

Width of Stainless Steel Wire Mesh: 0.6m-4m

Plain-Dutch Weaving Mesh Sizes

Mesh count(mesh)	Wire diameter(mm)	Micron
7x40	0.9x0.71	350
8x45	0.8x0.6	310
8x62	0.63x0.45	300
10x90	0.45x0.28	250
12x64	0.56x0.4	210
14x110	0.355x0.25	180
16x120	0.28x0.224	145
20x140	0.315x0.2	133
24x110	0.35x0.25	120
25x140	0.28x0.20	100
30x150	0.25x0.18	80
35x180	0.224x0.16	70
40x200	0.20x0.14	60
50x250	0.14x0.11	53
55x280	0.14x0.10	50
60x300	0.11x0.08	36
70x350	0.11x0.08	35
70x400	0.11x0.007	32
70x430	0.11x0.065	30
80x400	0.10x0.065	40
80x780	0.1x0.07	30
100x1200	0.065x0.023	23

Twill-Dutch Weaving Mesh Sizes

Mesh count(mesh)	Wire diameter(mm)	Micron
70x600	0.14x0.09	30
80x680	0.112x0.08	28
90x780	0.1x0.07	25
101x900	0.10x0.063	20
127x1400	0.07x0.05	17
160x1400	0.063x0.04	15
165x600	0.071x0.05	28
165x800	0.071x0.05	25
165x1100	0.071x0.04	20
165x1400	0.071x0.04	16
200x600	0.071x0.06	15
200x800	0.071x0.06	14
200x1400	0.071x0.04	12
200x1600	0.05x0.032	10
200x1800	0.045x0.03	9
250x2000	0.04x0.028	8
300x2100	0.036x0.025	6
325x2300	0.036x0.024	5
400x2700	0.028x0.02	4
400x2800	0.035x0.02	3
500x3200	0.03x0.019	2
500x3500	0.025x0.015	1
