Shiny Silver Zirconium Wire Mesh For Cathode Protection Industry

Model Number:	HH-ZIR
MOQ:	ONE SQUARE METER
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	30000 SQUARE METERS PER 20 DAYS

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO9001-2015

Name:

Zirconium Wire Mesh

Melting Point:

1852

Mesh:

20-300

Mesh WIDTH:

0.2M-1.2M

Material:

ZR-2, ZR-4, R60702, R60705

Roll Length:

10-30 Meters

Packaging Details:

Waterproof Paper+Plastic Film+paper tube

Supply Ability:

30000 SQUARE METERS PER 20 DAYS

Highlight:

Industry zirconium mesh

Shiny Silver Zirconium Wire Mesh

R60705 zirconium mesh

Product Description

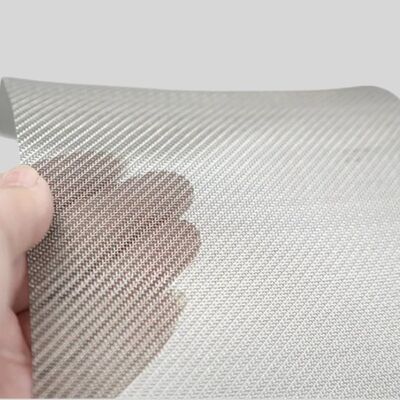

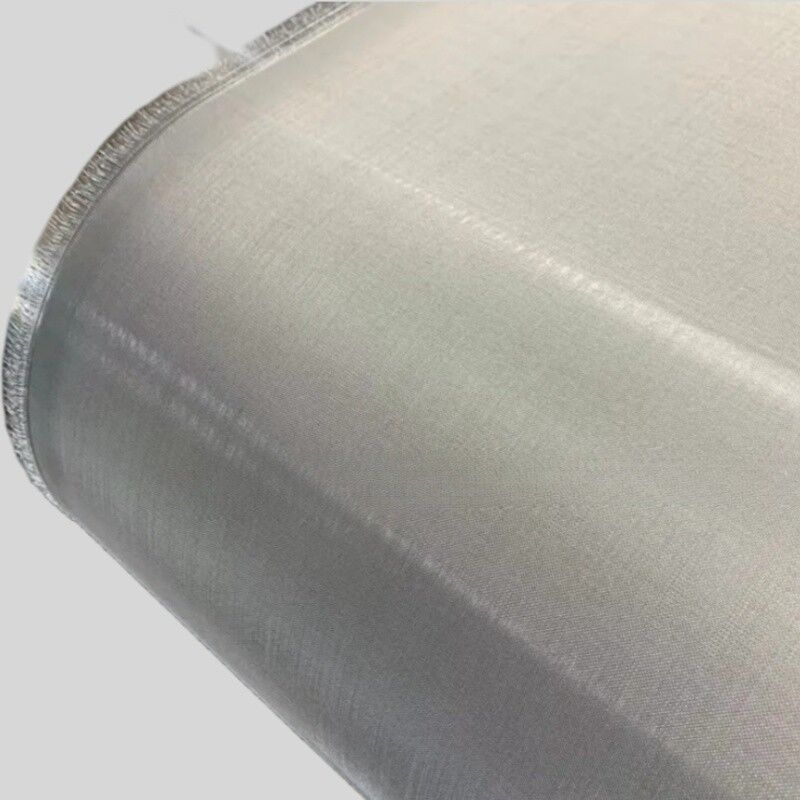

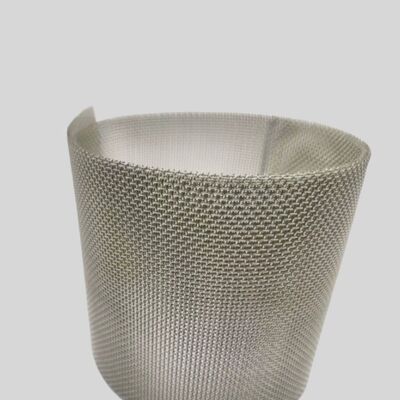

Shiny Silver Zirconium Wire Mesh For Cathode Protection Industry

Quick Details of Zirconium Wire Mesh

Material: 99.98% Zr
Mesh Pattern: 20-300
Weave Type: Plain and twill weave
Mesh Width: 50cm-1.2m

Description of Zirconium Wire Mesh

Zirconium is a shiny silver-grey metal that is highly ductile and extremely resistant to corrosion and heat. Its symbol in the periodic table is Zr, and its atomic number is 40. It melts at 1855°C and boils at 4409°C, and it is not corroded by acids, alkalis or seawater.

Zirconium (Zr) is a silver metal with a density of 6.52 g/cm³. Zirconium has been used to make electrode components, foils, flanges bolts, tubes and rods for special applications. With a high melting point of 1855°C (3371°F) and a small neutron absorption cross-section, zirconium is excellent for the nuclear power industry.

Zirconium mesh takes on the look of a silvery metal, as do most zirconium products. We also produce disc, granules, ingot, pellets, pieces, powder, rod, wire, sputtering target and in numerous other forms and custom shapes.

Specification of Zirconium Wire Mesh

Mesh Count	Wire Diameter	Mesh Hole Size	Thickness	Maximum Width	Opening Rate
20 × 20	0.0200" (0.5080mm)	0.0300" (0.7600mm)	1.02mm	2000mm	35.9%
20 × 20	0.0160" (0.4060mm)	0.0340" (0.8600mm)	0.81mm	2000mm	46.1%
24 × 24	0.0140" (0.3560mm)	0.0277" (0.7000mm)	0.71mm	2000mm	43.9%
30 × 30	0.0130" (0.3300mm)	0.0203" (0.5200mm)	0.66mm	2000mm	37.4%
30 × 30	0.0120" (0.3050mm)	0.0213" (0.5400mm)	0.61mm	2000mm	40.8%
30 × 30	0.0090" (0.2290mm)	0.0243" (0.6200mm)	0.46mm	2000mm	53.3%

Chemical Composition

Zr	Sn	Fe	Ni	Cr	O	Others
Balance	1.2-1.7	0.07-0.2	0.03-0.08	0.05-0.15	0-0.16	0-0.1

Applications of Zirconium Wire Mesh

Anodes for cathode security
Combined metal oxide anodes for use in heat exchangers, oil & gas pipe lines
Zirconium mesh ultra thin membranes
Aerospace applications
Military applications
Nuclear plants

Zirconium is a hard and bright metal that easily dissolves in warm and concentrated acids but is insoluble in water and cold acids. It is wonderfully corrosion resistant and mildly toxic. At elevated temperatures, it interacts with non-metallic elements to develop solid compounds.
