Home Products

Heat Shields FeCrAl Wire Mesh 1Cr13Al4 1Cr12Al4 0Cr21Al6 0Cr25Al5 0Cr21Al6Nb 0Cr27Al7Mo2

Model Number:	HH-FCW
MOQ:	1 square meter
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	50000 square meters per 20 days

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO9001-2015

Name:

FeCrAl Wire Mesh

Usage:

Heat Shields

Material:

1Cr13Al4, 1Cr12Al4, 0Cr21Al6, 0Cr25Al5, 0Cr21Al6Nb, 0Cr27Al7Mo2

Mesh Count:

8 Mesh - 80 Mesh

Wire Dia:

21G - 43G

Weave Type:

Plain Weave And Twill Weave

Packaging Details:

plastic wooden bags, +wooden case

Supply Ability:

50000 square meters per 20 days

Highlight:

Heat Shields fecral wire mesh

FeCrAl Wire Mesh 1Cr13Al4

FeCrAl Wire Mesh 1Cr12Al4

Product Description

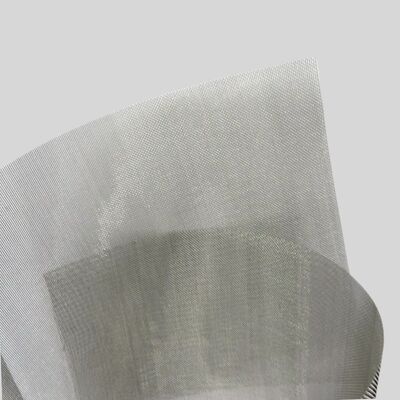

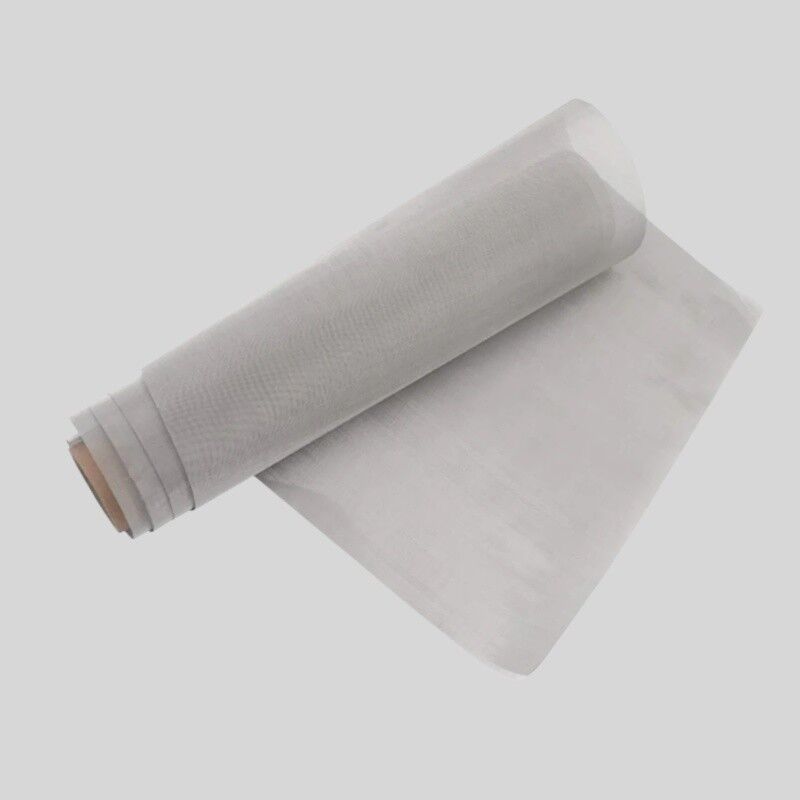

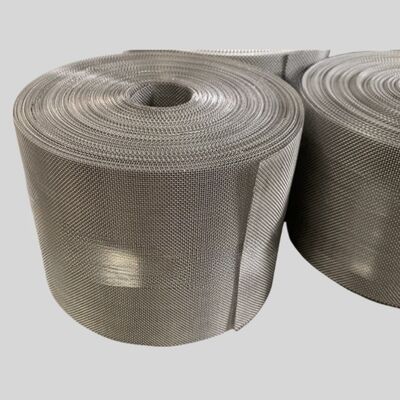

Heat Shields FeCrAl Wire Mesh

Quick Details

Material: 1Cr13Al4, 1Cr12Al4, 0Cr21Al6, 0Cr25Al5, 0Cr21Al6Nb, 0Cr27Al7Mo2
Mesh size: 8 mesh - 80 mesh
Wire diameter: 21G - 43G
Weaving type: plain weave and twill weave

Maximum Working Temperature

1Cr13Al4 - 950°C
1Cr21Al4 - 1100°C
0Cr21Al6 - 1250°C
0Cr23Al5 - 1250°C
0Cr25Al5 - 1250°C
0Cr21Al6Nb - 1350°C
0Cr27Al7Mo2 - 1400°C

Product Description

FeCrAl alloy wire mesh is a ferritic iron-chromium-aluminium (FeCrAl) alloy used primarily in electrical resistance heating elements and other high-temperature settings, up to 2370°F. In addition to other beneficial properties, FeCrA wire cloth offers both excellent oxidation resistance and high resistivity. It is often chosen over Nichrome 80/20, one of the oldest resistance heating alloys, when higher temperature use, longer life, and higher resistivity levels are required.

Specifications

Item	Mesh	Wire Gauge	Aperture (mm)	Wire Diameter (mm)	Roll Width (m)	Weight (kg/m2)
HHFC-01	8 (T)	21	2.375	0.8	1.0	2.5
HHFC-02	8 (T)	22	2.475	0.7	1.0	1.84
HHFC-03	10 (T)	23	1.94	0.6	0.6	1.69
HHFC-04	12 (T)	24	1.557	0.559	1.0	1.8
HHFC-05	17 (T)	24	0.94	0.55	0.6	2.57
HHFC-06	20 (P)	33	1.02	0.25	1.0	0.587
HHFC-07	20 (P)	32	1.0	0.27	1.0	0.685
HHFC-08	20 (P)	30	0.97	0.30	1.0	0.846
HHFC-09	25 (P)	30	0.71	0.30	1.0	1.125
HHFC-10	30 (P)	38	0.69	0.15	1.0	0.30
HHFC-11	34 (P)	33	0.49	0.25	1.0	1.06
HHFC-12	40 (P)	35	0.425	0.21	1.0	0.83
HHFC-13	40 (T)	35	0.425	0.21	1.0	0.83
HHFC-14	44 (T)	35	0.367	0.21	1.0	0.88
HHFC-15	60 (T)	38	0.273	0.15	1.0	0.66
HHFC-16	80 (P)	43	0.227	0.09	1.0	0.324

Key Characteristics

Ferritic iron-chromium-aluminium (FeCrAl) alloy
Nominal composition of 22% chromium, 4.8% aluminum, and iron balance
Very magnetic in all conditions
Excellent oxidation resistance and high resistivity
Good resistance to sulfur and carburizing settings
Useful in high-temperature settings up to 2370°F
Can be cut, formed, and welded
