60 80 Mesh Corrosion Resistant Titanium Wire Mesh ASTM B863 Standard

Model Number:	HH-TAN
MOQ:	one square meters
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	30000 sqaure meters per 20 days

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO9001-2015

Name:

Titanium Wire Mesh

Material:

TA1 TA2 GR1 GR2 R50250, Titanium Alloy Wire

Wire Dia:

0.002"–0.035"

Ti Content (%):

99.6

Color:

Black/bright

Usage:

Shipbuilding,chemical Filter,desalination Filter,medicine Filtration

Standard:

ASTM B863

Surface Finished:

Pickled, Black

Packaging Details:

Packed in roll, wrapped with moister-proof paper, put into wooden cases

Supply Ability:

30000 sqaure meters per 20 days

Highlight:

80 Mesh Titanium Wire Mesh

Corrosion Resistant Titanium Wire Mesh

Titanium Wire Mesh ASTM B863

Product Description

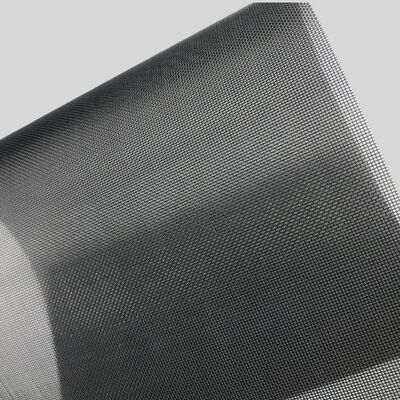

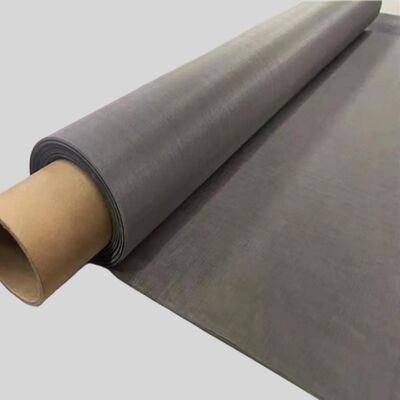

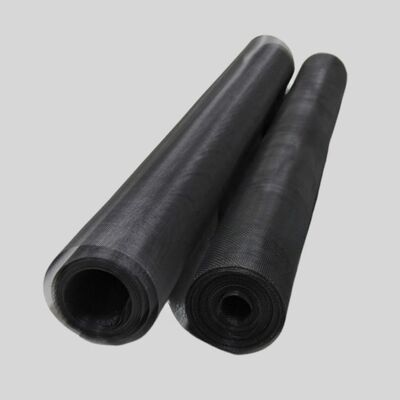

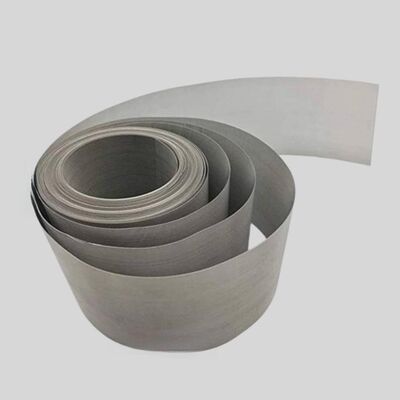

60-80 Mesh Corrosion Resistant Titanium Wire Mesh

Corrosion Resistant Plain Weave Titanium Metal Mesh Fabric

Quick Details

Weaving Type: Plain/Twill/Dutch
Width: 0.9m, 1m, 1.2m (Customizable)
Length: 30m (Customizable)
Chemical Composition: C: 0.10%, Fe: 0.30%, H: 0.015%, N: 0.05%, O: 0.35%, Ti: Rem. Other each: 0.1; Total 0.04 max.

Product Description

Titanium wire mesh is a high-performance metal mesh with exceptional properties. It combines low density with superior strength compared to other metal meshes. High purity titanium mesh forms a dense, inert oxide film in corrosive environments, providing outstanding resistance to seawater, wet chlorine gas, chlorite solutions, nitric acid, chromic acid, metal chlorides, and organic salts.

Titanium wire mesh offers excellent temperature stability, electrical conductivity, and is non-magnetic and non-toxic. These properties make it ideal for filter elements, anode meshes & baskets, collector meshes, shielding meshes, mist eliminators, demister pads, and tower packing applications.

Specifications

Plain & Twill Weave Tantalum Woven Wire Mesh/Cloth

Item	Mesh	Wire Diameter	Weaving Type	Mesh Opening	Open Area
Tan-880.02	8 × 8	0.0200" (0.508mm)	Plain	0.1050" (2.6670mm)	70.60%
Tan-14140.016	14 × 14	0.0160" (0.4064mm)	Plain	0.0554" (1.4072mm)	60.20%
Tan-30300.003	30 × 30	0.0030" (0.0762mm)	Plain	0.0303" (0.7696mm)	82.80%
Tan-35350.0078	35 × 35	0.0078" (0.1981mm)	Twill	0.0208" (0.5283mm)	52.90%
Tan-50500.003	50 × 50	0.0030" (0.0762mm)	Plain	0.0170" (0.4318mm)	72.30%
Tan-80800.003	80 × 80	0.0030" (0.0762mm)	Plain	0.0095" (0.2413mm)	57.80%
Tan-1001000.003	100 × 100	0.0030" (0.0762mm)	Twill	0.0070" (0.1778mm)	49.00%

Dutch Weave of Tantalum Woven Wire Mesh/Cloth

Item	Mesh Size (wire/inch)	Wire Diameter
Tan-1264	12 × 64	0.0228"/0.0157" (0.580/0.400mm)
Tan-24110	24 × 110	0.0142"/0.0098" (0.360/0.250mm)
Tan-1488	14 × 88	0.0197"/0.0130" (0.500/0.330mm)
Tan-14110	14 × 110	0.0157"/0.0106" (0.400/0.270mm)
Tan-30150	30 × 150	0.0071"/0.0055" (0.180/0.140mm)

Special sizes are available for customization.

Key Features

Exceptional resistance to acids and alkalis
Superior anti-damping performance
High tensile yield strength
Low elasticity modulus
Non-magnetic and non-toxic properties
Excellent temperature stability and conductivity
Extremely high melting point (up to 2996°C/5425°F)

Applications

Industries: Military, Mechanical, Environmental, Electroplating, Seawater Conversion, Satellite & Aerospace, Battery, Shipbuilding, Petroleum, Medical & Surgical

Uses: Filter elements, Battery skeleton mesh, Inert anodes, Electromagnetic shielding, Mist eliminators, Demister pads, Tower packing, Skull repair and reconstruction
