200 150 100 Micron Pure Silver Wire Mesh 0.15mm - 0.35mm For Electric Power

Model Number:	HH-SLW
MOQ:	1 square meter
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	1000 square meters per 20 days

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO9001-2015

Name:

Silver Wire Mesh

Wire Dia:

0.15mm - 0.35mm

Mesh Number:

20-60 Mesh

Roll Length:

30 Meter, 50meters

Purity:

99.6% - 99.9%

Chemical Composition:

Ag – 99.95% Cu – 0.05% P – 0.002%

Packaging Details:

plastic wooden bags +wooden case/carton pipes

Supply Ability:

1000 square meters per 20 days

Highlight:

Electric Power silver wire mesh

100 Micron silver wire mesh

Silver Wire Mesh 0.15mm

Product Description

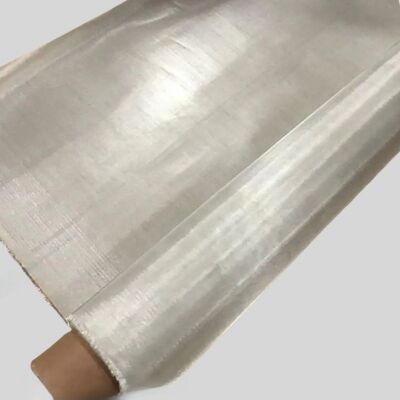

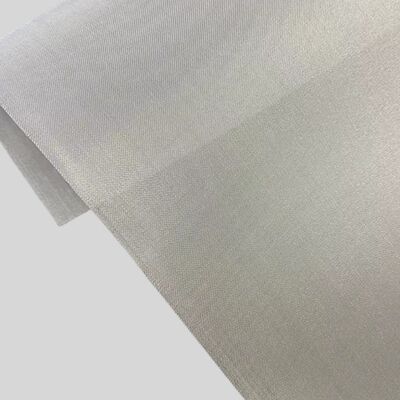

200 150 100 Micron Pure Silver Wire Mesh For Electric Power

99.99% Silver Metallic Fabric/Pure Silver Mesh/Sterling Silver Mesh Sheet

Quick Details of Silver Wire Mesh

Material: Silver wire
Purity: 99.6% - 99.9%
Technique: Woven
Weaving type: Plain weave and twill weave
Wire diameter: 0.15mm - 0.35mm
Mesh count: 20 mesh - 60 mesh
Roll length: 30m or 50m
Chemical Composition: Ag - 99.95%, Cu - 0.05%, P - 0.002%

Description of Silver Wire Mesh

Silver wire mesh is manufactured from pure silver wire, woven through plain weave and twill weave into square meshes. This white glossy metal wire mesh is made from 99.99% pure silver wire, offering exceptional softness and ductility second only to gold.

Silver wire mesh provides the best electrical and thermal conductivity among all wire meshes. It does not react with water or atmospheric oxygen, exhibiting excellent corrosion resistance and chemical stability. In corrosive environments, it forms a protective oxide film on the surface, similar to nickel wire mesh.

The oxide layer has high adhesion and inertia, significantly enhancing corrosion resistance and acid/alkali resistance. This makes silver wire mesh particularly stable in environments such as seawater, wet chlorine, chlorite and hypochlorite solutions, nitric acid, metal chromates, and organic salts.

Specification of Silver Wire Mesh

Item	Mesh	Wire Diameter (inch)	Wire Diameter (mm)	Opening (inch)	Opening (mm)	Area %
HHSL-01	20 mesh	0.014	0.35	0.036	0.91	51.8
HHSL-02	20 mesh	0.009	0.23	0.041	1.04	67.2
HHSL-03	24 mesh	0.014	0.35	0.028	0.71	44.2
HHSL-04	28 mesh	0.01	0.25	0.026	0.66	51.8
HHSL-05	30 mesh	0.011	0.28	0.022	0.55	44.8
HHSL-06	30 mesh	0.0065	0.16	0.027	0.68	64.8
HHSL-07	35 mesh	0.012	0.3	0.017	0.43	33.8
HHSL-08	35 mesh	0.01	0.25	0.019	0.48	42.4
HHSL-09	40 mesh	0.01	0.25	0.015	0.38	36
HHSL-10	40 mesh	0.0095	0.24	0.016	0.4	38.4
HHSL-11	50 mesh	0.009	0.23	0.011	0.28	30.3
HHSL-12	50 mesh	0.008	0.20	0.012	0.3	36
HHSL-13	60 mesh	0.0075	0.19	0.009	0.22	30.5
HHSL-14	60 mesh	0.0059	0.15	0.011	0.28	40.2

Applications of Silver Wire Mesh

Filtration material
Battery collector mesh
Electrodes skeleton mesh
Battery skeleton mesh
Experimental materials
Arrangement container
Decorative design

Silver wire mesh offers excellent conductivity, long battery life, and a high energy-to-weight ratio. Its reliable and safe performance makes it ideal for high-precision filtering equipment. The bright white surface (with graphite coating removed) is particularly suitable for making electrode mesh, battery collection mesh, and various fine chemical liquid filters.
