| Model Number: | HH-DROPE |
| MOQ: | 10 square meters |
| Payment Terms: | L/C,T/T,Western Union,MoneyGram |
| Supply Ability: | 5000 rolls per 25 days |

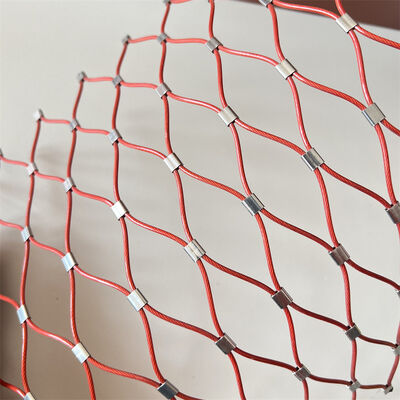

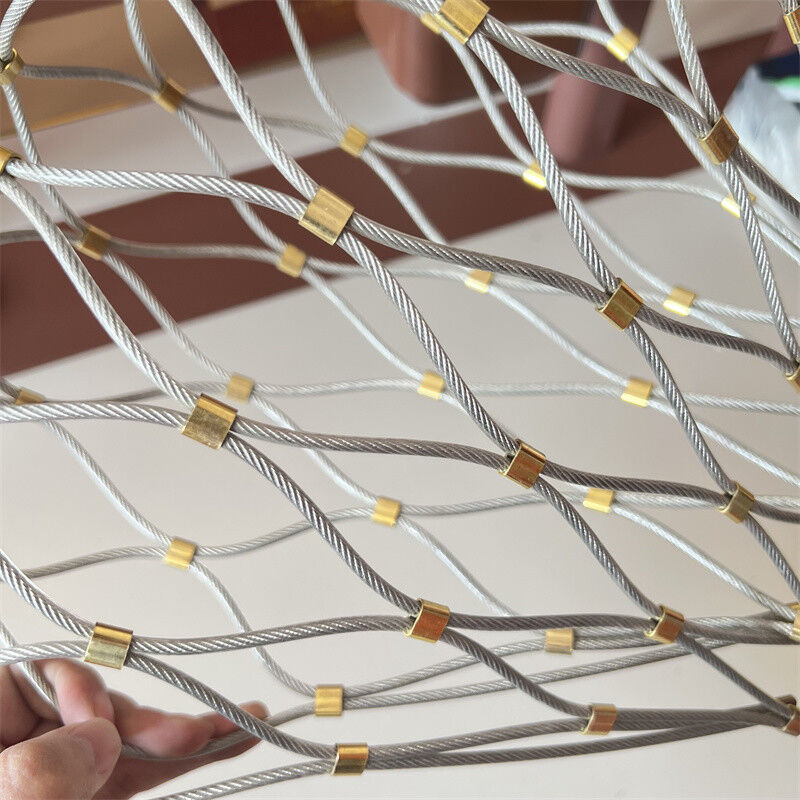

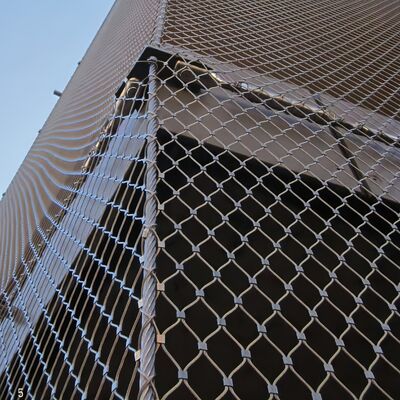

Architectural decorative rope mesh offers infinite design possibilities for both indoor and outdoor applications. Made from high-quality stainless steel, this mesh requires minimal maintenance while providing exceptional durability and flexibility.
| Rope Diameter | Mesh Opening Size | Nominal Break |
|---|---|---|
| 1/8 inch (3.2 mm) | 2×2 inch (51×51 mm) | 1600 lbs |
| 3/32 inch (2.4 mm) | 3×3 inch (76×76 mm) | 920 lbs |
| 3/32 inch (2.4 mm) | 2×2 inch (51×51 mm) | 920 lbs |
| 5/64 inch (2.0 mm) | 2×2 inch (51×51 mm) | 676 lbs |
| 5/64 inch (2.0 mm) | 1-1/2×1-1/2 inch (38×38 mm) | 676 lbs |
| 1/16 inch (1.6 mm) | 1-1/2×1-1/2 inch (38×38 mm) | 480 lbs |
| 1/16 inch (1.6 mm) | 1×1 inch (25.4×25.4 mm) | 480 lbs |
| 3/64 inch (1.2 mm) | 1-1/2×1-1/2 inch (38×38 mm) | 270 lbs |
| 3/64 inch (1.2 mm) | 1×1 inch (25.4×25.4 mm) | 270 lbs |
Note: Rope mesh products are supplied in two main series according to different weave-types: Inter-woven (Knotted) and Ferrule Type. Various styles and types are available based on materials, ferrules, weaving methods, and applications.
