| Model Number: | HH-BOR |
| MOQ: | 10 square meters |
| Payment Terms: | T/T,Western Union,MoneyGram |
| Supply Ability: | 5000 rolls per 25 days |

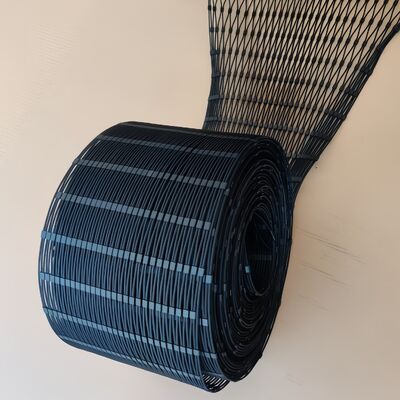

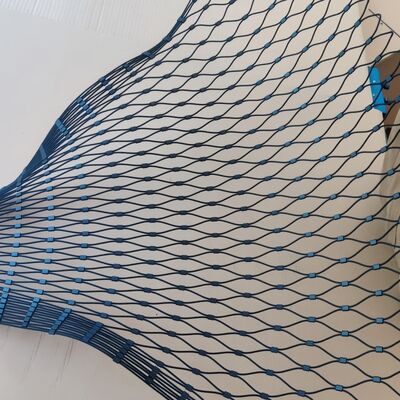

Black oxide wire rope mesh is a specialized stainless steel mesh featuring a dark, non-reflective finish achieved through black oxide surface treatment. This enhances both functionality and aesthetics, providing a secure, durable enclosure that blends seamlessly with natural environments.
The mesh undergoes a black oxide chemical treatment where it's submerged in a bath containing alkaline salts and oxidizing agents at high temperatures. This creates a black, magnetite (Fe₃O₄) layer that bonds permanently to the stainless steel surface.
| Wire Rope Construction | Min. Breaking Load | Wire Rope Diameter | Aperture |
|---|---|---|---|
| 7x19 | 8.735 | 1/8" (3.2mm) | 4" x 4" (102 x 102mm) |
| 7x19 | 8.735 | 1/8" (3.2mm) | 3" x 3" (76 x 76mm) |
| 7x19 | 8.735 | 1/8" (3.2mm) | 2" x 2" (51 x 51mm) |
| 7x7 | 5.315 | 3/32" (2.4mm) | 4" x 4" (102 x 102mm) |
| 7x7 | 5.315 | 3/32" (2.4mm) | 3" x 3" (76 x 76mm) |
| 7x7 | 5.315 | 3/32" (2.4mm) | 2" x 2" (51 x 51mm) |
| 7x7 | 3.595 | 5/64" (2.0mm) | 3" x 3" (76 x 76mm) |
| 7x7 | 3.595 | 5/64" (2.0mm) | 2" x 2" (51 x 51mm) |
| 7x7 | 3.595 | 5/64" (2.0mm) | 1.5" x 1.5" (38 x 38mm) |
| 7x7 | 2.245 | 1/16" (1.6mm) | 3" x 3" (76 x 76mm) |
| 7x7 | 2.245 | 1/16" (1.6mm) | 2" x 2" (51 x 51mm) |
| 7x7 | 2.245 | 1/16" (1.6mm) | 1.5" x 1.5" (38 x 38mm) |
| 7x7 | 2.245 | 1/16" (1.6mm) | 1" x 1" (25.4 x 25.4mm) |
| 7x7 | 1.36 | 3/64" (1.2mm) | 2" x 2" (51 x 51mm) |
| 7x7 | 1.36 | 3/64" (1.2mm) | 1.5" x 1.5" (38 x 38mm) |
| 7x7 | 1.36 | 3/64" (1.2mm) | 1" x 1" (25.4 x 25.4mm) |
