Stainless Steel Cable Mesh For Secure Safety Net System

Model Number:	HH-CMSS
MOQ:	10 square meters
Payment Terms:	T/T,Western Union,MoneyGram
Supply Ability:	30000 square meters per 10 days

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO9001-2015

Name:

Stainless Steel Cable Mesh

Application:

Secure Safety Net System

Safety Net Width:

Less Than 1.5m

Safety Net Load Bearing Capacity:

⩾ 122 Kg/m2

Mesh Size:

20mm-50mm

Customized:

Frame System Design

Packaging Details:

rolls with plastic film, then put into wooden case

Supply Ability:

30000 square meters per 10 days

Highlight:

Stainless Steel Cable Mesh Net

Safety Stainless Steel Cable Mesh

Product Description

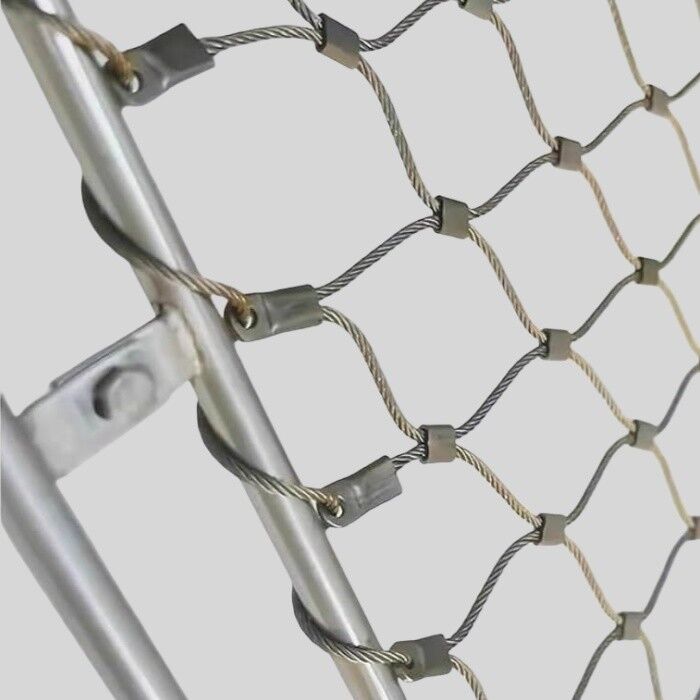

Stainless Steel Cable Mesh For Secure Safety Net System

Quick Details

Safety net width: ≤ 1.5 m
Safety net load bearing capacity: ⩾ 122 kg/m²
Safety net elevation: Complies with safety zone and obstacle limitations
Safety net setting: Prevents ejection of falling persons or objects

Product Description

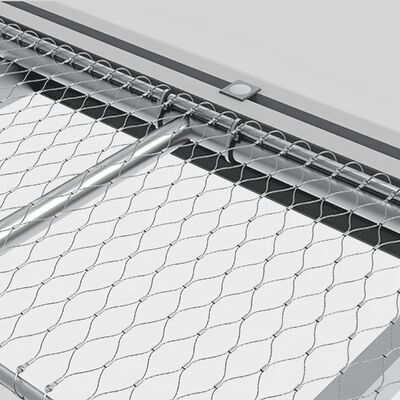

The stainless steel cable mesh safety net system is a perimeter security solution for helicopter landing decks. Constructed with high-strength steel rope mesh and frames, it effectively prevents accidents during docking, takeoff, and landing operations. This system safeguards against personnel and equipment falling off the deck, making it essential for medical rescue, fire rescue, and cargo transportation applications in offshore environments.

Structure Details

316 grade stainless steel strapping and buckles
Heliclip for securing Heliband and support frame
Heliband for additional structural support
Compatible with existing helideck perimeter structures
Includes stainless steel strap tensioning tool

Technical Specifications

Cable Diameter	Mesh Opening Size
inch \| mm	inch \| mm
1/8 \| 3.2	2×3.46 \| 51×88.3
3/32 \| 2.4	2×3.46 \| 51×88.3
5/64 \| 2.0	2.4×4.16 \| 60×104
5/64 \| 2.0	2×3.46 \| 51×88.3
5/64 \| 2.0	1-1/2×2.6 \| 38×65.8
1/16 \| 1.6	2×3.46 \| 51×88.3
1/16 \| 1.6	1-1/2×2.6 \| 38×65.8
1/16 \| 1.6	1.2×2.08 \| 30×52
1/16 \| 1.6	1×1.73 \| 25.4×44
3/64 \| 1.2	1-1/2×2.6 \| 38×65.8
3/64 \| 1.2	1.2×2.08 \| 30×52
3/64 \| 1.2	1×1.73 \| 25.4×44
3/64 \| 1.2	4/5×1.39 \| 20×34.6

Key Features

Durable 316 stainless steel construction with excellent corrosion resistance
High-strength materials ensure system stability and reliability
Modular design allows for easy component replacement and low maintenance
Exceptional tensile strength for heavy load capacity
Simple installation and removal process

Applications

Balustrading Fall protection Fencing Trellis mesh Decoration Separation Shopfitting Siding Cladding Railing refurbishment Balustrade in-fill
