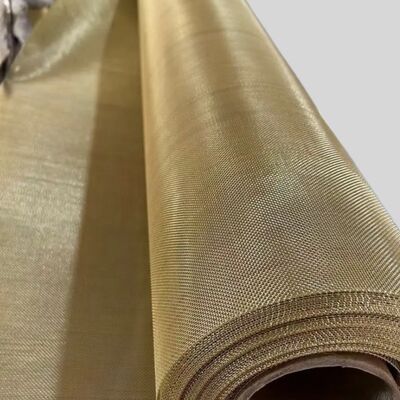

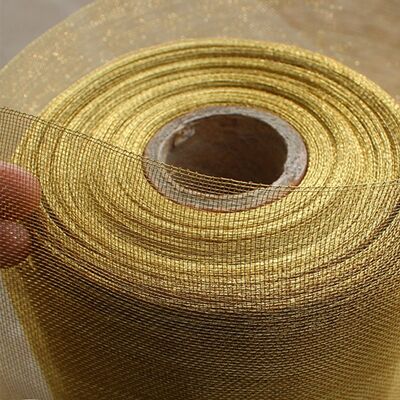

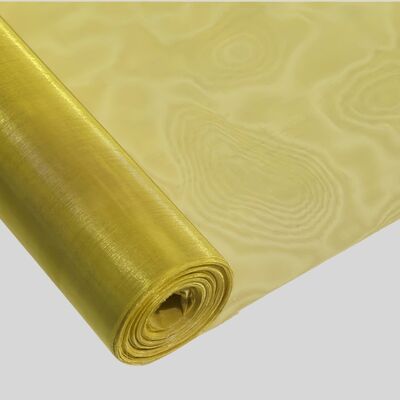

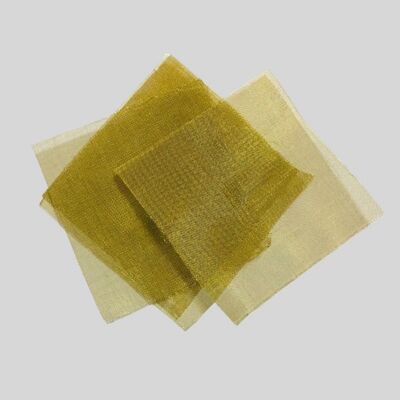

H65 Brass Wire Mesh For Shielding 0.03mm- 0.7mm Wire Diameter Range

Model Number:	HH-BWM
MOQ:	1 square meter
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	50000 square meters per 20 days

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001-2015

Name:

Brass Wire Mesh

Material:

60-70% Copper Plus 30-40% Zinc.

Mesh:

40 -250

Wire Diameter Range:

0.03mm- 0.7mm

Width Range:

Usually, 0.914-3 M

Length Range:

Usually 30 M, Up To 150 M

Packaging Details:

Waterproof Paper and Wooden Box

Supply Ability:

50000 square meters per 20 days

Highlight:

H65 Brass Wire Mesh

Brass Wire Mesh For Shielding

C270 brass woven wire mesh

Product Description

H65 Brass Wire Mesh For Shielding (0.03mm-0.7mm Wire Diameter Range)

Quick Details of Brass Wire Mesh

H65 brass wire mesh (C270 brass wire mesh) is the most extensively used brass alloy in industrial wire cloth. Comprised of 65% copper and 35% zinc with small additions of lead (0.045%) and iron (0.035%), it offers superior abrasion resistance, hardness, and tensile strength compared to copper wire cloth, along with improved corrosion resistance and lower electrical conductivity.

Description of Brass Wire Mesh

Brass wire mesh is a copper-zinc alloy that combines softness and malleability. The most common types are "270 yellow brass" (65% copper, 35% zinc) and "260 high brass" (70% copper, 30% zinc). While its corrosion resistance is not as strong as bronze, brass wire mesh offers unique advantages for industrial applications.

Features & Applications

Superior abrasion resistance and tensile strength compared to copper
60-70% copper content with 30-40% zinc
Easily cut with hand tools
Compatible with lead or silver solder
Zinc content enhances wear resistance and tensile strength
Golden yellow color makes it appealing for architectural and decorative uses
Commonly used in filtration, separation, and industrial applications

Technical Specifications

Mesh	Wire Diameter (Inch)	Wire Diameter (MM)	Aperture/Opening (Inch)	Aperture/Opening (MM)	% Open Area
40X40	.010	.254	.0150	.38	36.0
50X50	.009	.229	.0110	.28	30.3
50X50	.008	.203	.0120	.31	36.0
60X60	.0075	.191	.0092	.23	30.5
60X60	.007	.178	.0097	.25	33.9
70X70	.0065	.165	.0078	.20	29.8
80X80	.0065	.165	.0060	.15	23.0
80X80	.0055	.140	.0070	.18	31.4
90X90	.005	.127	.0061	.16	30.1
100X100	.0045	.114	.0055	.14	30.3
100X100	.004	.102	.0060	.15	36.0
100X100	.0035	.089	.0065	.17	42.3
110X110	.0040	.1016	.0051	.1295	30.7
120X120	.0037	.0940	.0046	.1168	30.7
150X150	.0026	.0660	.0041	.1041	37.4
160X160	.0025	.0635	.0038	.0965	36.4
180X180	.0023	.0584	.0033	.0838	34.7
200X200	.0021	.0533	.0029	.0737	33.6
250X250	.0016	.0406	.0024	.0610	36.0
